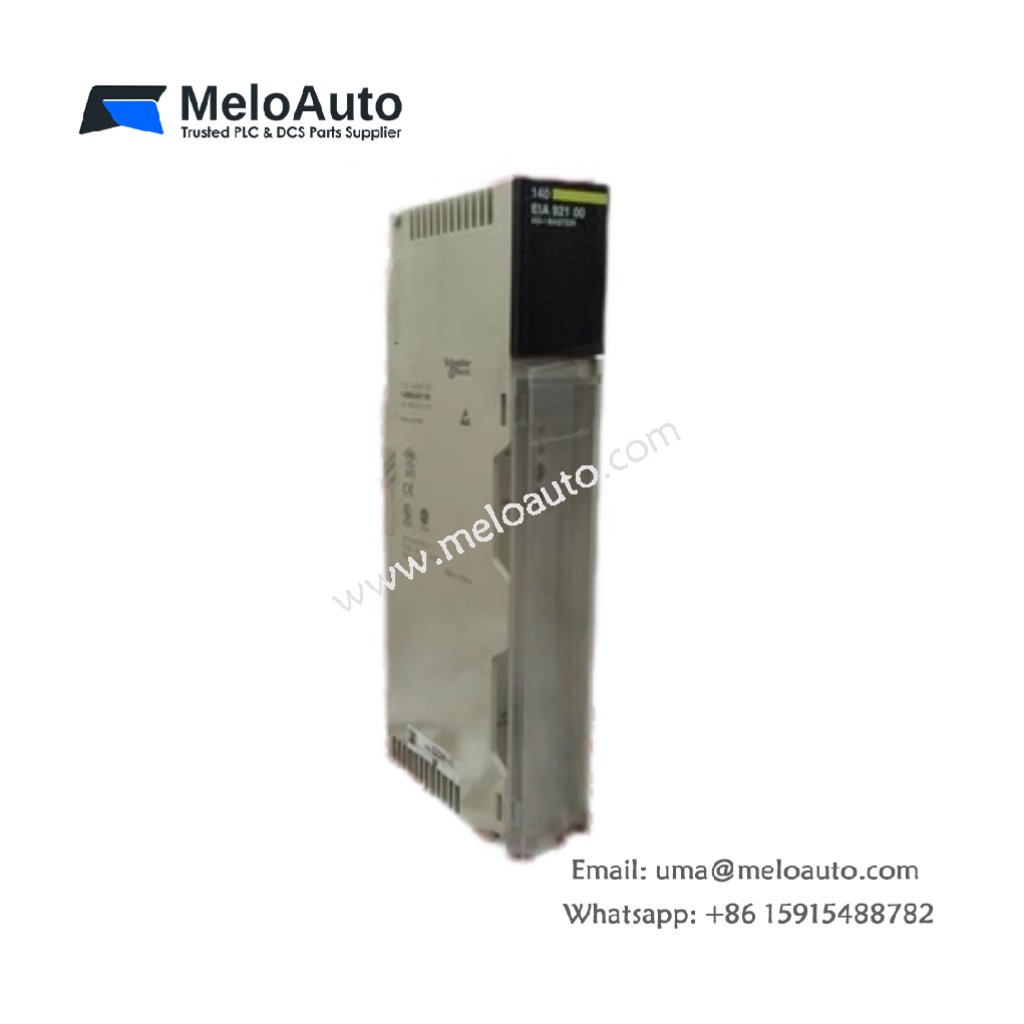

Schneider 140EIA92100 AS-Interface Master Module – Modicon Quantum Series

The Schneider 140EIA92100 is a high-performance AS-Interface Master Module from the Modicon Quantum series. Designed for efficient control, this module manages up to 124 discrete inputs and 124 discrete outputs. Additionally, it supports connections to 31 server devices, making it a robust solution for advanced industrial control processes.

Key Features and Specifications

• Model Number: Schneider 140EIA92100
• Product Type: AS-Interface Master Module
• Product Line: Modicon Quantum
• Part Number: 140EIA92100
• EAN: 3595860031389
• Weight: 2.00 lbs (0.91 kg)
• Compatible Cabling System: AS-Interface System
• Addressing Option: Standard Option
• Maximum Cycle Time: 5 ms
• Discrete Output Number: 124
• Discrete Input Number: 124
• Number of Server Devices: Up to 31 Devices
• Operating Temperature Range: 0°C to 60°C
• Storage Temperature Range: -40°C to 85°C
• Power Supply: Powered through AS-Interface Line
• Mounting Type: Rack Mountable
• Supply Voltage: 30V DC
• Module Type: AS-Interface Master Module
• Transmission Rate: 167 kbit/s
• IP Rating: IP20
• CE Marking: Yes

Product Overview

The Schneider 140EIA92100 AS-Interface Master Module is built for seamless integration within the Modicon Quantum platform. Its 124 discrete inputs and 124 discrete outputs enable the module to manage a large number of devices simultaneously. Additionally, the 140EIA92100 supports up to 31 server devices, expanding its capabilities for larger control networks.

Designed to operate efficiently in a wide temperature range, the module functions effectively between 0°C and 60°C during operation, and it can withstand temperatures between -40°C and 85°C during storage. This wide tolerance ensures that the module performs well in diverse environments, whether in controlled conditions or harsher industrial settings.

Moreover, the module uses a 30V DC supply voltage and provides 167 kbit/s transmission speed, ensuring fast and reliable communication within your control system. It is easily mounted using a rack-mountable design, making installation quick and straightforward. Furthermore, the IP20 rating protects the module from dust and accidental contact, ensuring durability in various applications.

Applications

The Schneider 140EIA92100 AS-Interface Master Module is ideal for industries that rely on automation systems with a large number of I/O points. It is particularly suitable for manufacturing lines, process automation, and any application where communication with multiple devices is essential. Its flexibility in handling up to 31 server devices and large numbers of inputs/outputs makes it a valuable asset for complex control systems.

Product Details

• Brand: Schneider Electric
• Model: 140EIA92100
• Category: AS-Interface Master Module
• Series: Modicon Quantum
