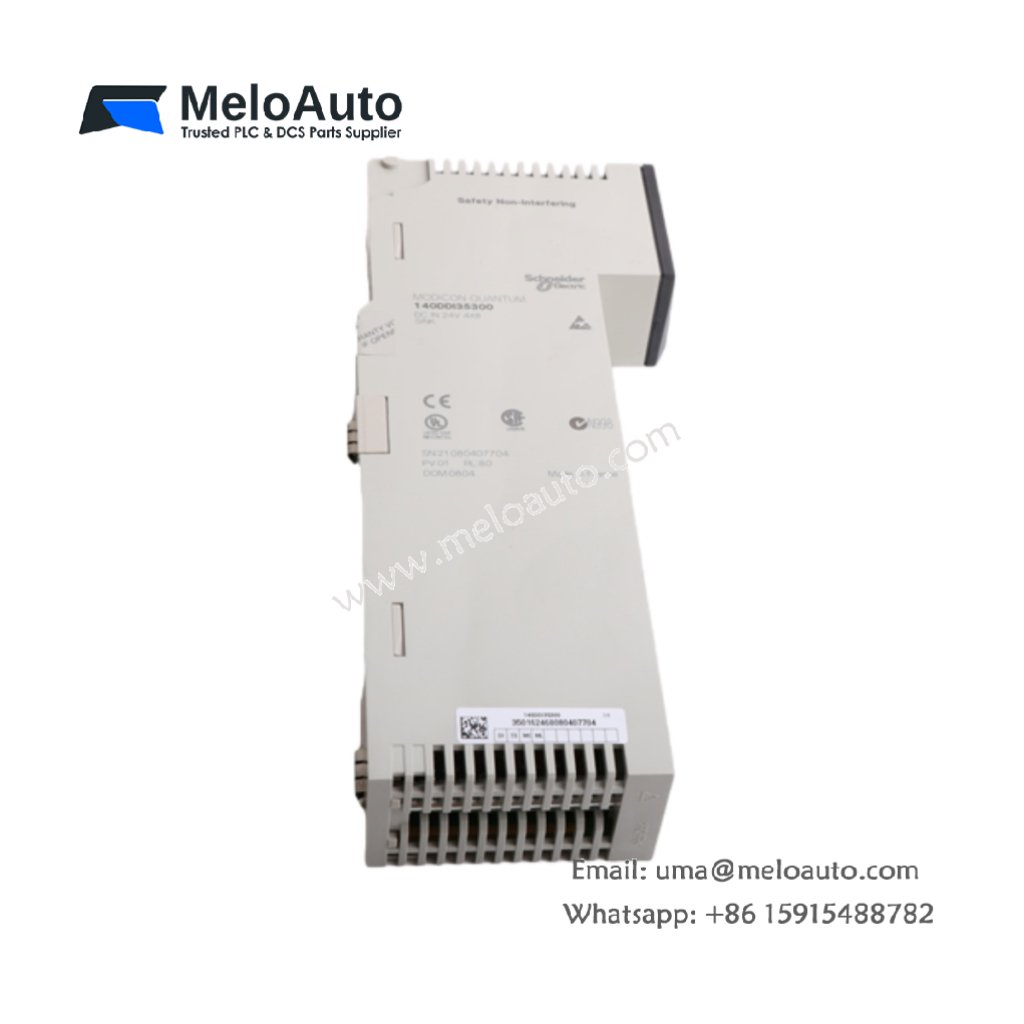

Schneider 140DDI35300 Discrete Input Module

Overview

The Schneider 140DDI35300 is a high-performance discrete input module from the Modicon Quantum series. It provides 32 discrete input channels that work with a 24V DC input voltage. This versatility makes it ideal for various industrial automation systems. Its reliable design ensures efficient data acquisition and smooth integration into complex control systems.

Key Features

32 Input Channels: The 140DDI35300 offers 32 channels, supporting multiple inputs to facilitate effective system control.
Wide Voltage Range: It operates with a 24V DC input and accepts a voltage range from 19.2V to 30V DC, providing flexibility in different industrial applications.
Positive Sink Input Logic: This module uses positive sink logic, allowing it to communicate seamlessly with other components and devices.
Efficient Addressing: The module requires only 2 input words for addressing. It organizes the 32 channels into 4 groups, simplifying the integration process.
High Input Impedance: With an input impedance of 2500 Ohms, it reduces signal degradation, ensuring accurate measurements.
Wide Temperature Range: The 140DDI35300 operates between 0°C and 60°C and can be stored in temperatures ranging from -40°C to 85°C, making it suitable for various environments.
Humidity Resistance: It withstands up to 95% relative humidity without condensation, ensuring stable performance in high-humidity environments.
Rack-Mountable Design: This module features a rack-mountable format, simplifying installation and system integration.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Model Number	140DDI35300
Product Line	Modicon Quantum
Number of Channels	32
Input Type	Discrete Inputs
Discrete Input Voltage	24V DC
Input Voltage Range	19.2V to 30V DC
Input Logic	Positive (Sink)
Addressing Requirement	2 Input Words
Input Groups	4
Input Impedance	2500 Ohms
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Mounting Type	Rack Mountable
Maximum Humidity	95% Max (Without Condensation)
Required Bus Current	330 mA
CE Marking	Yes
Module Type	Discrete Input Module

Product Description

The Schneider 140DDI35300 is a highly reliable discrete input module designed for the Modicon Quantum series. It provides 32 input channels, all operating with a 24V DC input. This enables seamless integration with different industrial control systems.

You can connect a wide variety of devices to this module. It accepts an input voltage ranging from 19.2V to 30V DC, ensuring adaptability to various system configurations. Additionally, its positive sink input logic facilitates smooth communication with other control devices, making integration effortless.

The 140DDI35300 requires just 2 input words for addressing. The module organizes the input channels into 4 groups, optimizing communication and making the setup process more efficient. With an input impedance of 2500 Ohms, it ensures accurate signal transmission by minimizing loss.

This module can operate in environments with temperatures ranging from 0°C to 60°C, and you can store it between -40°C and 85°C, allowing for flexibility in different industrial conditions. Moreover, the 140DDI35300 performs reliably in environments with up to 95% humidity without condensation.

The rack-mountable design makes installation straightforward. It requires a 330 mA bus current for operation and meets CE safety standards, ensuring that the module complies with international safety regulations.

Applications

Industrial Automation: The 140DDI35300 is ideal for use in Modicon Quantum systems, handling complex input control tasks efficiently.
Harsh Environments: It works effectively in environments with high humidity, where other devices may fail.
Flexible System Integration: Its 32 channels and 24V DC input provide the flexibility needed for diverse industrial control systems.
