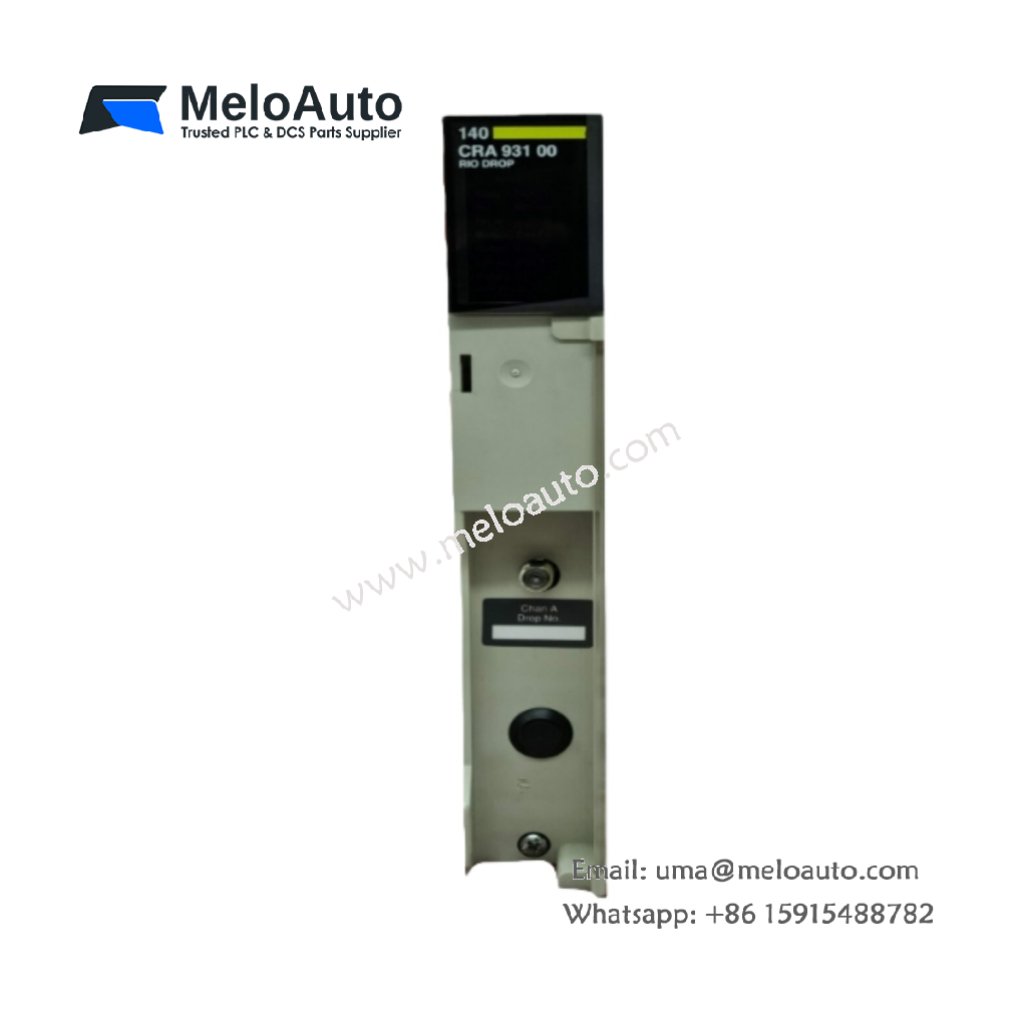

Schneider 140CRA93100 | RIO Drop Adaptor

Overview of the Schneider 140CRA93100 RIO Drop Adaptor

The Schneider 140CRA93100 is a high-performance RIO drop adaptor designed for the Modicon Quantum series. This module supports up to 27 I/O expansion modules, significantly expanding input and output capabilities within industrial automation systems. It uses 75 Ohm coaxial cables, ensuring stable and reliable data transmission with a maximum transmission rate of 1544 Mbit/s.

This module performs reliably in environments with an operating temperature range from 0°C to 60°C and offers robust performance even in harsher conditions with its storage temperature range of -40°C to 85°C. The 140CRA93100 is engineered with 500V DC isolation for coaxial center and ground to ensure safe and secure connections.

Key Features and Specifications

Description

The Schneider 140CRA93100 is an essential RIO drop adaptor for the Modicon Quantum series, enabling seamless expansion and integration. It accommodates up to 27 I/O expansion modules, offering scalable solutions for complex automation systems. This device supports 75 Ohm coaxial cables, providing high-speed data transmission at a rate of 1544 Mbit/s, ideal for demanding industrial applications.

Built for durability, the 140CRA93100 operates within an ambient temperature range of 0°C to 60°C, ensuring stable performance in various environments. Furthermore, it can handle extreme storage temperatures, ranging from -40°C to 85°C, enhancing its reliability in diverse conditions. The module also provides 500V DC isolation for coaxial center and ground connections, ensuring safe integration into your system.

The module’s power dissipation is efficient at 3W per channel, while the bus current requirement is 600 mA per channel, making it energy-efficient. It is also designed with standard module format for easy integration into existing setups. The 140CRA93100 supports non-condensing relative humidity of up to 95%, ensuring reliable operation in a variety of industrial environments. Additionally, this lightweight module weighs just 0.91 kg (2.00 lbs), allowing for simple and efficient installation.

Key Benefits

• Expandable I/O Capacity: Supports up to 27 I/O expansion modules for increased input/output functionality.
• Fast Data Transmission: Achieves a transmission rate of 1544 Mbit/s, ensuring rapid and efficient communication.
• Wide Temperature Range: Operates within an operating temperature range of 0°C to 60°C and withstands storage temperatures from -40°C to 85°C.
• Electrical Safety: Provides 500V DC isolation for secure coaxial connections.
• Power-Efficient: Consumes only 3W per channel and requires 600 mA of bus current, optimizing energy usage.
• Humidity Resilience: Functions reliably in non-condensing relative humidity levels of up to 95%.
