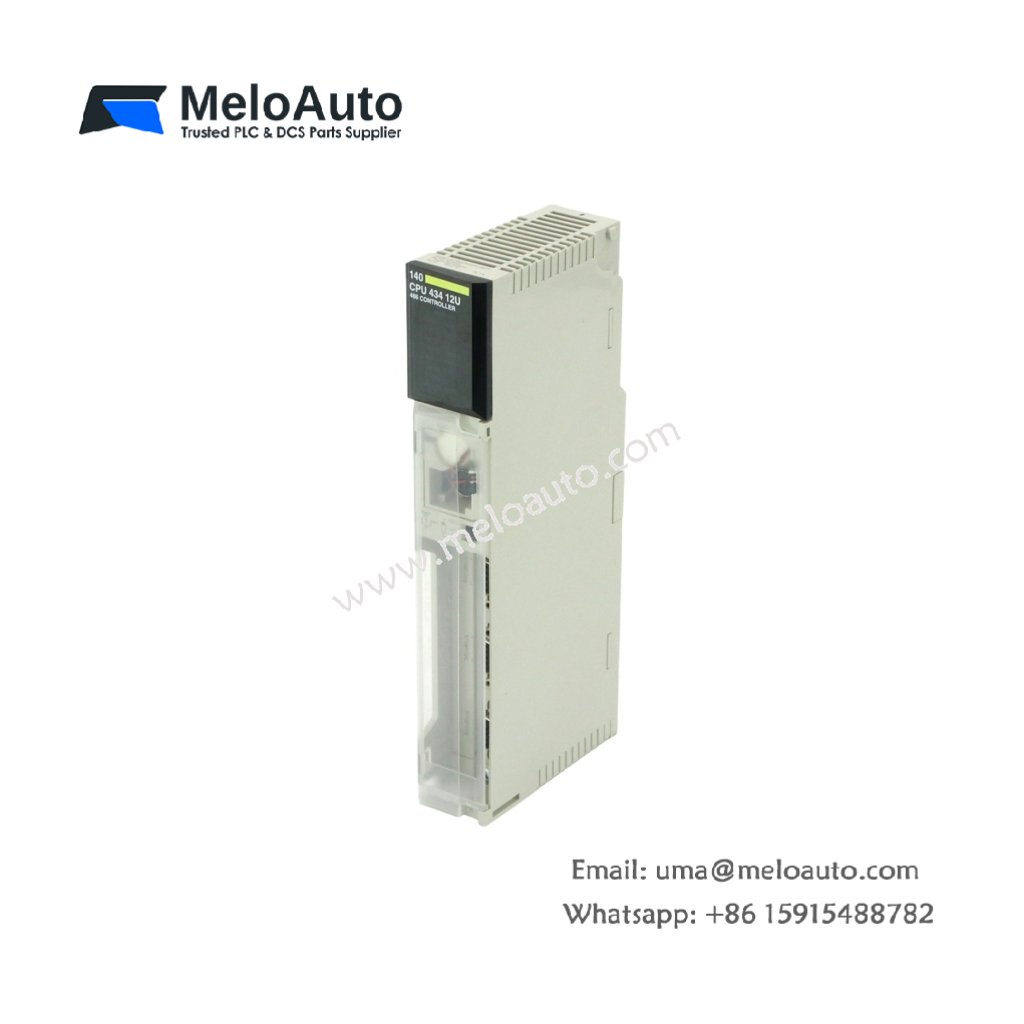

Schneider 140CPU43412U Unity Processor

Core Processing Capabilities

The Schneider 140CPU43412U executes Unity Pro application code for large automation systems. This Unity processor manages complex logic, motion control, and process loops simultaneously. It handles up to 64 Kwords of user data and program memory. Consequently, the module supports high-performance applications like material handling and water treatment.

Physical Dimensions and Module Construction

This Unity processor measures 162 mm in total height. Its width reaches 33 mm for a single-slot Quantum form factor. The module depth stands at 135 mm including the front panel. You will find 1,245 discrete components on this multi-layer PCB. These include a 32-bit CPU, memory ICs, and communication controllers. The Schneider 140CPU43412U weighs approximately 480 grams for secure rack mounting.

Processor and Memory Configuration

The Schneider 140CPU43412U houses a 32-bit PowerPC processor running at 266 MHz. This CPU executes Unity Pro applications with exceptional speed and precision. The processor contains 8 MB of flash memory for firmware and program storage. It also includes 8 MB of SRAM for runtime data and variables. A replaceable lithium battery preserves the SRAM contents during power outages. This battery provides a typical retention period of one year.

Memory Capacity and Application Support

This Unity processor stores up to 8 MB of user application code. It handles 64 Kwords of discrete input and output data. The module supports 64 Kwords of analog I/O data for process applications. It also manages 32 Kwords of internal data storage registers. The processor handles up to 8,192 timers and 8,192 counters simultaneously. Advanced users can store up to 32 MB of additional data on external memory cards.

Communication Ports and Interfaces

The Schneider 140CPU43412U offers two built-in Modbus ports for serial networking. Port 1 provides RS-232 for programming and local device connections. Port 2 provides RS-485 for multi-drop Modbus networks. The module also includes one USB port for fast program uploads and downloads. A dedicated Ethernet port supports Modbus TCP/IP for high-speed networking.

I/O Capacity and Expansion Support

This Unity processor supports up to 64 local I/O modules in the main rack. It also manages up to 64 remote drops via RIO or S908 networks. The module handles a maximum of 64,000 digital I/O points system-wide. It also manages up to 4,000 analog I/O channels for process control. The processor supports hot-standby redundancy for critical applications.

Real-Time Clock and Event Management

The Schneider 140CPU43412U includes a battery-backed real-time clock. This clock enables time-stamped alarm and event logging functions. The processor supports up to 8,192 event messages in its history buffer. It also manages scheduled tasks with millisecond resolution. The clock accuracy reaches ±2 seconds per day at 25°C ambient.

Status Indicators and Diagnostic Features

This Unity processor provides 8 LED status indicators on the front panel. A green run LED illuminates when the processor executes the user program. A yellow stop LED shows when the module remains in configuration mode. Red LEDs indicate memory, communication, and system fault conditions. The module also includes a hardware watchdog timer for fail-safe supervision.

Energy Storage and Power Requirements

The Schneider 140CPU43412U draws 550 mA from a 5 V DC logic supply. It also requires 5 mA from a 24 V DC field supply for status circuits. The board incorporates eight 100 µF tantalum capacitors for power decoupling. Total stored energy reaches approximately 0.07 joules at nominal voltage. The module dissipates 3.1 W of heat during normal operation.

Parameter	Specification
Model	140CPU43412U
Brand	Schneider Electric
Category	Unity Processor
Height x Width x Depth	162 x 33 x 135 mm
Weight	480 grams
Component Count	1,245
Processor type	32-bit PowerPC at 266 MHz
Flash memory	8 MB
SRAM with battery	8 MB (1-year retention)
User program storage	8 MB maximum
Discrete I/O capacity	64 Kwords
Analog I/O capacity	64 Kwords
Internal registers	32 Kwords
Timer/counter capacity	8,192 each
External memory support	32 MB (optional card)
Modbus RS-232 port	1 (programming)
Modbus RS-485 port	1 (multi-drop)
USB port	1 (high-speed)
Ethernet port	1 (Modbus TCP/IP)
Local I/O modules	64 maximum
Remote I/O drops	64 maximum
Hot-standby redundancy	Yes (supported)
Real-time clock	Yes (battery-backed)
Event history buffer	8,192 messages
Clock accuracy	±2 sec/day at 25°C
Status LEDs	8 (run, stop, faults)
Watchdog timer	Yes (hardware)
Logic supply	550 mA at 5 V DC
Field supply	5 mA at 24 V DC
Decoupling capacitors	8 x 100 µF tantalum
Total stored energy	0.07 Joules
Power dissipation	3.1 W
Operating temperature	0°C to +60°C

Installation and Programming Notes

You must install this processor in a Quantum rack local slot. Always replace the lithium battery during scheduled maintenance every 10 months. Then, write your application using Schneider EcoStruxure Control Expert software. The processor requires a USB cable for initial program download. Regular battery replacement prevents data loss during unexpected power outages.
