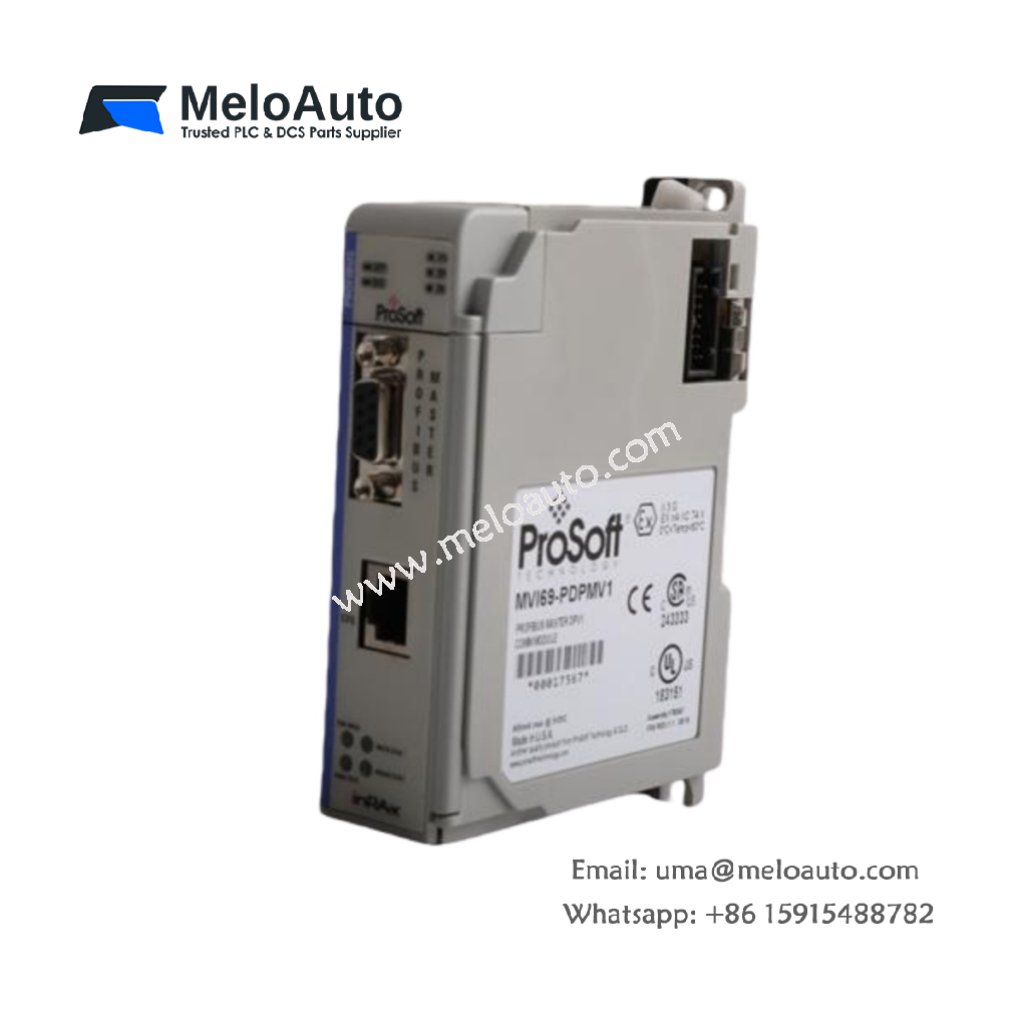

ProSoft MVI69-PDPMV1 ProfiBus DP V1 Master Network Interface Module

Overview

The ProSoft MVI69-PDPMV1 is a high-performance Profibus DP V1 Master Network Interface Module designed to integrate seamlessly with CompactLogix and MicroLogix 1500 LRP controllers. Developed by ProSoft Technology, this module facilitates reliable communication in industrial networks. It supports up to 125 slave devices, offering fast data transfer capabilities with up to 1536 bytes of input and output data. The RS-485 communication port supports Profibus V1 protocol, providing robust performance.

Key Features

• Profibus DP-V1 Compatibility: The module supports both master and slave functions for Profibus networks.
• Reliable Communication: It uses a DB-9F optically isolated RS-485 port and can handle up to 12 Mbps transmission speeds.
• Data Transfer Capacity: The module can process 1536 bytes of input and 1536 bytes of output data, ensuring efficient communication.
• LED Indicators: Clear indicators show the status of the module, power, serial port activity, and any errors.
• Wide Compatibility: It works with CompactLogix and MicroLogix 1500 LRP controllers, offering flexibility for various industrial applications.

Technical Specifications

Product Description

The ProSoft MVI69-PDPMV1 module is a Profibus DP-V1 Master communication module that facilitates seamless integration with CompactLogix and MicroLogix 1500 LRP controllers. Specifically designed for industrial automation systems, it allows easy communication between Profibus devices and controllers. This module supports communication with up to 125 slave devices, with the capacity to handle 1536 bytes of input and output data.

For connection, the module provides one DB-9F optically isolated RS-485 port for Profibus communication and one configuration port for easy setup. It supports Profibus transmission speeds of up to 12 Mbps, ensuring fast and reliable data transfer across your network. The module’s LED indicators give you real-time updates on various statuses, including module power, application activity, and error notifications.

Moreover, the MVI69-PDPMV1 is highly compatible with CompactLogix and MicroLogix 1500 LRP controllers, and it can be directly integrated into 1769 CompactLogix backplanes. This makes it a versatile choice for both new and existing installations. Additionally, the module supports Ladder Logic for data transfer between the processor and the module.

For installation, place the module in a single slot in the CompactLogix backplane. It requires 800 mA @ 5 V DC from the backplane power supply. If you are using it with the 1769-L43 or 1769-L45 processors, install it within the first two slots of the rack.

The MVI69-PDPMV1 module is certified with industry-standard safety approvals such as CE, Ex (ATEX), C/UL Class 1 Division 2, and more. With its robust design and reliable performance, it operates in a temperature range of 0°C to 60°C and can endure storage temperatures between -40°C and 85°C.

Applications

The ProSoft MVI69-PDPMV1 is ideal for the following applications:

• Industrial Automation Systems: Enable communication between Profibus devices and CompactLogix or MicroLogix controllers.
• Manufacturing: Facilitate seamless integration in production environments requiring fast, reliable data transfer.
• Oil & Gas: Control and monitor critical systems with high-speed data transmission.
• Power Generation and Water Treatment: Interconnect various devices to improve efficiency in process control.
• Process Control Systems: Use with Profibus networks in industries such as chemical processing and pharmaceuticals.

Installation and Configuration

To install the MVI69-PDPMV1, insert the module into a single-slot 1769 CompactLogix backplane. It will be recognized as an input/output module by the controller. Make sure the module draws 800 mA @ 5 V DC from the backplane power supply. For 1769-L43 or 1769-L45 processors, install the module in the first two slots of the rack.

For configuration, use the CFG port and standard RS-485 cables to connect the module to the Profibus network. The module supports Ladder Logic for communication setup and data transfer between the controller and the module.
