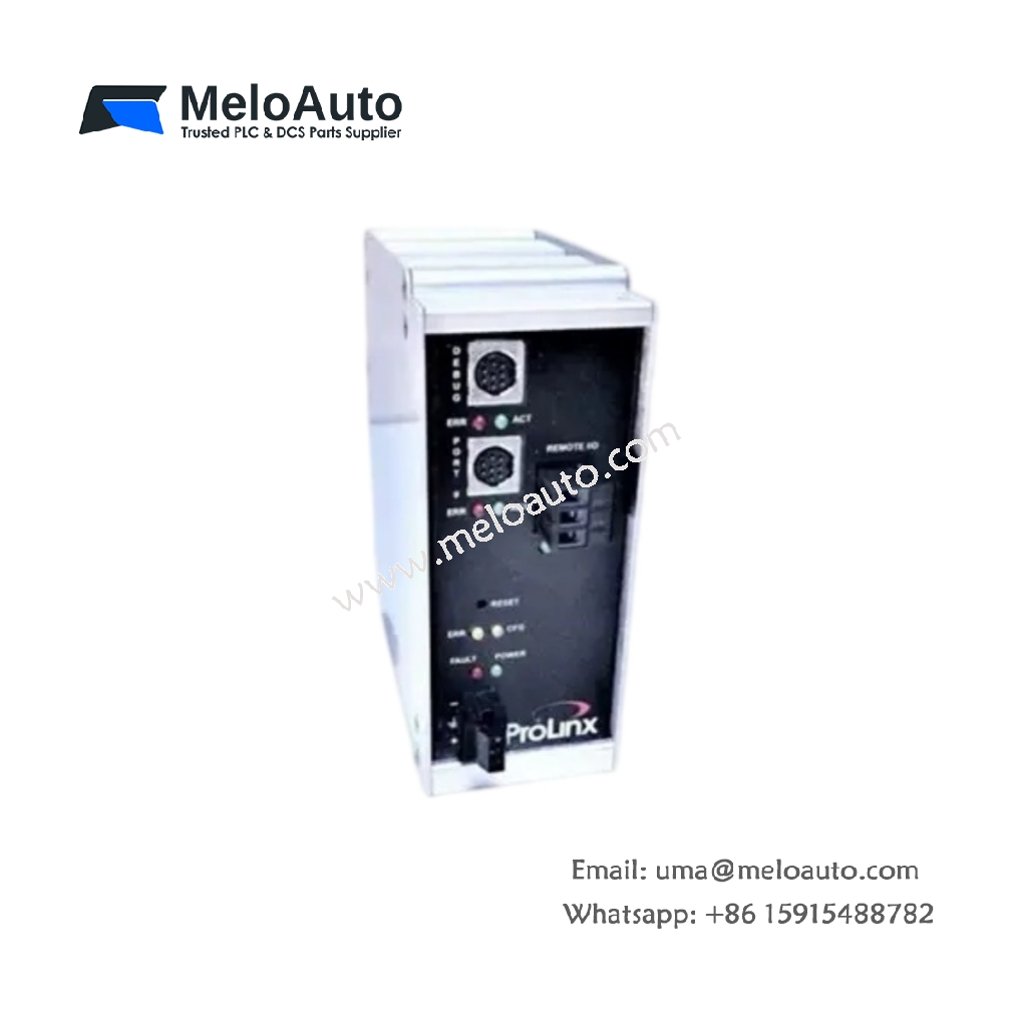

ProSoft 5601-RIO-MCM ProLinx Remote I/O Adapter

Remote I/O Connectivity with the 5601-RIO-MCM

The 5601-RIO-MCM connects remote I/O racks to multiple industrial networks through a single gateway platform. This ProLinx adapter translates data between legacy remote I/O protocols and modern control systems. System integrators therefore apply it when bridging older racks to current PLC platforms. Its DIN-rail housing mounts inside standard enclosures without extra brackets.

Detailed Technical Parameters

Protocol flexibility defines the 5601-RIO-MCM, because the gateway module supports multiple communication drivers in one chassis. The processor board handles data mapping between the remote I/O side and the network side. Meanwhile, the serial ports accept standard cable connections. Review the essential specifications in the table below.

Parameter	Specification
Function	Remote I/O protocol adapter and gateway
Network support	Multiple industrial communication protocols
Serial ports	Multiple configurable communication ports
Dimensions (W × H × D)	90 × 140 × 115 mm
Weight	Approximately 0.9 kg
Interface	Serial ports plus remote I/O connection
Component count	Processor board plus communication interface modules
Energy storage	Local decoupling capacitor array
Operating temperature	0 °C to 55 °C

Integration into Control Systems

The 5601-RIO-MCM snaps onto a DIN rail and connects through standard serial cables. Commissioning engineers configure protocol mapping through the setup software. Consequently, data links return to service quickly after module replacement. The gateway translates protocol frames within fixed timing windows. Furthermore, the metal housing resists interference from drives and power equipment nearby.

Why Plants Choose This Adapter

Many facilities still operate legacy remote I/O racks for their proven field reliability. Hence, the 5601-RIO-MCM serves as a dependable spare for keeping data links online. Its standardized DIN-rail format simplifies stock management across multiple sites. In addition, the multi-protocol design reduces spare-part inventory requirements. This adapter keeps legacy racks connected and production schedules on track.
