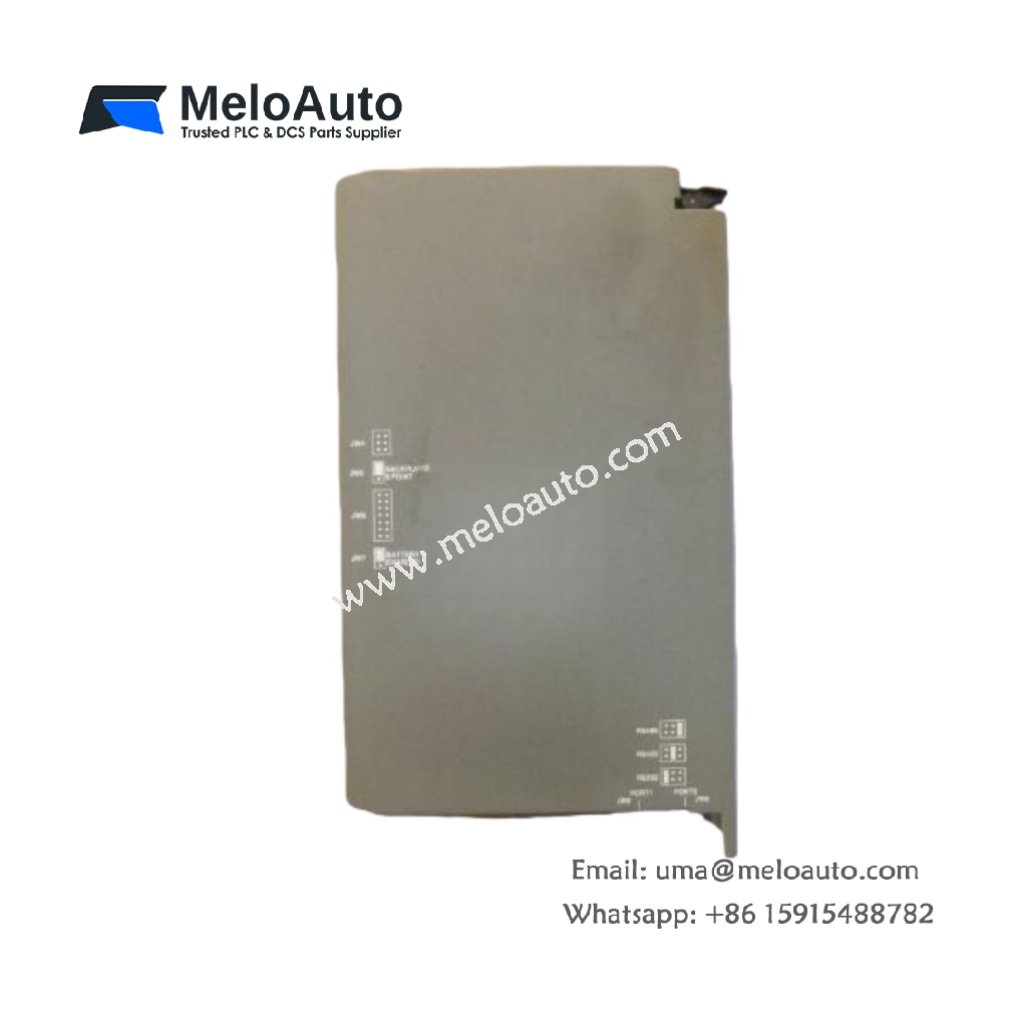

ProSoft 3100-MCM Modbus Communication Module

Overview

The ProSoft 3100-MCM module serves as a versatile interface, allowing seamless communication between Rockwell Automation PLC processors and Modbus networks. This module supports both Modbus RTU and Modbus TCP/IP protocols, offering flexibility for various industrial automation applications. It enables efficient data exchange between Modbus-compatible devices and Rockwell PLCs, making it a key component for process control systems across industries.

Key Features

Dual Protocol Support: Compatible with both Modbus RTU and Modbus TCP/IP, ensuring versatile connectivity with different Modbus devices.
Flexible Functionality: Supports Modbus Master and Slave configurations for versatile system integration.
Easy Installation: The module is a single-slot, backplane-compatible solution, ensuring quick and hassle-free installation into existing systems.
High-Speed Data Transfer: Achieves data transfer rates of up to 115.2 kbps, enabling efficient communication for large data sets.
Industrial-Grade Durability: Designed for reliable performance in harsh environments with a wide operating temperature range.
Broad Device Compatibility: Supports up to 32 Modbus devices, allowing extensive network integration.

Technical Specifications

Specification	ProSoft 3100-MCM
Manufacturer	ProSoft Technology
Product Type	Modbus Communication Module
Model Number	3100-MCM
Power Supply Voltage	10-30 VDC
Power Consumption	1.6W @ 24V DC
Operating Temperature	-40°C to +70°C (−40°F to 158°F)
Storage Temperature	-40°C to +85°C (−40°F to 185°F)
Relative Humidity	5% to 95% (non-condensing)
Communication Protocols	Modbus RTU, Modbus ASCII, Modbus TCP/IP
Max Number of Connections	Up to 32 Modbus devices
Data Rate	Up to 115.2 kbps
Dimensions	4.5 cm x 9.5 cm x 11.5 cm
Weight	0.35 kg (0.77 lbs)

Applications

The ProSoft 3100-MCM module is suitable for a wide range of industrial applications, including:

Manufacturing Automation: Enables real-time communication between PLCs and Modbus devices such as sensors, actuators, and remote I/O systems.
Oil and Gas: Facilitates the integration of remote devices in pipeline monitoring and control systems.
Power Generation: Supports Modbus communication for the control of power distribution equipment.
Water Treatment: Enhances control and monitoring of water treatment systems by integrating various Modbus-enabled devices.
Food Processing: Improves automation in food processing plants by facilitating communication between PLCs and Modbus-based systems.

Installation Guidelines

To ensure proper installation of the ProSoft 3100-MCM:

Power Off the System: Disconnect the power supply before installing or removing the module.
Install in Available Slot: Insert the module into the single available slot on the backplane of your PLC system.
Check Connections: Ensure all wiring connections are secure before powering up the system.
Follow Safety Protocols: Always adhere to the manufacturer’s guidelines for installation and local safety regulations.
