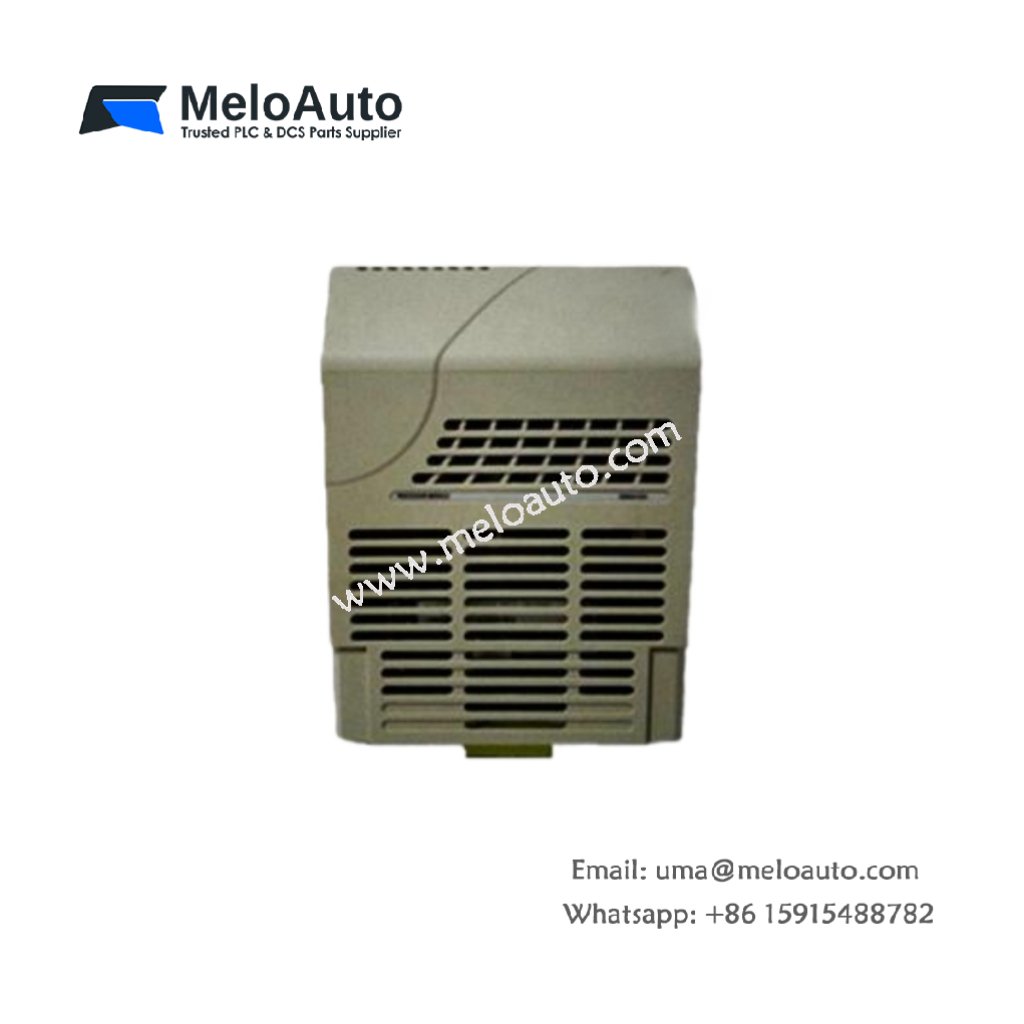

Ovation 5A22404G01 Termination Assembly

The 5A22404G01 is a reliable Termination Assembly designed specifically for Emerson’s Ovation Distributed Control System (DCS). It provides secure connections for wire and signal termination, ensuring consistent communication and system stability. This module is essential for industrial automation, enabling seamless integration of various Ovation DCS components.

Key Features and Specifications

The 5A22404G01 guarantees long-term durability and high performance in challenging industrial environments. It simplifies installation and ensures optimal functionality. Below are the key specifications for the module:

Module Type: Termination Assembly
Manufacturer: Emerson
System Compatibility: Ovation Distributed Control System (DCS)
Dimensions: 10.5 inches x 6.5 inches x 3.5 inches (L x W x H)
Weight: 1.2 kg
Power Supply: Powered directly by the Ovation DCS system (no external power required)
Environmental Rating: IP20 (dust protected)
Operating Temperature: -40°C to +70°C
Humidity: 5% to 95% (non-condensing)
Vibration Resistance: 5g, 10 Hz to 500 Hz
Shock Resistance: 10g, 20 milliseconds
Mounting Type: Rack-mountable or panel-mountable

Detailed Technical Specifications

Parameter	Specification
Module Type	Termination Assembly
Manufacturer	Emerson
System Compatibility	Ovation DCS
Dimensions	10.5 inches x 6.5 inches x 3.5 inches
Weight	1.2 kg
Power Supply	Powered directly by Ovation DCS
Operating Temperature	-40°C to +70°C
Humidity	5% to 95% (non-condensing)
Vibration Resistance	5g, 10 Hz to 500 Hz
Shock Resistance	10g, 20 milliseconds
Mounting Type	Rack-mountable or panel-mountable

Applications and Use Cases

The 5A22404G01 Termination Assembly plays a critical role in ensuring reliable and stable system operation. It is essential for various industrial automation applications, including:

Signal Termination: The assembly securely connects and terminates signals between modules in the Ovation DCS, ensuring reliable communication.
Industrial Automation: It enhances data transmission stability and supports seamless integration between control modules and field devices.
Power Generation: Widely used in power plants to enable smooth communication between control modules and monitoring devices, ensuring uninterrupted operation.
Process Control: The 5A22404G01 is perfect for industries like water treatment, where stable and reliable control systems are critical.

Additionally, the 5A22404G01 offers a robust design that ensures the continued reliability of mission-critical applications in harsh industrial environments.

Where to Purchase

You can easily obtain the 5A22404G01 Termination Assembly from Emerson Ovation DCS authorized distributors. This component is essential for achieving reliable communication and ensuring the longevity of Ovation DCS-based systems.
