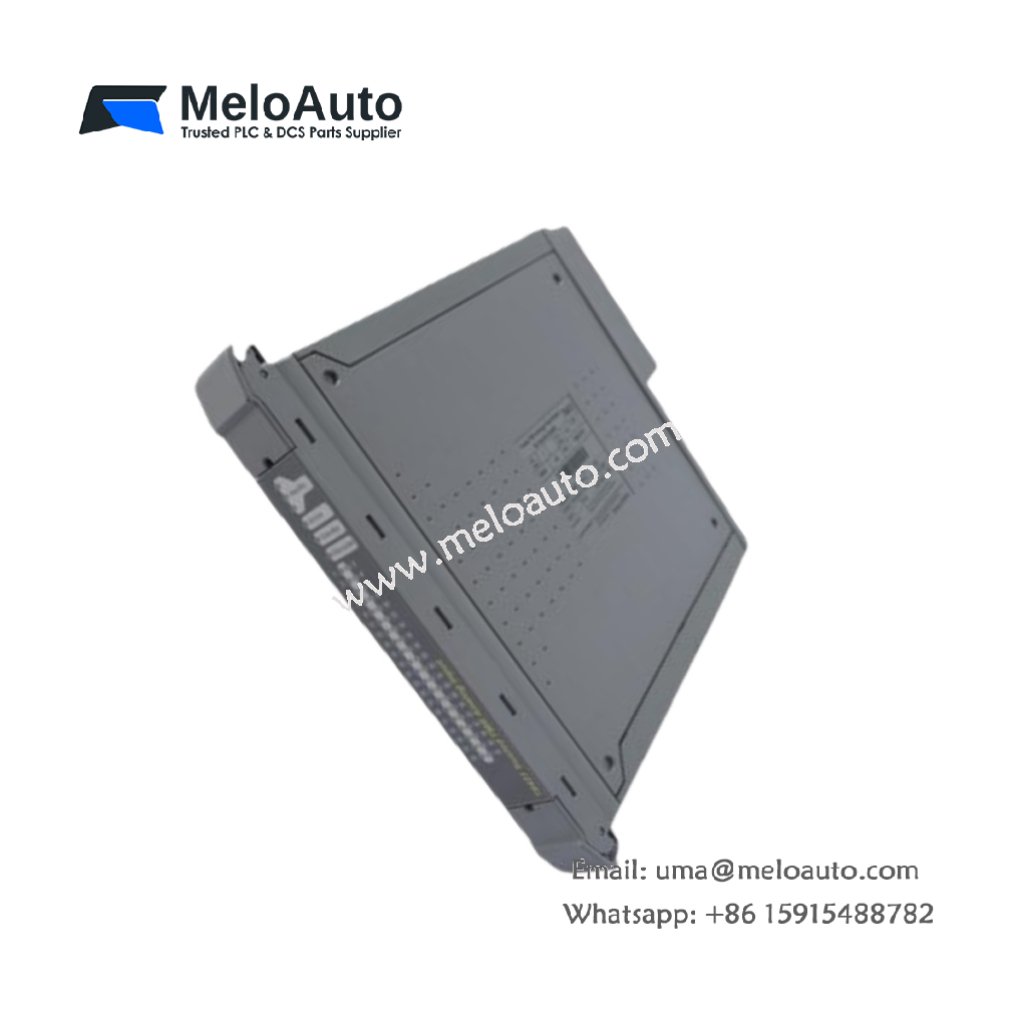

ICS Triplex TC31002 Triple-Redundant Network Switch

Overview

The ICS Triplex TC31002 strengthens critical network infrastructures because it uses three fully independent switching fabrics with dedicated management processors. Every fabric delivers isolated routing and switching capability, and the module maintains traffic flow even when one fabric encounters a fault. Moreover, the switch supports both Layer-2 and Layer-3 functions, so engineers build flexible architectures that combine VLAN segmentation with advanced routing protocols.

High-Availability Architecture

The TC31002 improves network resilience since each switching fabric includes its own power feed and processor. This design eliminates single points of failure and ensures continuous packet delivery in high-demand industrial environments. Additionally, the switch handles QoS and traffic-shaping functions, which help engineers prioritize safety-critical communication paths.

Technical Specifications

Dimensions and Weight

• Length: 260 mm
• Width: 45 mm
• Height: 300 mm
• Weight: 1.2 kg
• Country of Origin: United States

Performance and Reliability

The TC31002 delivers stable throughput because each fabric processes traffic independently while synchronizing routing tables across the chassis. It increases operational security since the management processor monitors health metrics continuously and reports status through SNMP. Furthermore, the switch improves uptime because its triple-redundant structure eliminates service interruptions during fabric or power feed failures.

Application Areas

Engineers deploy the TC31002 in safety-critical automation networks where continuous communication is mandatory. It fits emergency shutdown architectures, turbine control platforms, refinery network backbones, and any installation requiring deterministic data paths with no tolerance for downtime.

Integration and Configuration

The TC31002 integrates easily into ICS Triplex safety systems, and technicians configure it through a secured web interface or SNMP suite. They segment networks using VLANs, assign QoS levels to safety controllers, and route traffic through OSPF or BGP when building multi-layer industrial networks. Additionally, the switch supports seamless scaling because each fabric handles large numbers of Layer-2 and Layer-3 entries.

Summary

The ICS Triplex TC31002 provides a triple-redundant, high-availability switching platform built for demanding industrial networks. It combines resilient architecture, flexible routing, and advanced management features to support mission-critical automation environments.
