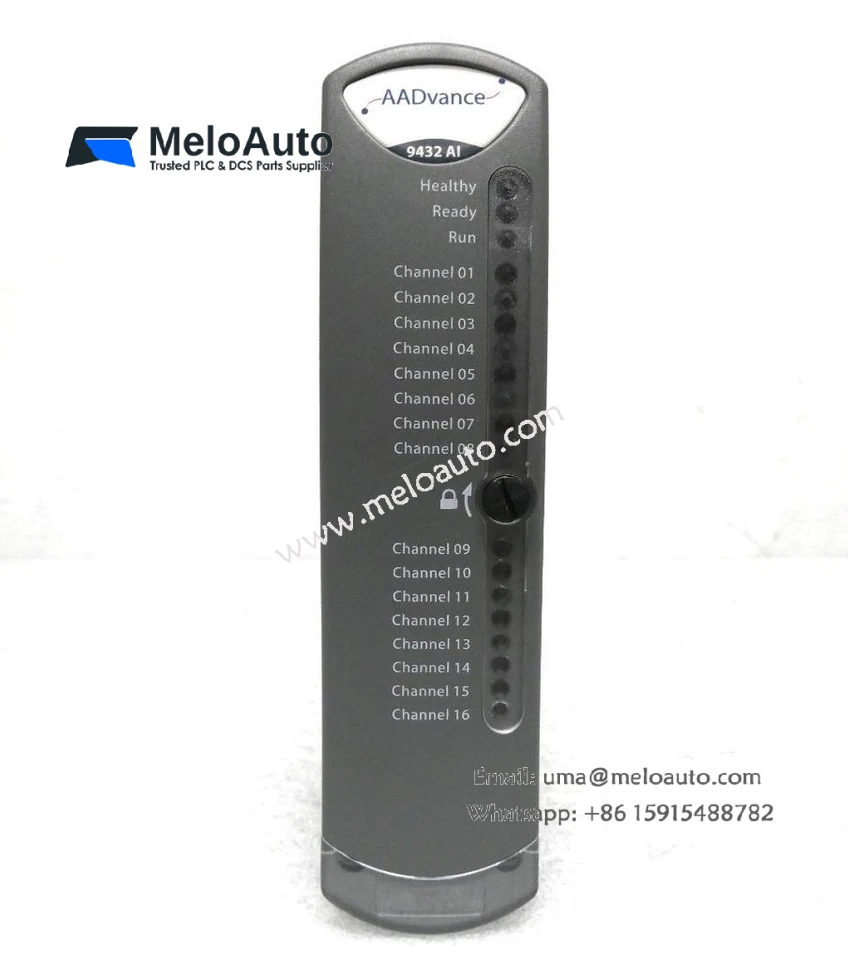

ICS Triplex T9432 Isolated Analog Input Module

Product Overview

The ICS Triplex T9432 is an Isolated Analog Input Module designed to handle a wide range of industrial control applications. With a robust input voltage range of 18-32 Vdc, this module efficiently manages up to 16 analog input channels. It’s engineered for high reliability and flexibility, offering multiple redundancy options such as Simplex, Dual, and Triple configurations. This module integrates seamlessly with other ICS Triplex components, making it ideal for mission-critical automation systems.

Key Features

Input Voltage Range: Supports a wide voltage range from 18 Vdc to 32 Vdc.
Analog Input Channels: Provides 16 isolated analog input channels, perfect for high-precision measurements.
Redundancy Options: Configurable in Simplex, Dual, or Triple setups to ensure maximum system reliability.
Scan Time: Fast scan times of 1.170 ms (Simplex), 1.965 ms (Dual), and 2.656 ms (Triple) ensure timely data processing.
Compact Design: Weighs only 340g (12 oz), making it lightweight yet robust for industrial use.
Power Consumption: Consumes just 4.0 W with a heat dissipation rate of 4.0 W (13.6 BTU/hr), ensuring minimal energy use.
Easy Integration: Fully compatible with other ICS Triplex modules, allowing for flexible system expansions.

Technical Specifications

Specification	Details
Model	ICS Triplex T9432
Manufacturer	ICS Triplex
Product Type	Isolated Analog Input Module
Input Voltage Range	18-32 Vdc
Maximum Current	260 mA
Power Consumption	4.0 W
Heat Dissipation	4.0 W (13.6 BTU/hr)
Channels	16
Redundancy Options	Simplex, Dual, Triple
Scan Time (Simplex)	1.170 ms
Scan Time (Dual)	1.965 ms
Scan Time (Triple)	2.656 ms
Weight	340 g (12 oz)
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	10% to 95%, non-condensing

Typical Applications

The ICS Triplex T9432 is ideal for a range of industrial automation applications, including:

Power Generation: Used for monitoring and controlling key equipment in power plants.
Oil & Gas: Tracks process variables in complex oil and gas systems.
Manufacturing: Ensures precision in controlling manufacturing processes, such as conveyor systems or assembly lines.
Process Control: Suitable for continuous monitoring in industries such as food processing, chemicals, or pharmaceuticals.

Benefits

Increased System Reliability: Multiple redundancy options ensure that critical systems continue operating even in case of component failure.
Real-time Data Processing: Fast scan times enable real-time data monitoring, allowing for immediate adjustments to optimize performance.
Flexible Configuration: Simplex, Dual, and Triple configurations provide flexibility for various applications, ensuring that you can scale your system as needed.
Energy-Efficient: With low power consumption and minimal heat dissipation, the T9432 operates efficiently, reducing operational costs.
Compact and Robust: The module’s compact design and rugged build make it suitable for demanding industrial environments.

Why Choose the ICS Triplex T9432?

The ICS Triplex T9432 Isolated Analog Input Module is a highly reliable and efficient solution for industrial control systems. Its precise analog input capabilities, flexible redundancy options, and fast scan times make it ideal for a wide range of applications. Whether you need to monitor machinery in a manufacturing plant, or keep track of critical variables in a power plant, the T9432 ensures accurate, real-time data for optimal system performance.
