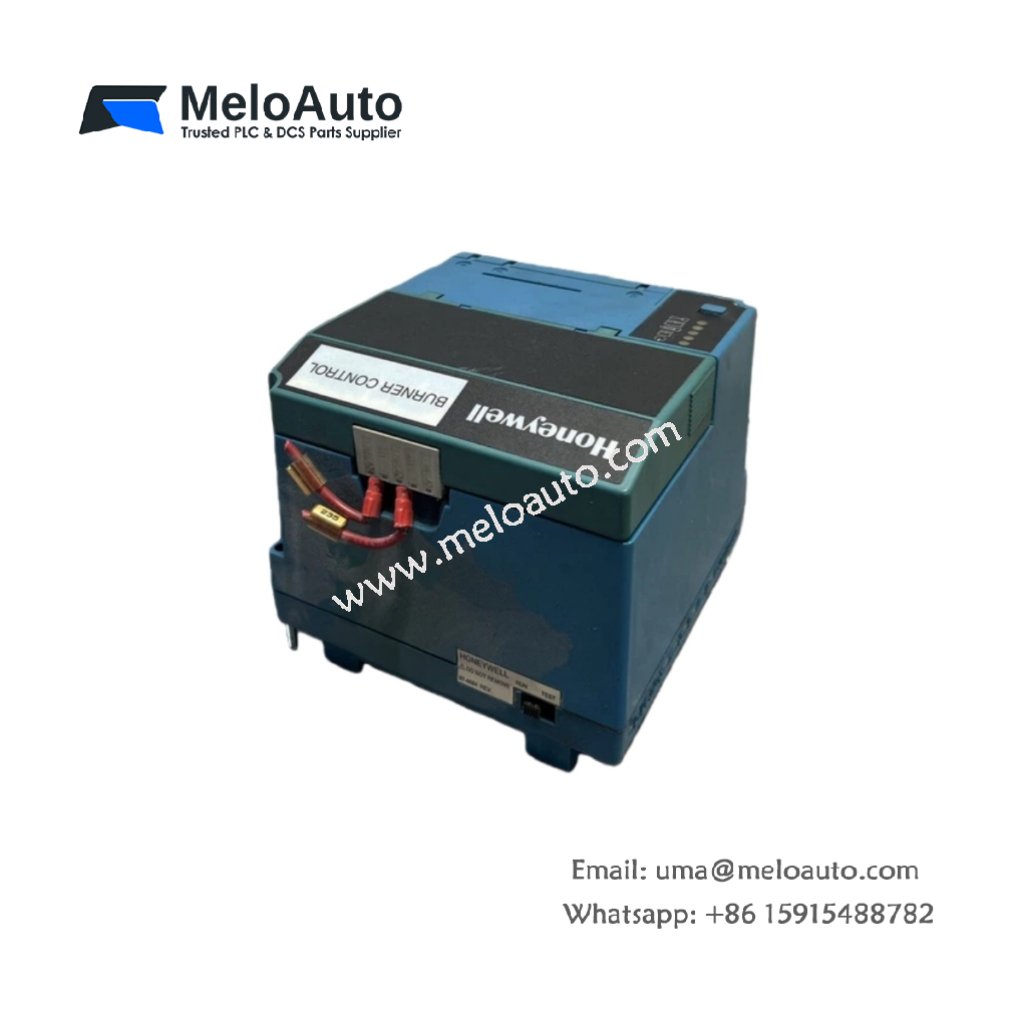

Honeywell RM7850A1001 Burner Control Module

The Honeywell RM7850A1001 is an advanced burner control module from the 7800 Series, designed for efficient and safe burner management. It provides precise control over ignition, flame supervision, and safety interlocks in industrial burners. With its flexible features, including user-selectable airflow check and interruptible pilot type, the Honeywell RM7850A1001 ensures optimal performance in complex combustion systems.

Key Features of the Honeywell RM7850A1001

Comprehensive Burner Control: The Honeywell RM7850A1001 offers full burner control, including ignition, flame monitoring, and safety interlocks, providing a reliable solution for demanding applications.
User-Selectable Features: The module allows for user-selectable airflow checks, enabling customization to meet specific system requirements. It also includes a feature for intermittent second-stage pilot valve operation.
European Community Compliance: Designed to meet European community timings, this module adheres to local regulations for burner control and operation.
Safety Enhancements: The Honeywell RM7850A1001 includes lockout interlocks to prevent unsafe operation, ensuring the burner operates within safe parameters.
Post-Purge Function: The module provides a 0.2-second post-purge, ensuring that residual gases are cleared after burner operation, reducing safety risks.

Technical Specifications

Parameter	Specification
Model	Honeywell RM7850A1001
Type	Burner Control Module
Series	7800 Series
Power Supply	120 VAC
Pilot Type	Interrupted pilot type
Interlocks	Lockout interlocks
Airflow Check	User-selectable airflow check
Post-Purge	0.2-second post-purge function
Valve Control	Intermittent second-stage pilot valve
Operating Temperature Range	-40°C to 60°C
Mounting Type	Panel or DIN rail mountable

Applications

The Honeywell RM7850A1001 is ideal for a variety of industrial burner control applications, including:

Industrial Burners: It provides full burner management, ensuring precise control and safe operation for industrial burner systems.
Heating Systems: This module is perfect for managing heating systems in large-scale industrial facilities.
Combustion Control: Widely used in systems requiring reliable flame monitoring, ignition control, and safety interlocks for combustion processes.
Energy Generation: It ensures optimal burner operation in energy production systems, improving efficiency and safety.

Conclusion

The Honeywell RM7850A1001 burner control module from the 7800 Series is a comprehensive and reliable solution for industrial burner management. With user-selectable features, enhanced safety controls, and European community compliance, it provides an efficient and secure way to manage combustion systems in demanding industrial applications.
