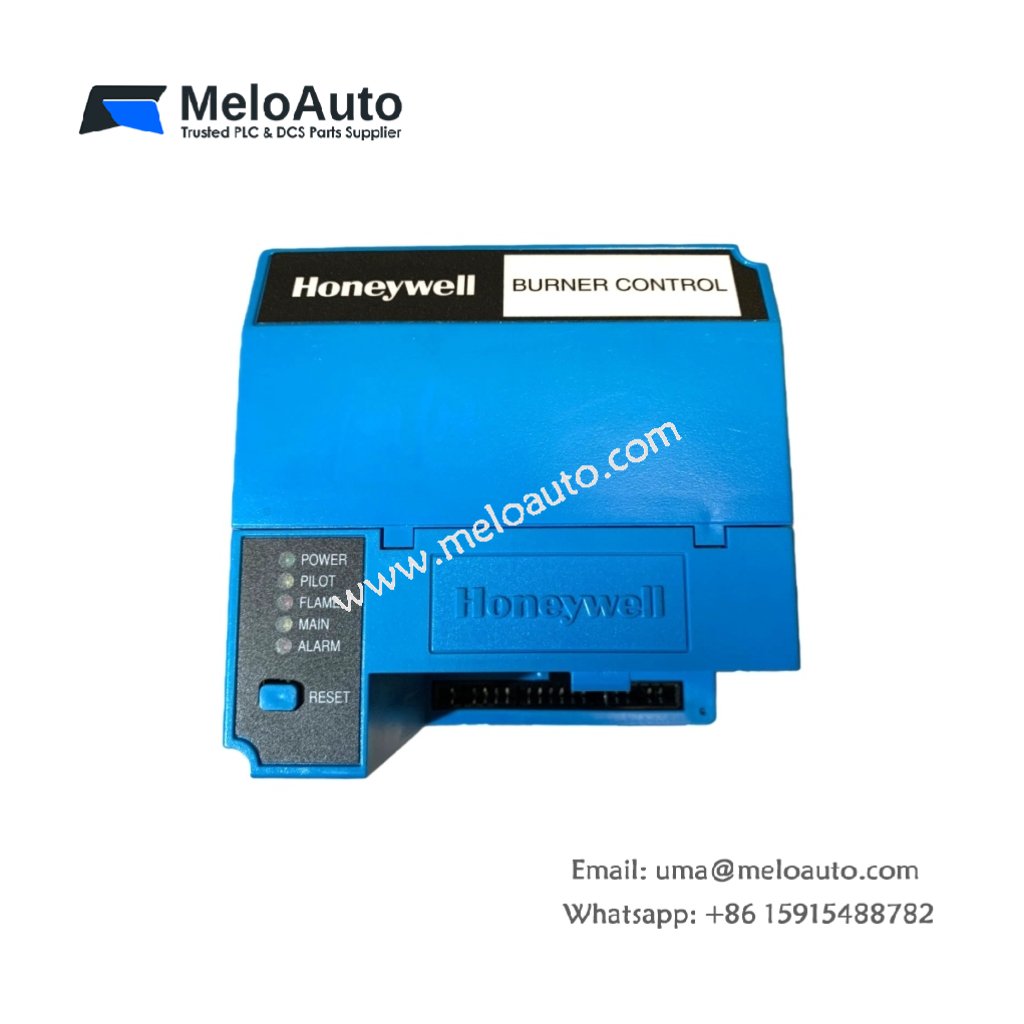

Honeywell RM7840L1075 Burner Control Unit

The Honeywell RM7840L1075 is an advanced burner control unit designed for industrial applications. As part of the 7800 series, this relay module features comprehensive programming control with VPS (Valve Proving System) for enhanced performance. The unit also includes key features such as a dust cover, selectable second-stage pilot valve, and user-selectable airflow check.

Key Features & Specifications of Honeywell RM7840L1075

• Manufacturer: Honeywell
• Model Number: RM7840L1075
• Product Type: Burner Control Unit
• Series: 7800 Series
• Control Type: Programming Control with VPS
• Pilot Flame Type: Interrupted pilot type
• Pilot Valve: Selectable second-stage pilot valve
• Pre-Ignition Feature: Included
• Early Spark Termination: 5-second delay
• Lockout Interlocks: Integrated for safety
• Dust Cover: Protection from external elements
• User Selectable Airflow Check: Customizable for optimal airflow
• Voltage: 120 VAC
• Frequency: 50/60 Hz

Honeywell RM7840L1075 Overview

The Honeywell RM7840L1075 control unit offers advanced burner management capabilities. It is specifically designed for industrial burners, including gas, oil, and combination fuel applications. By utilizing programming control with VPS, the RM7840L1075 enhances the safety and efficiency of combustion systems. The interrupted pilot type ensures precise flame control, while the selectable second-stage pilot valve allows for fine-tuning of the burner system.

This relay module comes with a dust cover to prevent contamination, increasing the system’s longevity. The user-selectable airflow check ensures optimal air-to-fuel ratio, improving combustion efficiency. Additionally, the early spark termination feature (with a 5-second delay) helps reduce system wear and improve reliability.

With lockout interlocks, the RM7840L1075 provides additional safety during burner operation. These interlocks prevent the system from running under unsafe conditions, ensuring maximum operational security.

Technical Specifications of Honeywell RM7840L1075

Applications

The Honeywell RM7840L1075 is perfect for controlling industrial burners used in various combustion systems. These systems include furnaces, boilers, and heaters. The programming control with VPS ensures reliable burner operation and safety across all stages of combustion. The RM7840L1075 is particularly well-suited for installations requiring precise control of pilot valves and airflow.

Advantages

• Enhanced Control: Programming control with VPS ensures precise operation of burners.
• Safety Features: Lockout interlocks prevent unsafe operations, enhancing system security.
• Durability: The dust cover prevents contamination, ensuring long-term reliability.
• Flexibility: The user-selectable airflow check ensures optimal air-fuel ratios.
