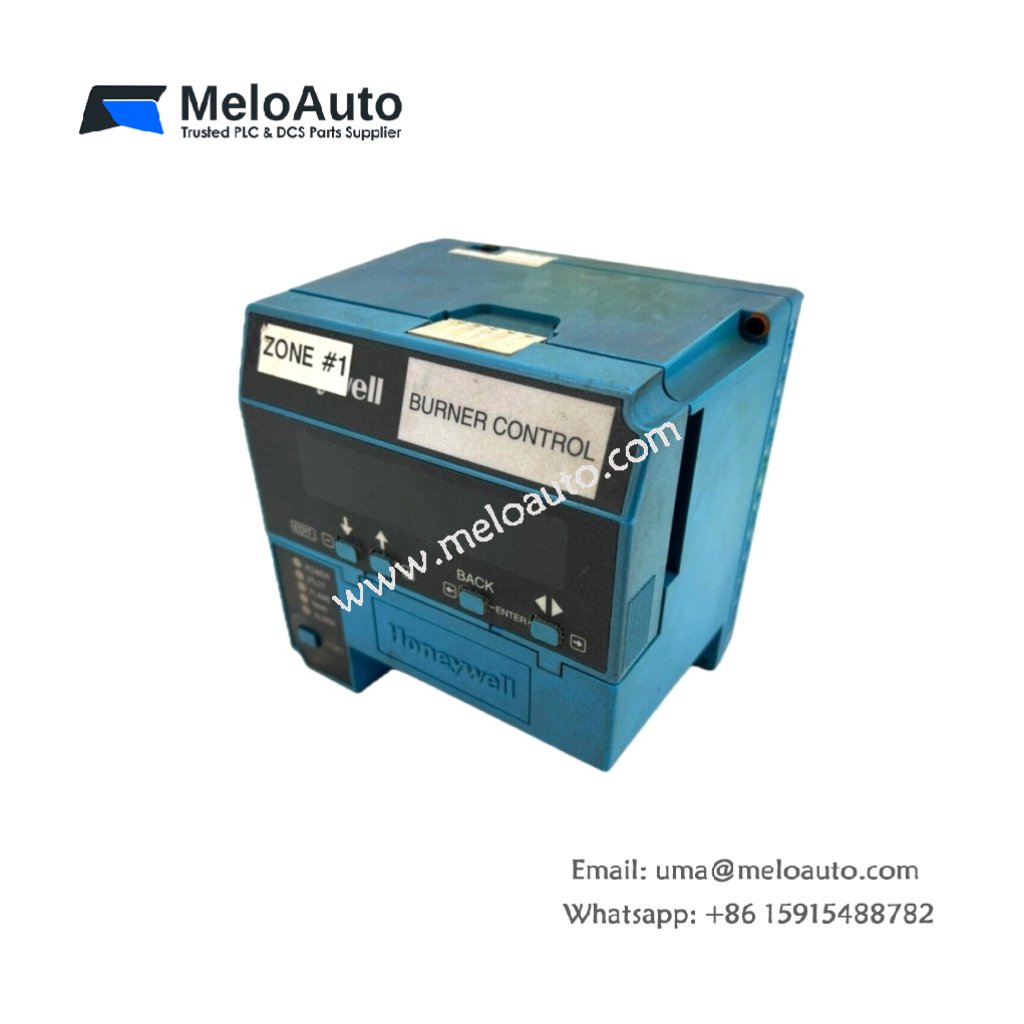

Honeywell RM7838C1012 Burner Mod Man-S/S

The Honeywell RM7838C1012 Burner Mod Man-S/S is designed for semi-automatic programming control applications with Valve Proving Switch (VPS). This model is ideal for use in various industrial and commercial heating systems. With its compact design and reliable performance, it ensures seamless integration into the S7800 series. The RM7838C1012 is engineered for durability and consistent operation, delivering both fault detection and efficient control for burner systems.

Key Features of the Honeywell RM7838C1012 Burner Mod Man-S/S

Model: Honeywell RM7838C1012
Type: Burner Mod Man-S/S
Voltage: 120V AC (+10%, -15%)
Frequency: 50 Hz; 60 Hz (±10%)
Approvals: Underwriters Laboratories Inc., FCC Part 15, Class B
Application: Semi-automatic programming control with VPS
Flame Establishing Period (Pilot): 4 sec or 10 sec
Flame Establishing Period (Main): 10 sec or intermittent
Interlocks: Lockout function for added safety
Programmable VPS: Valve Proving Switch check feature included
LED Fault Annunciation: Blinking LED indicates faults for easy troubleshooting

This burner mod includes essential features such as a programmable VPS check, ensuring system integrity. Moreover, the unit offers a quick flame establishment process for both pilot and main burners, enabling smooth operation in commercial and industrial settings.

Technical Specifications

Parameter	Value
Model	Honeywell RM7838C1012
Type	Burner Mod Man-S/S
Voltage	120V AC (+10%, -15%)
Frequency	50 Hz / 60 Hz (±10%)
Flame Establishing Period (Pilot)	4 sec or 10 sec
Flame Establishing Period (Main)	10 sec or intermittent
Interlocks	Lockout
VPS Check	Programmable VPS check
LED Fault Indication	Blinking LED for fault annunciation
Approvals	UL Recognized, FCC Part 15, Class B
Shipping and Storage Temp (F)	-40°F to +140°F
Shipping and Storage Temp (C)	-40°C to +60°C
Dimensions (in.)	5 in. W x 5 in. H x 5 1/4 in. D (with Q7800A Subbase)
Dimensions (mm)	127 mm W x 127 mm H x 133 mm D (with Q7800A Subbase)
Weight (lb)	1 lb 10 oz
Weight (kg)	0.7 kg

Application

The Honeywell RM7838C1012 is perfect for applications that require semi-automatic control and monitoring of burners. Its programmable VPS check feature ensures reliable system performance and safety. The module’s compact design makes it easy to install, while the lockout feature adds an additional layer of safety in the event of system faults. Whether used in industrial or commercial settings, this burner mod offers quick and efficient flame establishment and reliable fault detection through its LED annunciation.
