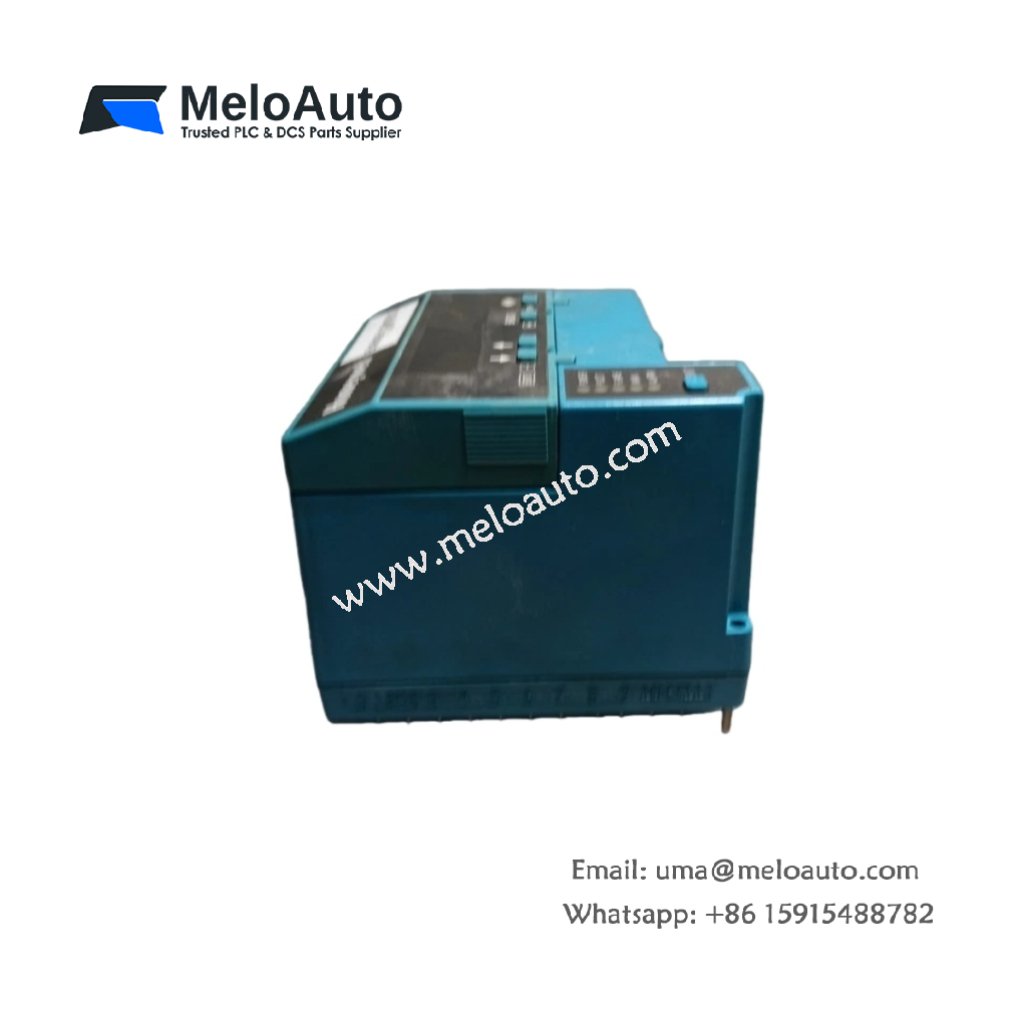

Honeywell RM7838C1004 Burner Control Unit

The Honeywell RM7838C1004 Burner Control Unit, part of the 7800 Series, excels in managing industrial burner systems. This high-performance relay module offers semi-automatic programming control and incorporates critical safety features to ensure safe and efficient burner operation.

Key Features of the Honeywell RM7838C1004 Burner Control Unit

Manufacturer: Honeywell
Part Number: RM7838C1004
Product Type: Burner Control Unit
Series: 7800 Series
Functionality: Semi-automatic programming control with integrated safety features
Programming Control: Enables easy burner operation programming
Safety Features: Includes lockout interlocks for operational safety
Pilot Flame: Intermittent interrupted pilot type for reliable ignition
Main Flame: 10-second main flame establishing period
Voltage: 120 VAC, 50/60 Hz
Compatibility: Works seamlessly with Honeywell control systems

Overview of the Honeywell RM7838C1004 Burner Control Unit

The Honeywell RM7838C1004 is specifically designed to provide reliable control of burner operations. It offers users flexibility with semi-automatic programming and a user-friendly keyboard display module. Furthermore, its lockout interlocks enhance safety by preventing unsafe burner conditions.

Moreover, the unit’s 10-second main flame establishing period ensures that the flame reliably ignites every time. The intermittent interrupted pilot type optimizes the ignition process, improving burner performance and operational efficiency.

Technical Specifications

Feature	Specification
Manufacturer	Honeywell
Part Number	RM7838C1004
Product Type	Burner Control Unit
Series	7800 Series
Voltage	120 VAC
Frequency	50/60 Hz
Main Flame Establishing Period	10 seconds
Pilot Type	Intermittent interrupted pilot
Lockout Interlocks	Yes, for enhanced safety
Programming Control	Semi-automatic control
Display	Includes Keyboard Display Module
Safety Features	Lockout interlocks and pre-ignition monitoring

Application and Installation

The Honeywell RM7838C1004 is ideal for controlling industrial burners in high-demand environments. It simplifies burner management by combining semi-automatic control with user-friendly programming. Additionally, it’s designed for ease of installation and maintenance.

When you install the RM7838C1004, you benefit from the system’s reliability and enhanced safety features, such as lockout interlocks. The 10-second main flame establishing period and intermittent interrupted pilot type ensure consistent and efficient burner performance.
