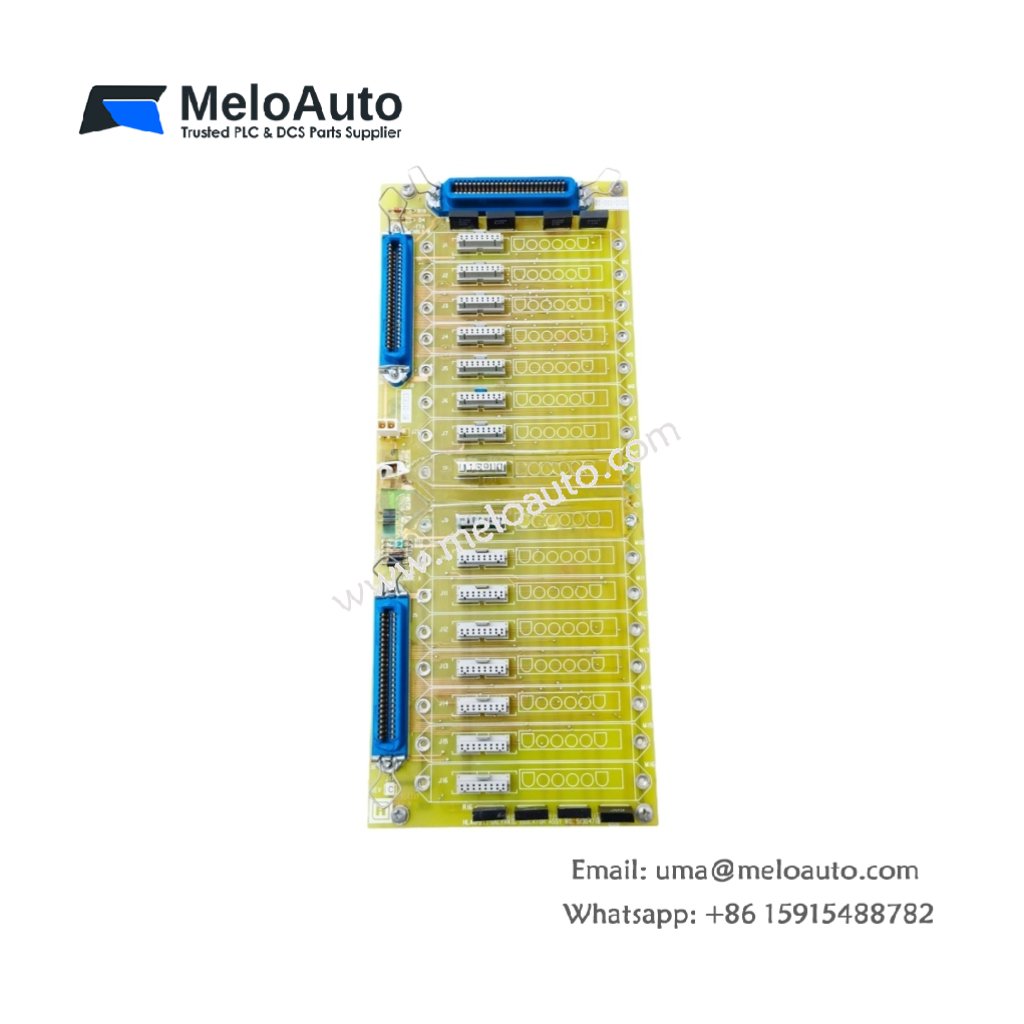

Honeywell MU-GAIH13 Transmitter Interface FTA

Overview

The Honeywell MU-GAIH13 is a High-Level Analog Input/Smart Transmitter Interface Field Termination Assembly (FTA) designed for high-precision data acquisition. This module seamlessly integrates with Honeywell’s automation systems, providing reliable and accurate input signal processing. It is ideal for industries requiring robust control and monitoring of their processes.

Key Features

4 Differential Input Channels: Supports up to four independent input channels for versatile signal processing.
Input Range: Capable of handling both 4-20mA and -10V input signals, suitable for a wide variety of industrial applications.
Input Impedance: 102kΩ ensures stable operation and minimal signal loss.
Output Voltage: Operates with a nominal 24VDC output, ensuring compatibility with most control systems.
Current Consumption: Efficient power usage with a consumption of just 402mA.
Dimensions: Compact design with dimensions of 43mm x 48mm x 9.0mm, making it easy to integrate into existing systems.
Weight: Lightweight at 2.3kg, suitable for easy handling and installation.
Certifications: Compliant with CE for international safety standards, ensuring reliability and safety in operation.

Technical Specifications

Specification	Details
Manufacturer	Honeywell
Model Number	MU-GAIH13
Product Type	High-Level Analog Input/Smart Transmitter Interface FTA
Input Channels	4 Differential input channels
Input Range	4-20mA or -10V
Input Impedance	102kΩ
Output Voltage	24VDC
Current Consumption	402mA
Dimensions	43mm x 48mm x 9.0mm
Weight	2.3kg
Certifications	CE Compliant

Applications

The Honeywell MU-GAIH13 is ideal for a range of industrial applications, including:

Process Control: Accurately measures and monitors various process parameters.
Data Acquisition: Captures analog signals for real-time data analysis and system optimization.
Industrial Systems: Compatible with Honeywell’s automation systems for seamless integration in industrial environments.
Monitoring: Provides reliable input for systems requiring continuous monitoring and control.

Why Choose the Honeywell MU-GAIH13?

The Honeywell MU-GAIH13 is engineered to deliver precise analog signal processing for demanding industrial applications. With 4 differential input channels, wide input ranges, and high input impedance, it ensures accurate and reliable data acquisition. Its compact size and lightweight design make it easy to install and integrate, while its CE certification guarantees compliance with international safety standards.
