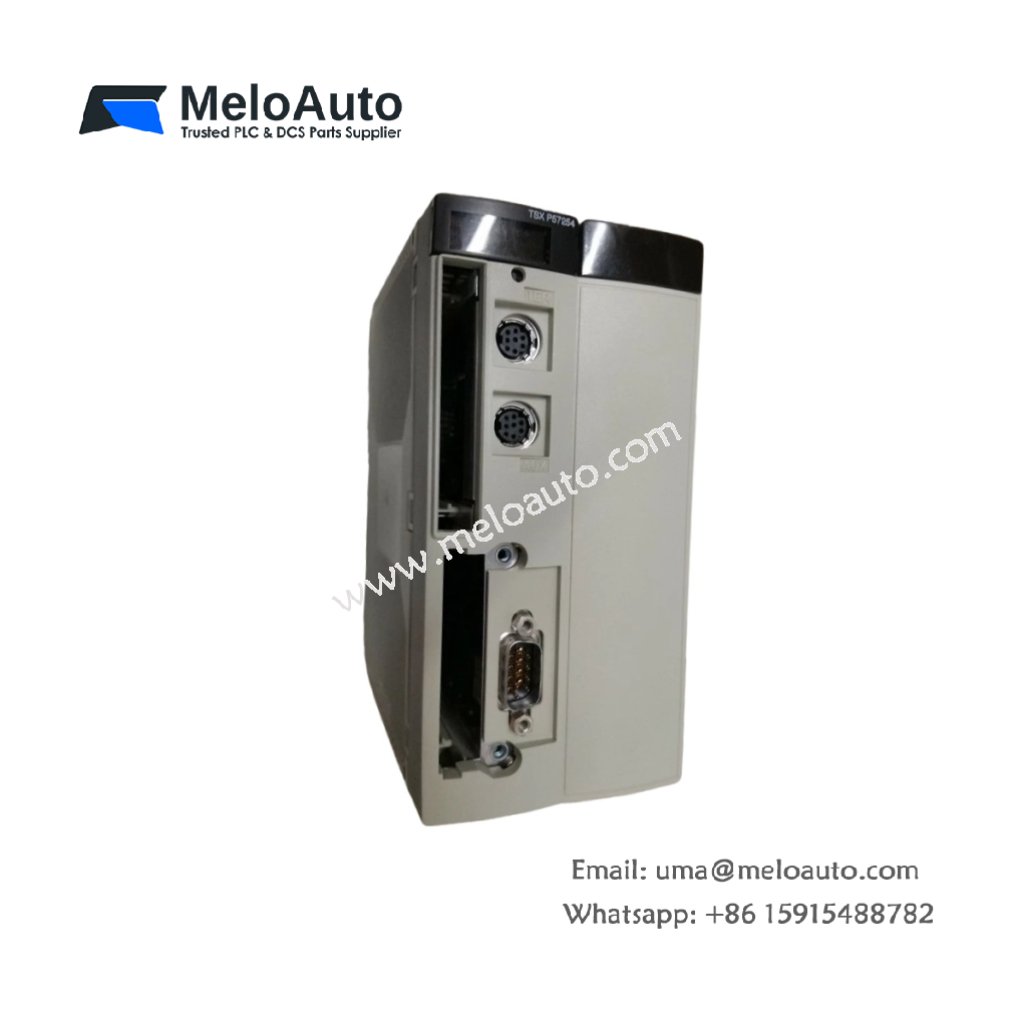

Schneider TSXP57254M Unity Processor for Industrial Automation

The Schneider TSXP57254M is a robust Unity processor designed to integrate seamlessly into Schneider Electric’s Unity automation platform. This processor offers exceptional I/O capabilities and memory expansion for high-performance industrial applications. It efficiently handles complex control tasks with precision and reliability, making it an ideal choice for demanding automation environments.

Key Features and Technical Specifications

Parameter	Details
Model	TSXP57254M
Manufacturer	Schneider Electric
Product Type	Unity Processor
Compatible Software	Unity Pro
Number of Racks	16 (4/6/8 slots), 8 (12 slots)
Discrete I/O Processor Capacity	1024 I/O
Analogue I/O Processor Capacity	80 I/O
Application Specific Channels	≤ 24
Process Control Channels	≤ 10 (up to 30 simple loops)
Integrated Connection Type	Fipio Manager (127 agents), SUB-D 9, RS485
Memory (with PCMCIA card)	192 kB data, 768 kB program
Memory (without PCMCIA card)	192 kB program and data
PCMCIA Card	16,384 kB additional data storage
System Overhead	0.3 ms (fast task), 1 ms (master task)
Marking	CE
Current Consumption	930 mA (5 V DC)
Module Format	Double
Operating Temperature	0…60 °C
Storage Temperature	-25…70 °C
Relative Humidity	10…95 % (operation), 5…95 % (storage)
Operating Altitude	0…2000 m
Product Weight	0.628 kg
Shipping Weight	2 kg

Performance and Functionality

The Schneider TSXP57254M excels in handling both discrete and analogue I/O operations, with up to 1024 I/O points and 80 analogue I/O capacity. It supports up to 30 simple process control loops, allowing you to manage a wide range of industrial processes. The processor offers a fast response time of 0.3 ms for tasks that require high speed, and 1 ms for the master task, ensuring real-time operation in complex systems.

Moreover, the TSXP57254M integrates with Unity Pro software, providing an intuitive and flexible platform for controlling and monitoring automation processes. Its memory, including up to 16,384 kB of additional storage via a PCMCIA card, ensures it can handle large datasets and complex programs efficiently.

Connectivity and Integration

The TSXP57254M offers flexible connectivity options. It integrates a Fipio manager capable of managing up to 127 agents and features a SUB-D 9 connection for robust communication. Additionally, it supports RS485 communication with a 19.2 kbit/s data rate, allowing for reliable data exchange with other devices in the network.

Thanks to these features, the TSXP57254M integrates smoothly into existing automation systems, making it easier to expand or upgrade your control infrastructure.

Durability and Environmental Adaptability

The TSXP57254M performs reliably in harsh industrial environments, operating within a temperature range of 0°C to 60°C. It is also built to withstand extreme storage conditions, ranging from -25°C to 70°C. With a relative humidity range of 10% to 95% for operation, and 5% to 95% for storage, this processor can function in environments with fluctuating humidity levels.

Compact and Lightweight Design

Weighing just 0.628 kg, the TSXP57254M has a compact double module format. This design ensures efficient use of space while maintaining the processor’s high performance. Despite its small size, it provides significant processing power and memory expansion, making it an ideal choice for space-constrained installations.
