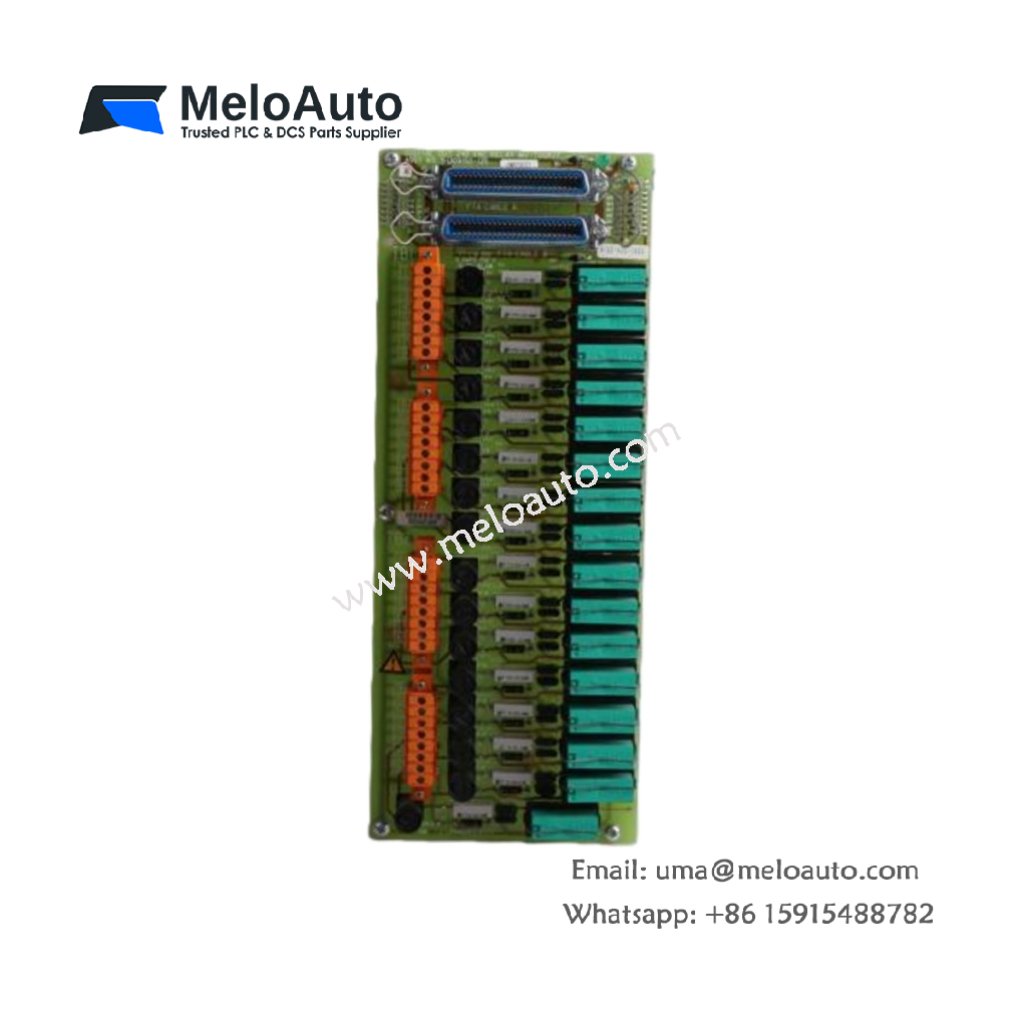

Honeywell MC-TSTX13 Smart Transmitter Interface

The Honeywell MC-TSTX13 is a Smart Transmitter Interface (STI) designed to enhance communication between Honeywell UCN controllers and smart transmitters. This module supports multiple communication protocols, such as HART, Modbus, and FOUNDATION Fieldbus, making it versatile for various industrial automation systems. Additionally, it ensures redundancy, boosting the reliability and stability of your control systems.

Key Features:

Communication Protocols: Supports HART, Modbus, and FOUNDATION Fieldbus protocols for seamless integration with various field devices.
Redundancy: Features redundant input and output modules to ensure system reliability and minimize downtime.
Input Channels: The MC-TSTX13 provides 16 digital input channels (PVs) for connecting multiple field devices.
Surge Withstand Capability: Complies with ANSI/IEEE C37.90.1-1978 standards to endure power surges.
Compatibility: Compatible with Honeywell UCN controllers and various field devices, including MU-TAIH02, MU-TSTX03, and others.
Accuracy: Maintains the field instrument accuracy, ensuring precise data transmission with no resolution degradation.
Broadcast Frequency: Capable of broadcasting 2.4 to 3.6 PVs per second per channel, depending on configuration.
Power Conditioning: Includes transmitter power conditioning to ensure stable operations across different transmitter models.
Environmental Protection: Conformal coating protects against harsh environmental conditions, ensuring reliable performance in industrial settings.

Applications:

The Honeywell MC-TSTX13 is ideal for industrial automation systems, especially in hazardous environments (Class 1, Division 2). It is commonly used in applications such as:

Oil & Gas
Power Generation
Chemical Processing
Pharmaceutical
Water & Wastewater Treatment

Technical Specifications:

Parameter	Specification
Model Number	MC-TSTX13
Number of Input Channels	16 (digital inputs)
Input Type	HART, FOUNDATION Fieldbus, Profibus PA
Output Type	Digital
Redundancy	Supported (input and output)
Input Voltage Range	-10V to +30V (no damage)
Current Limiting	30 mA max
Minimum Voltage	23V
Broadcast Frequency	2.4-3.6 PVs per second (configurable)
Surge Withstand Capability	ANSI/IEEE C37.90.1-1978 compliant
Operating Temperature Range	-40°C to 75°C
Storage Temperature Range	-55°C to 85°C
Relative Humidity	5% to 95% RH (non-condensing)
Vibration	5G, 2 to 500 Hz
Shock	30G, 11 ms
Dimensions (W x H x D)	150 mm x 120 mm x 80 mm
Weight	0.9 kg (Approx.)
