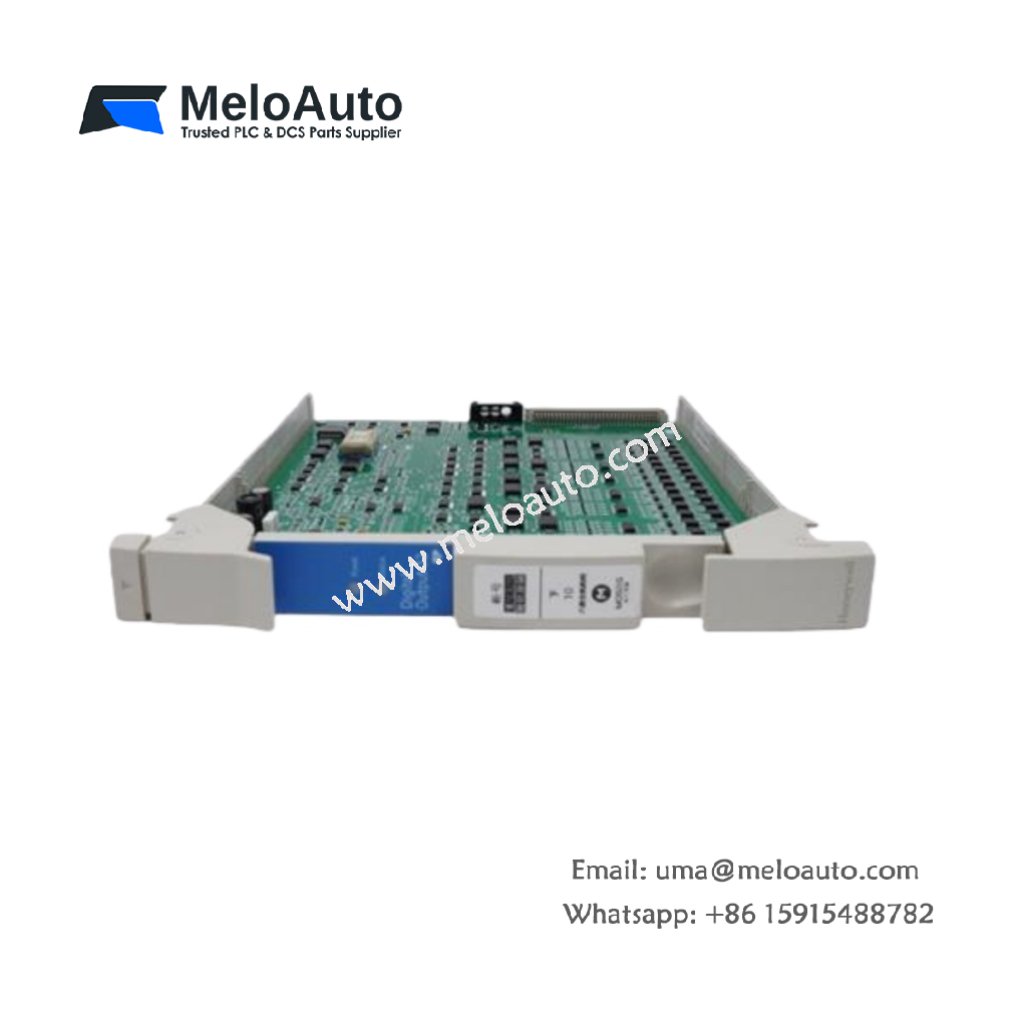

Honeywell MC-GAIH84 Analog Input Module

Overview

The Honeywell MC-GAIH84 is a high-performance analog input module designed for industrial applications. It provides 16 input channels and offers two distinct versions: one non-CE compliant (part number 51304730-350) and one CE compliant (part number 51304730-375) for meeting European standards. This module is ideal for accurate and reliable measurement in automation systems.

Key Features

16 High-Level Input Channels: Supports 16 input channels, making it suitable for complex industrial setups.
Crimp Terminals: Ensures secure and reliable connections, minimizing the risk of faulty wiring.
Galvanic Isolation: Prevents electrical interference and ensures the integrity of the input signals.
Redundancy Support: Built-in redundancy features enhance system reliability and minimize downtime.
Compliance: The 51304730-375 version meets CE safety and performance standards, making it suitable for European markets.

Technical Specifications

Parameter	Value
Model	MC-GAIH84
Manufacturer	Honeywell
Input Channels	16
Input Range	Supports 4-20 mA signals
Power Supply	DC power for 4-20 mA transmitters
Safety Voltage	Maximum open-circuit: 28 VDC
Source Resistance	Minimum 300 ohms
Short-Circuit Current	Maximum 93 mA
Redundancy Support	Yes
CE Compliance	Version 51304730-375 (CE compliant)
Connection Type	Crimp Terminals

Dimensions and Weight

Dimensions: 3.5 x 6.8 x 2.3 inches (89 x 173 x 58 mm)
Weight: 0.5 kg (1.1 lbs)

Applications

The Honeywell MC-GAIH84 is ideal for a variety of industrial applications that require high-level analog input signals. Some of its common applications include:

Process Control: Used in process automation systems to monitor and control variables such as temperature, pressure, and flow.
Manufacturing Automation: Ideal for use in factory automation systems where reliable signal input is critical.
Energy Management: Applied in energy monitoring systems for real-time data acquisition and processing.
