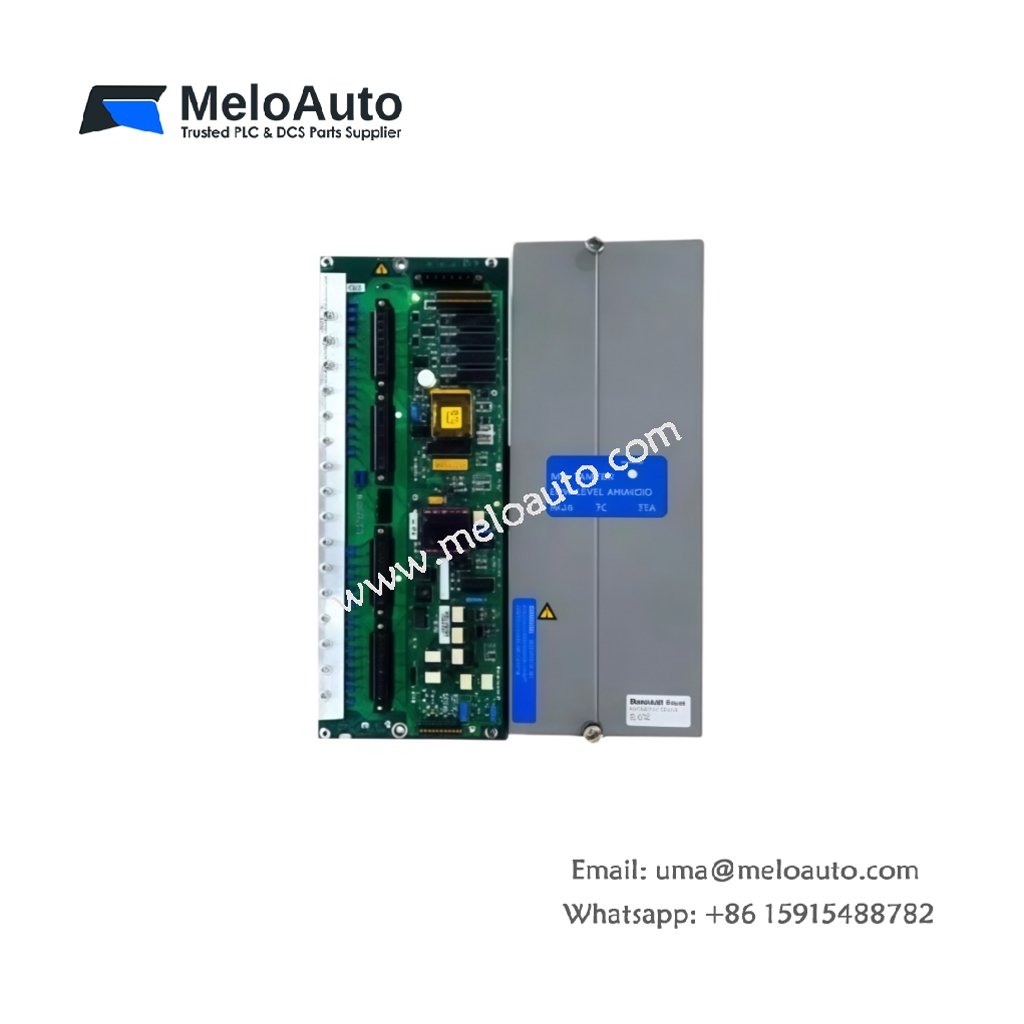

Honeywell FS-CPCHAS-0002 Control Processor Chassis

Enclosure for Safety Manager Control Processors

The Honeywell FS-CPCHAS-0002 chassis provides a rugged enclosure for Honeywell Safety Manager control processors. This chassis houses the primary and redundant control processor modules for critical safety applications. It ensures reliable operation for emergency shutdown and fire and gas systems. The chassis serves process plants, refineries, and offshore platforms.

Technical Specifications

Processor Enclosure Design

This chassis accommodates two control processor modules in a compact housing. The backplane provides high-speed communication between processors and I/O systems. Each slot includes dedicated power and communication connections for reliable operation. The chassis supports both simplex and redundant processor configurations for flexible system design.

Redundant Power Inputs

The chassis features dual power inputs for supply redundancy. This design ensures continuous operation even if one power source fails. The system automatically switches to the backup power input without interruption. Consequently, the chassis enhances overall system availability in critical safety applications.

High-Speed Communication Bus

The internal backplane supports high-speed data exchange between processor modules. Two Ethernet ports provide connectivity to the system network. These ports enable communication with Experion PKS and other control systems. Furthermore, the bus architecture ensures deterministic performance for safety-critical functions.

Robust Mechanical Construction

The chassis features a durable housing that protects internal components effectively. Rack mounting simplifies installation in standard 19-inch cabinets. The chassis occupies minimal panel space at 180 x 80 x 180 mm. Additionally, the sturdy construction withstands vibration and shock in plant environments.

Safety System Integration

This chassis integrates with Honeywell Safety Manager controllers and I/O systems. It supports both emergency shutdown and fire and gas system architectures. The chassis meets stringent safety standards for SIL 3 applications. Consequently, operators can trust this enclosure for their most demanding safety installations.

Installation and Maintenance

The chassis design simplifies processor installation and replacement procedures. LED indicators provide immediate visual confirmation of power and communication status. You can hot-swap processor modules without powering down the system. This feature minimizes downtime during maintenance and upgrade activities.
