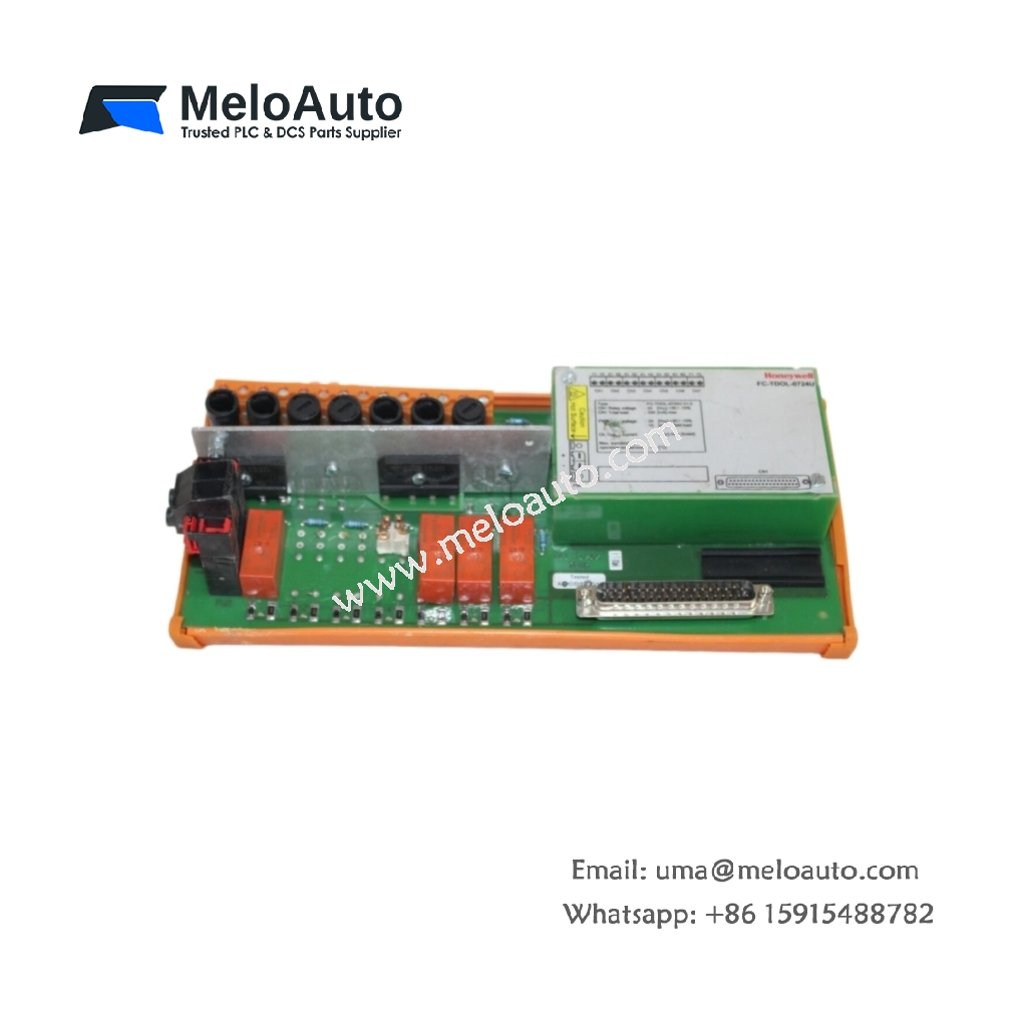

This high-performance analog input module captures precise field signals for Honeywell Safety Manager and Experion PKS platforms. It converts analog sensor readings into digital data for critical monitoring and control functions. The module supports SIL3-compliant safety applications and delivers reliable operation even in harsh industrial environments. Furthermore, it includes built-in diagnostic features that simplify troubleshooting and reduce system downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | FC-TDOL-0724 |
| Product Type | Analog Input Module |
| Channels | 7 analog inputs |
| Operating Voltage | 24 VDC |
| Current Consumption | 2 A |
| Dimensions (W×H×D) | 240 × 108 × 85 mm |
| Net Weight | 0.62 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | −40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Certifications | CE, TUV, UL, CSA |
| Safety Compliance | SIL3 rated |
Design and Integration Features
This analog input module features a compact form factor that optimizes cabinet space utilization. Its DIN-rail mounting mechanism enables quick and secure installation without complex tooling. Moreover, the module provides full isolation between input channels and the control logic side. Consequently, it effectively protects the system from field-side electrical noise and ground loops. The design also incorporates conformal coating that meets IEC 60664-3 requirements for enhanced environmental protection.
Safety Approvals and Compliance
The module holds multiple international safety certifications for global deployment. It complies with SIL3 standards for safety-instrumented systems in process industries. Therefore, it integrates seamlessly into critical applications such as emergency shutdown systems and burner management. The unit also meets CE, UL, and CSA requirements for electrical safety and electromagnetic compatibility.
