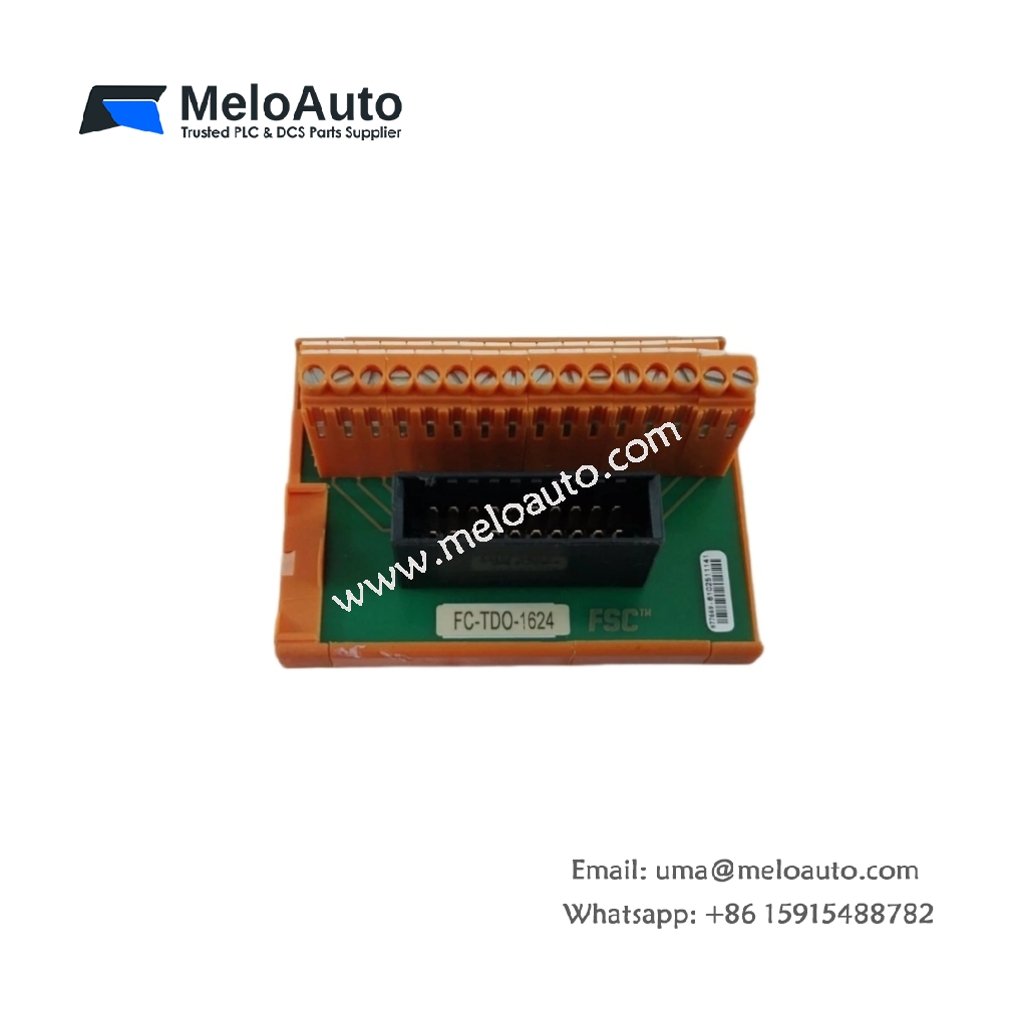

This robust digital output module provides sixteen discrete output channels for demanding industrial automation tasks. It interfaces directly with Honeywell Safety Manager and Experion PKS systems to drive field actuators and indicators. The module delivers reliable switching performance with comprehensive diagnostic coverage for each channel. Moreover, its solid-state design eliminates mechanical wear and ensures long-term operational stability in harsh environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | FC-TDO-1624 |
| Product Type | Digital Output Module |
| Channel Count | 16 independent outputs |
| Nominal Voltage | 24 VDC |
| Output Type | Solid-state current sourcing |
| Current Rating (Per Channel) | 1 A |
| Total Current | 16 A |
| Maximum Inrush Current | 2 A |
| Mounting | DIN-EN rail (TS32/TS35) |
| Dimensions (W×H×D) | 225 × 113 × 87 mm |
| Net Weight | 0.33 kg |
| Galvanic Isolation | 2500 V (field to logic) |
| Operating Temperature | 0°C to +60°C |
| Certifications | CE, TUV, UL, CSA |
| Safety Compliance | SIL3 rated for safety applications |
Design and Installation Features
The module features a compact enclosure that fits easily into standard control cabinets. Its snap-in DIN-rail mounting system enables rapid installation without specialized tools. Additionally, removable terminal blocks simplify field wiring and future maintenance activities. The unit also offers complete galvanic isolation between field outputs and control logic. This isolation effectively protects the system from voltage spikes and ground potential differences.
Safety Approvals and Compliance
This module meets rigorous international safety standards for process automation. It holds SIL3 certification for use in safety-instrumented functions and emergency shutdown systems. Consequently, it provides dependable operation for burner management, turbine control, and valve positioning applications. The unit also complies with CE, TUV, UL, and CSA requirements for global deployment.
Built-in Diagnostics
Each output channel includes independent fault detection and reporting capabilities. The module continuously monitors output status and load conditions in real time. It reports open-wire, short-circuit, and overcurrent conditions to the control system immediately. Therefore, operators can quickly identify and address field wiring issues before they escalate.
