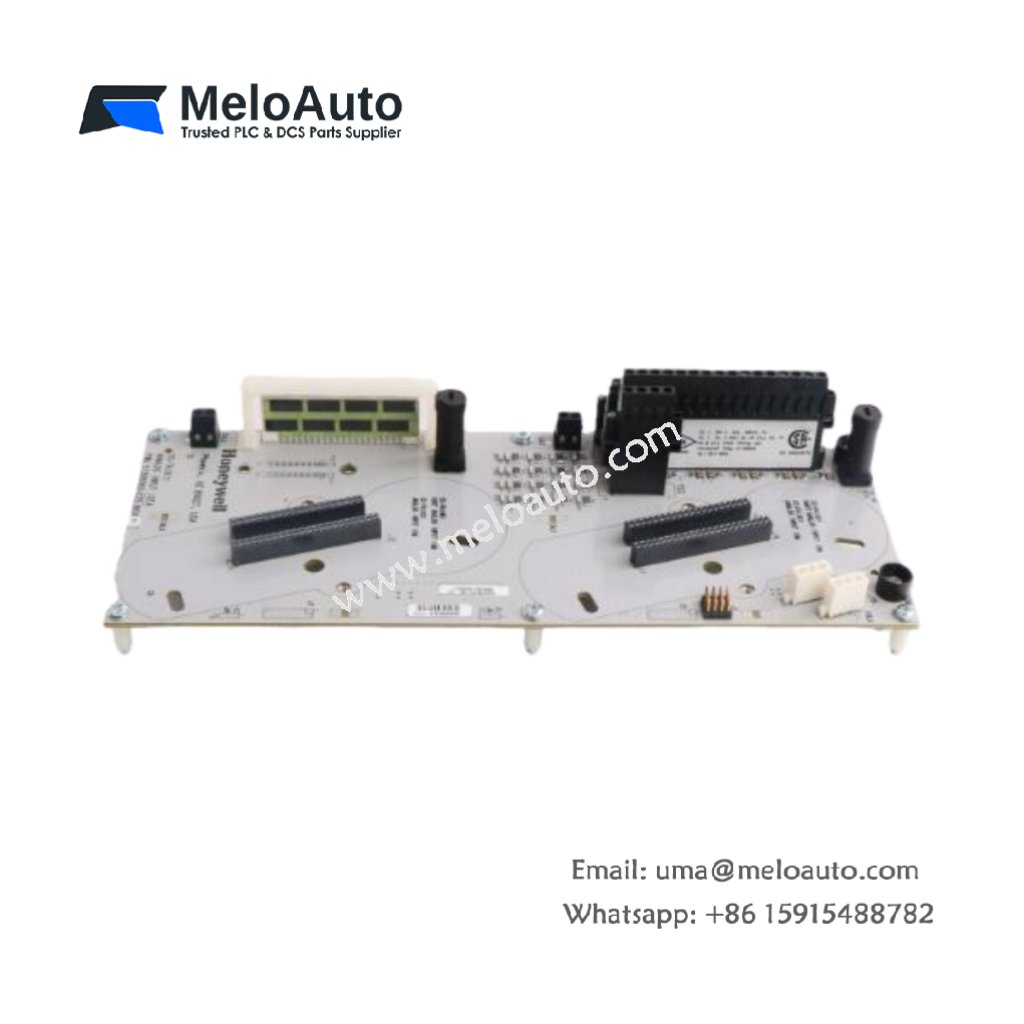

Honeywell CC-TAOX11 51308353-175 Analog Output Module

Overview

The Honeywell CC-TAOX11 51308353-175 analog output module delivers exceptional performance for industrial automation systems. It converts digital control signals into precise analog outputs, enabling you to control analog devices such as valves and motors effectively. As part of Honeywell’s Series C I/O module family, the CC-TAOX11 stands out for its high precision, reliability, and versatility. It features 16 output channels and 16-bit resolution, which provide precise control in a wide range of industrial applications. With multiple output ranges and built-in protection, this module is well-suited for harsh environments.

Key Features

16 Output Channels: The module supports 16 channels, providing flexible and high-performance signal conversion.
Multiple Output Ranges: Choose from a variety of output ranges, such as 0-5V and 0-20mA, to suit your needs.
16-Bit Resolution: Achieve high precision with 16-bit resolution, ensuring accurate analog signals.
Surge Protection: It includes surge protection to ensure the module’s reliability even in fluctuating electrical conditions.
EMC Compliance: The module meets EMC standards, ensuring optimal performance in environments with high electromagnetic interference.
HART Transmitter Output: It supports HART protocol for advanced control and monitoring of connected devices.

Technical Specifications

Feature	Specification
Model Number	CC-TAOX11 51308353-175
Manufacturer	Honeywell
Type	Analog Output Module
Number of Channels	16 channels
Output Type	4-20mA DC and HART transmitter outputs
Resolution	16-bit
Power Supply	24VDC
Output Range	0-5V, 0-20mA, and more
Accuracy	±0.1%
Repeatability	±0.02%
Surge Protection	Yes
EMC Compliance	Yes, meets industry standards
Dimensions	29.4 cm x 12 cm x 6.3 cm
Weight	0.36 kg

Applications

The Honeywell CC-TAOX11 analog output module is designed for numerous industrial automation applications, including:

Process Control: It enables precise control of valves, actuators, and other vital process equipment.
Machine Automation: Use it for controlling motors and automated machinery with high precision.
Energy Management: Efficiently manage energy-consuming devices such as motors and HVAC systems.
Environmental Systems: The module provides accurate control in applications where precision is crucial, such as environmental monitoring.
