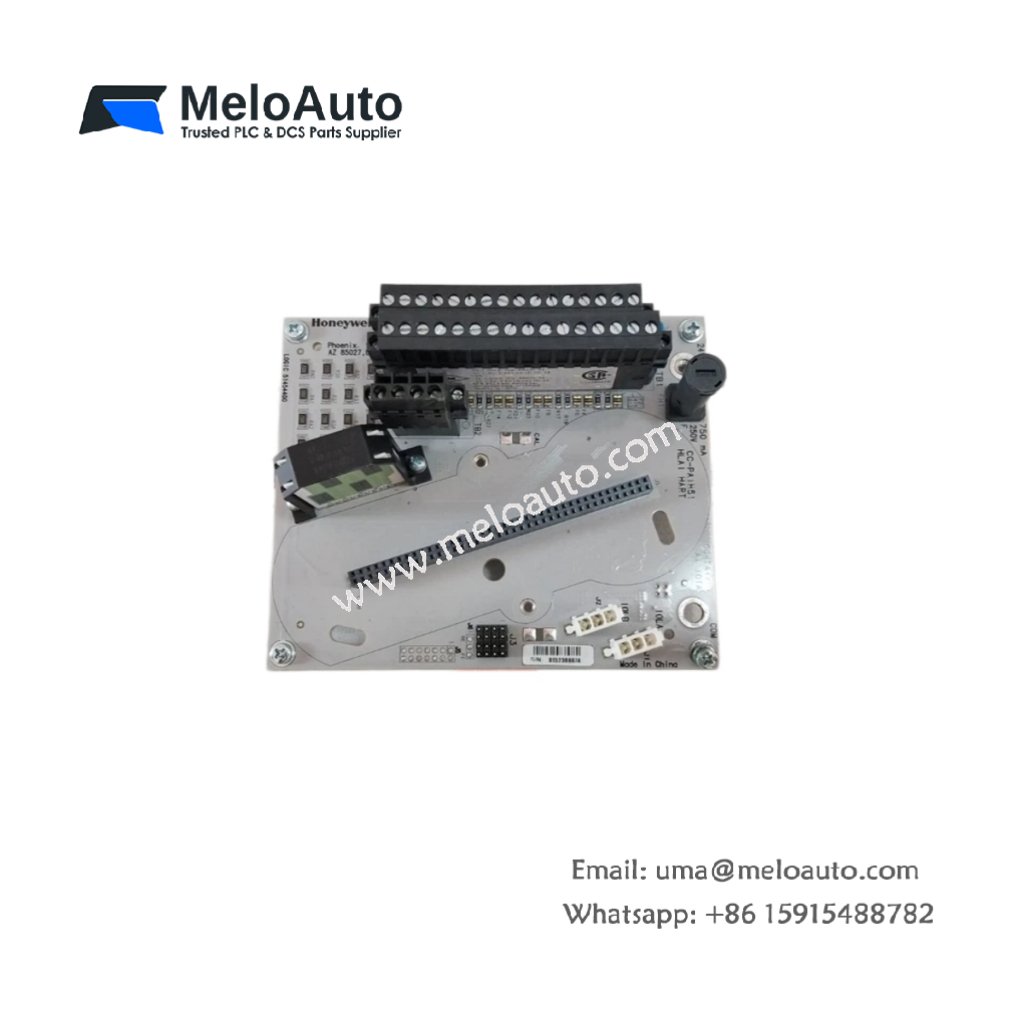

Honeywell CC-TAIX51 Analog Input Module

Technical Overview

The Honeywell CC-TAIX51 is a high-performance analog input module designed for the Experion PKS distributed control system. This module converts analog signals from field sensors into digital values for the C300 controller and other Experion processors. It provides a reliable interface for temperature, pressure, flow, and level transmitters .

The module supports 4-20 mA current signals and 0-10 V voltage inputs, accommodating a broad range of industrial sensors . Its 16-bit resolution ensures precise measurement for demanding process control applications . The module operates reliably from -40°C to +70°C, making it suitable for harsh industrial environments . The Honeywell CC-TAIX51 integrates seamlessly with Series C IOTA baseplates via standard connectors.

Technical Specifications

Parameter	Specification
Manufacturer	Honeywell
Model Number	CC-TAIX51
Product Type	Analog Input Module
System Compatibility	Experion PKS, C300 Controller
Number of Channels	16
Input Signal Types	4-20mA, 0-10V
Resolution	16-bit
Accuracy	±0.1% of full scale
Isolation Voltage	1500Vrms (channel-to-channel)
Operating Temperature	-40°C to +70°C
Storage Temperature	-55°C to +90°C
Power Consumption	≤1W
Mounting	Series C IOTA baseplate, DIN rail
Country of Origin	USA

Key Features

High Channel Density – The module provides 16 analog input channels in a single slot, saving valuable rack space and reducing system costs .

High Accuracy and Resolution – The 16-bit resolution and ±0.1% full-scale accuracy ensure precise measurement for critical process control loops .

Galvanic Isolation – The 1500Vrms channel-to-channel isolation protects the control system from field-side noise and ground loops .

Wide Operating Temperature Range – The module operates reliably from -40°C to +70°C, making it suitable for demanding industrial environments .

Flexible Signal Inputs – Each channel supports 4-20 mA or 0-10 V inputs, accommodating various sensor types .

Applications

The Honeywell CC-TAIX51 excels in oil and gas, chemical processing, power generation, pharmaceutical manufacturing, and water treatment . It is ideal for monitoring temperature, pressure, flow, and level in Experion PKS-based distributed control systems.
