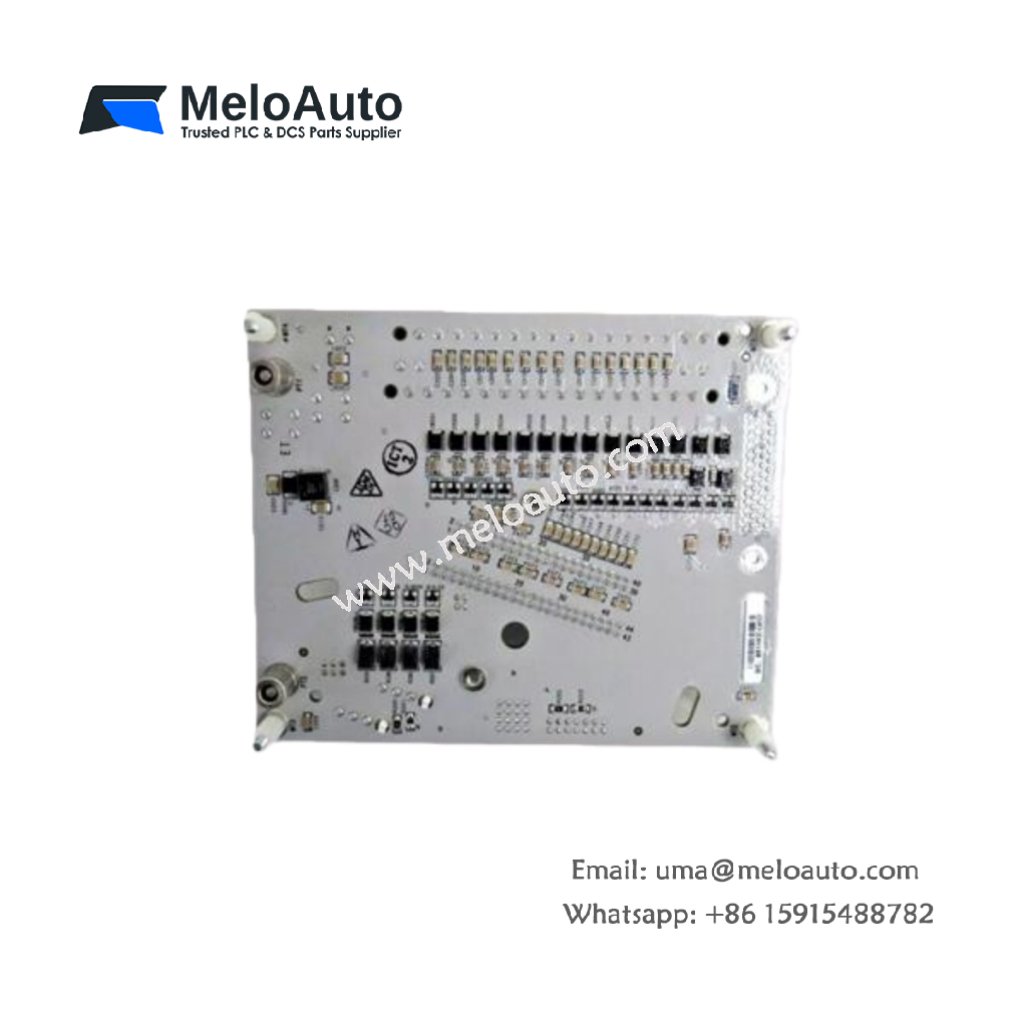

Honeywell CC-TAIX01 Analog Input Module

The Honeywell CC-TAIX01 is an advanced analog input (AI) module designed for use in the Honeywell Experion PKS distributed control system (DCS). This module provides accurate and reliable measurement of various analog signals, including temperature, pressure, and flow. It is well-suited for demanding industrial applications that require high precision and flexibility.

Key Features:

Versatile Input Types: Supports a range of input signals, including Thermocouples (TC), Resistance Temperature Detectors (RTD), voltage, and current.
High Accuracy: Provides excellent accuracy of ±0.25% of full scale, ensuring precise measurements.
Excellent Resolution: Offers a resolution of 12 bits for detailed and reliable signal conversion.
Signal Isolation: Features 2500 V isolation between input signals, protecting sensitive equipment from electrical damage.
Wide Operating Range: Can operate in extreme conditions with a temperature range of -40°C to 85°C and a storage range of -40°C to 105°C.
Rugged Design: Built to withstand harsh environments with vibration resistance (5 g peak-to-peak) and shock resistance (50 g, 11 ms).
Communication Protocols: Supports various communication protocols, including Modbus, Ethernet, and HART, ensuring compatibility with different control systems.

Technical Specifications:

Parameter	Specification
Model	CC-TAIX01
Input Types	Thermocouples (TC), RTD, Voltage, Current
Input Range	TC: -200°C to 1800°C
	RTD: -200°C to 600°C
	Voltage: 0 to 10 V
	Current: 0 to 20 mA
Accuracy	±0.25% of full scale
Resolution	12 bits
Isolation	2500 V
Operating Temperature Range	-40°C to 85°C
Storage Temperature Range	-40°C to 105°C
Humidity Range	5% to 95% RH (non-condensing)
Vibration Resistance	5 g peak-to-peak, 10 to 2000 Hz
Shock Resistance	50 g, 11 ms
Size	Compact design for easy integration
Weight	Lightweight, robust construction

Applications:

Process Control: Widely used in process control systems to monitor and control critical parameters like temperature, pressure, and flow in industrial environments.
Machine Control: Ideal for monitoring and controlling machinery such as pumps, compressors, and conveyors, ensuring optimal performance.
Building Automation: Commonly utilized in building automation systems for HVAC control, lighting systems, and security monitoring.
