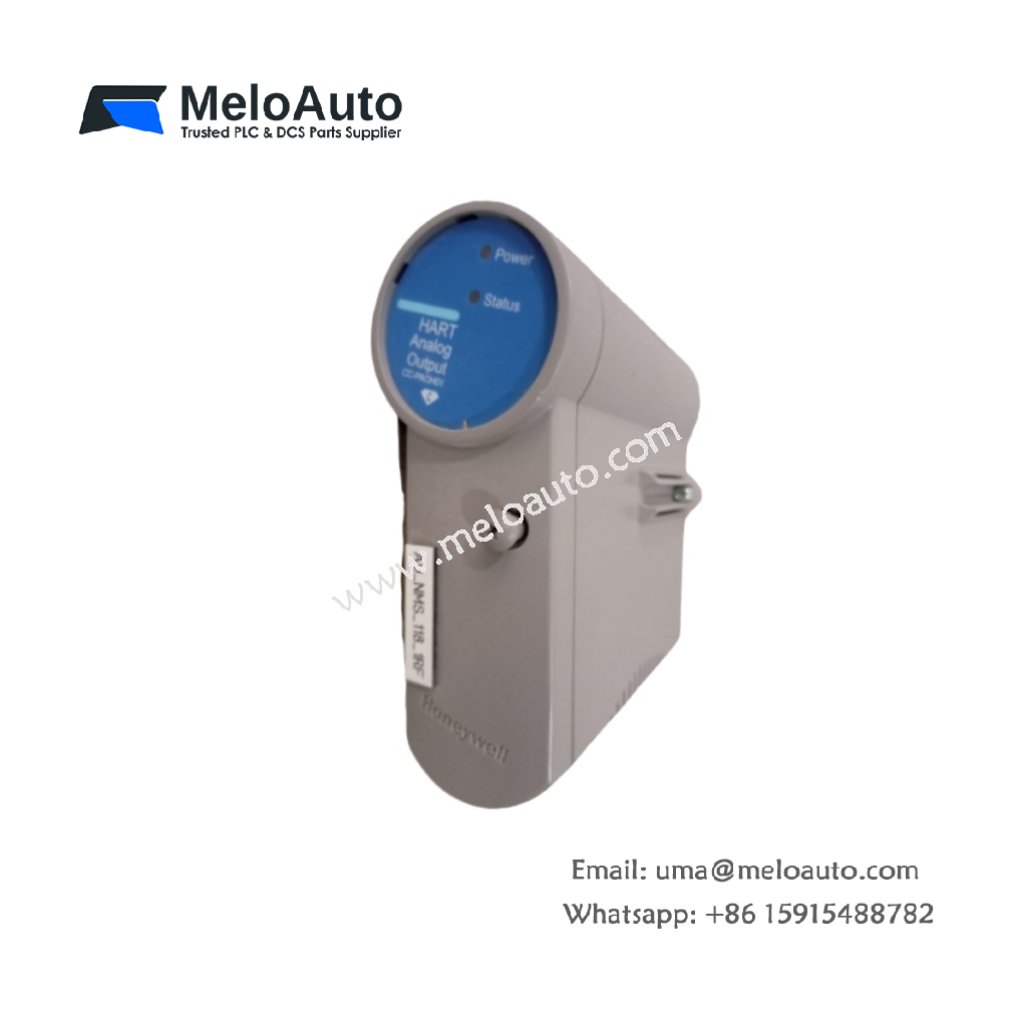

Honeywell CC-PAOH01 51405039-175 Analog Output Module

The Honeywell CC-PAOH01 51405039-175 is an advanced HART analog output module designed for precision and reliability in industrial control systems. It ensures accurate conversion of analog signals, making it ideal for applications that require real-time process monitoring. Whether used in temperature, pressure, or flow measurement systems, this module delivers consistent and high-quality performance, ensuring reliable results across a wide range of industrial environments.

Key Features:

Wide Input Voltage and Current Ranges: The module accepts input voltages from -10V to +10V and current ranges from 4mA to 20mA, providing great flexibility.
Exceptional Accuracy and Resolution: With an accuracy of ±0.05% of full scale and a resolution of 12 bits, the module guarantees precise measurements.
Fast Update Rate: The 100ms update rate allows the system to respond quickly to changes in process variables, ensuring timely control actions.
Easy Configuration: Its straightforward configuration process simplifies integration into various systems, making setup fast and efficient.

Product Specifications:

Specification	Details
Model	CC-PAOH01 51405039-175
Input Voltage Range	-10V to +10V
Input Current Range	4mA to 20mA
Accuracy	±0.05% of Full Scale
Resolution	12 bits
Update Rate	100 ms
Output Type	4-20 mA HART Analog Output
Output Channels	16
Output Ripple	< 100 mV peak-to-peak at power line frequency
Output Temperature Drift	0.005% of Full Scale/°C
Output Readback Accuracy	±0.05% of Full Scale
Output Current Linearity	±0.35% of Full Scale (25°C) including linearity
Calibrated Accuracy	±0.05% of Full Scale
Max Resistive Load	800 ohms
Max Output Compliant Voltage	22V
Max Open Circuit Voltage	16V
Response Time	Settles to within 1% of final value within 80 ms
Switchover Gap (0 mA)	10 ms maximum (applies to redundancy only)

Cooling and Mounting:

The Honeywell CC-PAOH01 51405039-175 module is designed for easy installation and efficient cooling. It fits seamlessly into standard industrial racks and features an advanced heat dissipation system that ensures stable performance in high-temperature environments.

Applications:

The module is ideal for various industrial applications, including:

Temperature Measurement: Ensures accurate and reliable temperature monitoring.
Pressure Measurement: Provides precise pressure readings for various industrial processes.
Flow Measurement: Suitable for accurate flow measurement in industrial control systems.
Level Measurement: Excellent for level measurement in tanks, silos, and other containers.
Process Control: Ensures efficient and precise process control with real-time data feedback.
Machine Monitoring: Reliable for monitoring the health and performance of machinery.
Data Acquisition: Collects and transmits data from different industrial processes for analysis and optimization.

Why Choose the Honeywell CC-PAOH01 51405039-175?

The Honeywell CC-PAOH01 51405039-175 stands out for its high accuracy, wide input range, and fast update rate, making it an essential component in industrial automation. It integrates easily into existing systems, ensuring reliability and precision across multiple applications. Whether you’re dealing with high-frequency measurements or need consistent data over time, this module delivers exceptional performance for critical control systems.
