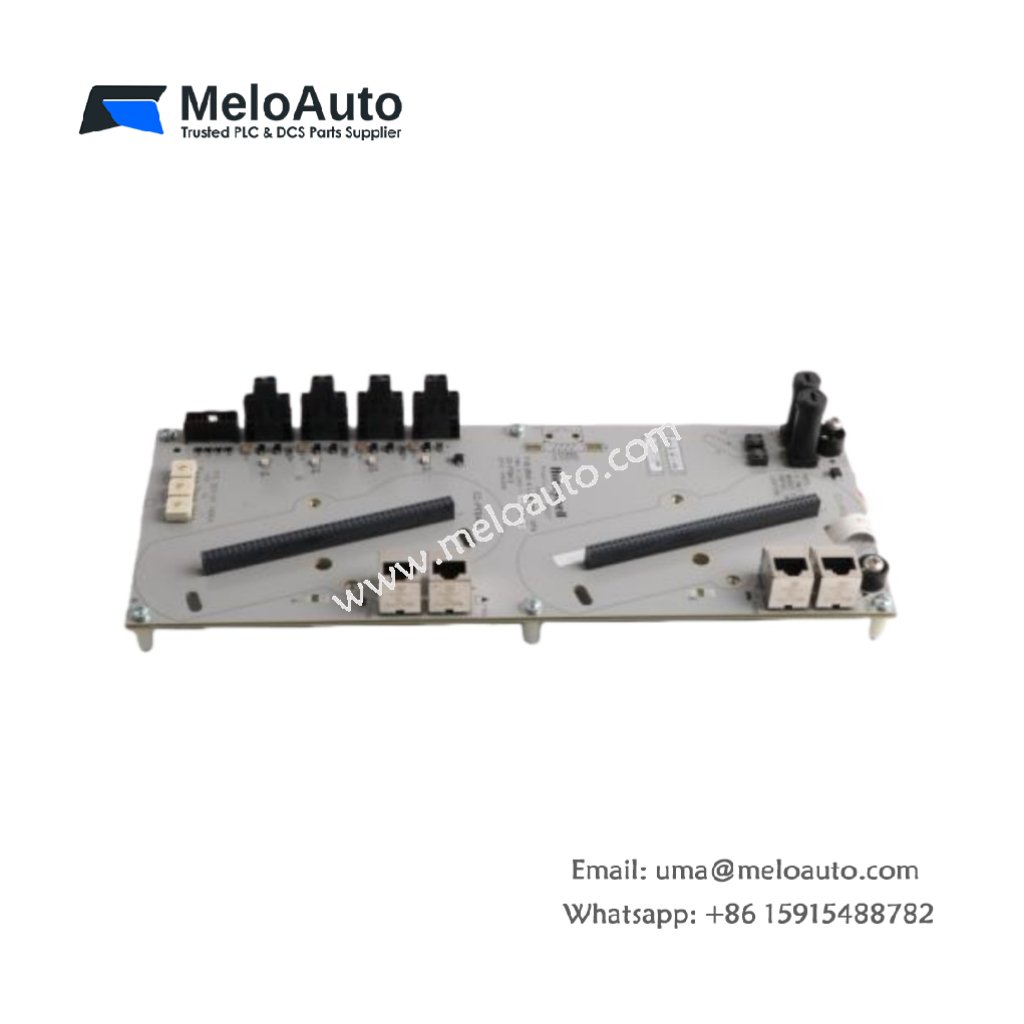

Honeywell 900RTA-L001 Analog Input RTP Module

The Honeywell 900RTA-L001 is a high-performance analog input remote terminal panel (RTP) module, specifically designed for use within the Honeywell HC900 series of programmable logic controllers (PLCs). It acts as a critical link between an HC900 PLC and up to eight analog input devices, providing efficient and reliable integration in industrial applications.

Key Features:

High Accuracy: Offers excellent accuracy for precise signal measurement across the entire input range.
High Resolution: Features a 12-bit resolution, ensuring fine-grained data measurement.
Wide Input Range: Supports an input range from 0 to 10V DC, making it versatile for various applications.
Flexible Communication: Uses Modbus RTU protocol, allowing easy integration with different systems.
Low Power Consumption: Operates with only 10W of power, ensuring energy efficiency.
Wide Operating Temperature: Works effectively in environments ranging from -20°C to 60°C (-4°F to 140°F).
Rugged Construction: Built to withstand industrial environments, ensuring long-term reliability.
Easy Installation and Maintenance: Simplified setup and maintenance for ease of use in automation systems.

Technical Specifications:

Parameter	Details
Brand/Manufacturer	Honeywell
Model	900RTA-L001
Product Type	Analog Input Remote Terminal Panel (RTP)
Number of Inputs	8
Input Type	Analog
Input Range	0 to 10V DC
Accuracy	±0.5% at input range
Resolution	12 bits
Output Type	Digital
Output Format	16-bit binary
Baud Rate	9.6 kbps to 115.2 kbps
Communication Protocol	Modbus RTU
Power Supply	24 VDC
Power Consumption	10W
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Humidity Range	5% to 95% non-condensing
Vibration	5g
Shock	50g

Advantages of the Honeywell 900RTA-L001:

Precise and Accurate: With ±0.5% accuracy and 12-bit resolution, it ensures accurate data capture for critical monitoring.
Flexible Integration: The Modbus RTU communication protocol supports seamless integration with various industrial devices.
Robust Design: The unit’s rugged construction and wide temperature tolerance make it ideal for industrial applications.
Energy Efficient: Operating with only 10W power consumption, it helps reduce energy costs.
Ease of Use: Simple installation and low-maintenance requirements ensure minimal downtime and increased productivity.

Why Choose the Honeywell 900RTA-L001?

The Honeywell 900RTA-L001 is the perfect solution for applications that require reliable, high-resolution analog input measurement. It integrates effortlessly with Honeywell HC900 PLCs and provides critical input-to-output conversion with high accuracy and low energy consumption. Whether you’re dealing with temperature measurement, pressure sensors, or other analog devices, this RTP module is built to perform in demanding industrial environments.
