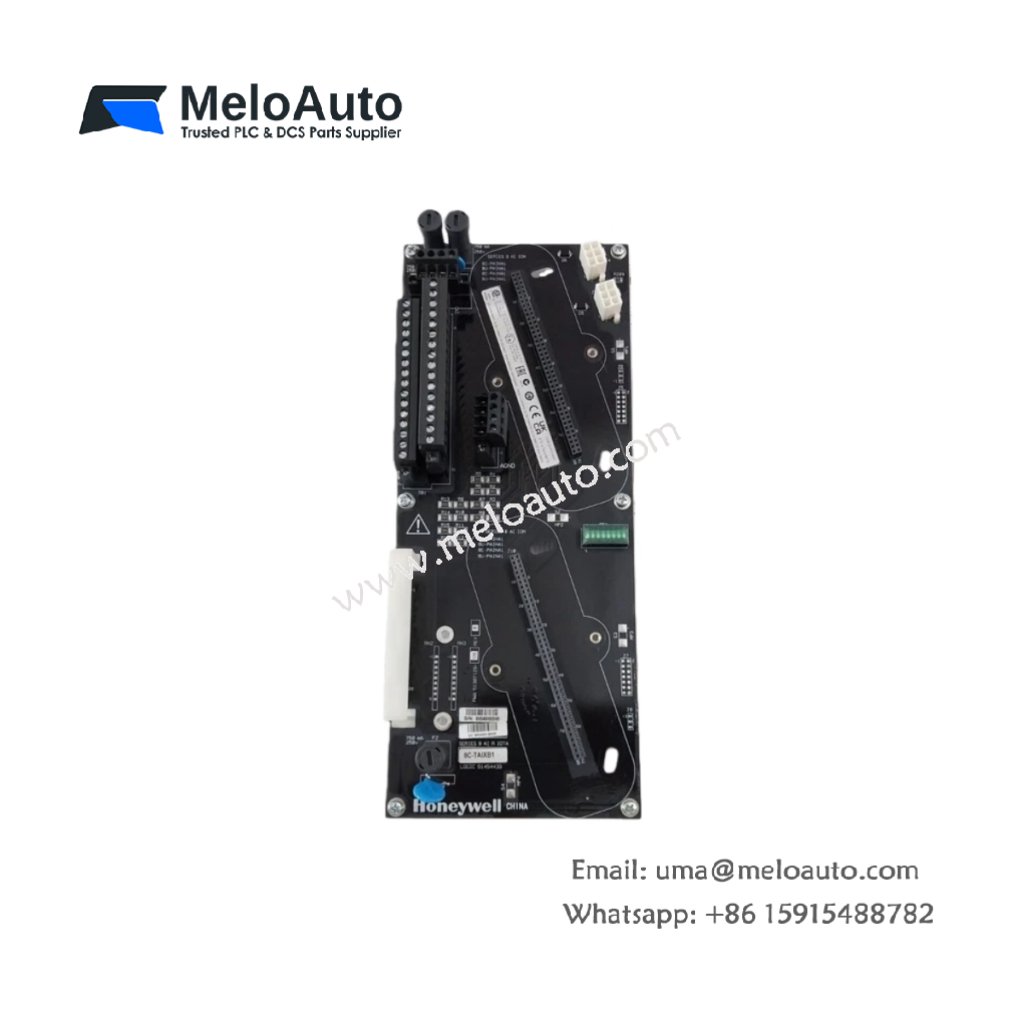

Honeywell 8U-PAINA1 16-Channel Analog Input Module

The Honeywell 8U-PAINA1 is a high-performance analog input module designed for seamless integration with the Honeywell Experion Process Knowledge System (PKS). This module connects a range of analog field devices to the control system, ensuring accurate signal measurement and reliable performance in industrial automation settings.

Key Features

16 Channels: Supports up to 16 analog input channels, providing flexibility for diverse applications.
Multiple Input Types: Compatible with various input signals, including 4-20 mA current loops and 0-10 VDC voltage signals.
High Accuracy: Delivers an accuracy of ±0.1% to ensure reliable and precise data collection.
Ground Loop Protection: The module includes isolated inputs to protect against harmful ground loops, ensuring system integrity.
Coated for Durability: Features a protective coating, guarding the module from dust, moisture, and other environmental hazards.
Easy Installation: Simplifies both installation and maintenance for maximum operational uptime.

Technical Specifications

Specification	Details
Model	8U-PAINA1
Number of Channels	16
Input Type	Analog
Input Voltage Range	-10 to +10 VDC
Input Current Range	4 to 20 mA
Accuracy	±0.1%
Operating Temperature	-40°C to +85°C (-40°F to 185°F)
Humidity	5% to 95% RH, non-condensing
Dimensions	19″ x 3.5″ x 8″
Weight	10 lbs (approximately 4.5 kg)

Applications

The Honeywell 8U-PAINA1 is ideal for applications that require precise analog signal measurement, including:

Process Control: Accurate monitoring and regulation of industrial processes.
Data Acquisition: Collecting real-time data from field devices for analysis and reporting.
Monitoring and Control: Ensuring optimal performance of industrial automation systems.
Industrial Automation: Ideal for use in diverse industries, including manufacturing, power generation, and chemical processing.
