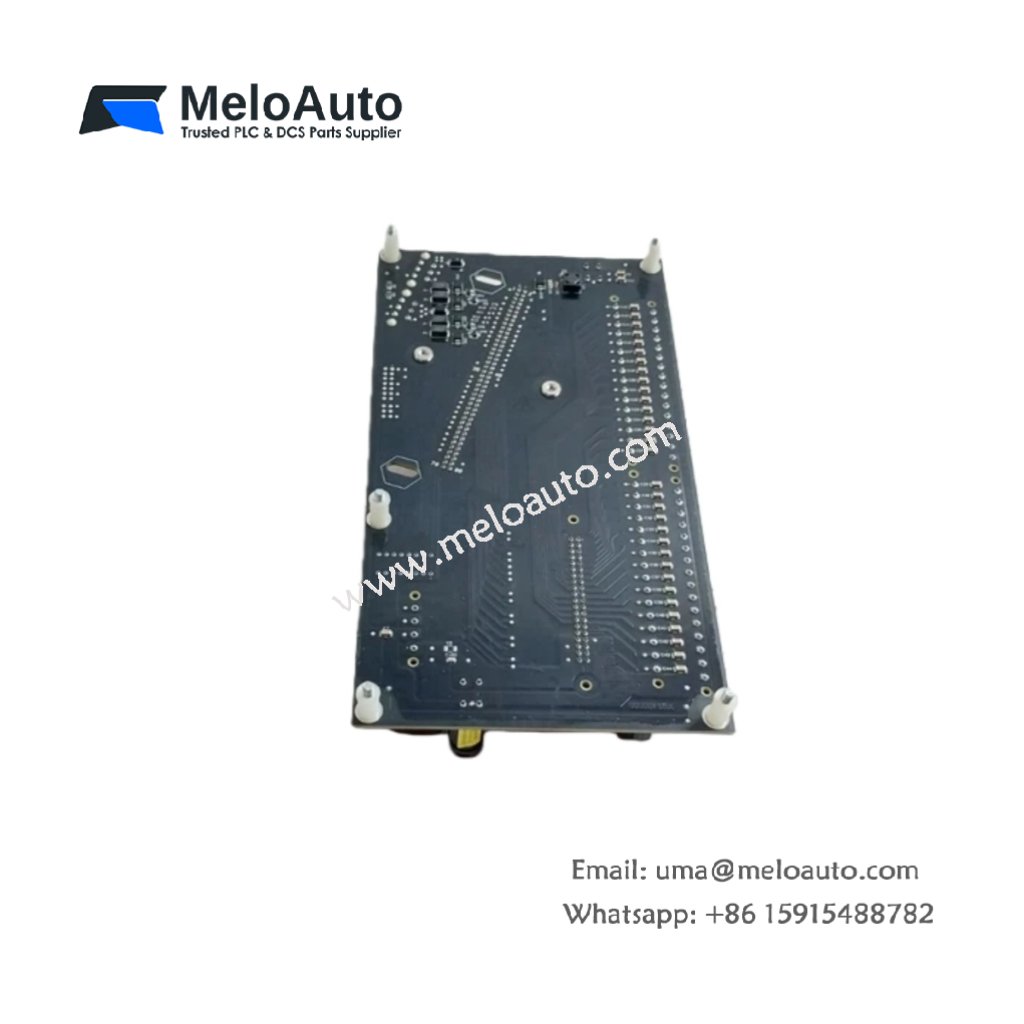

Honeywell 51307149-175 24V Digital Output Module

The Honeywell 51307149-175 is a highly reliable 24V Digital Output Module designed for precise control of various industrial equipment. This module effectively switches output signals, making it ideal for controlling process equipment, solenoid valves, and interposing relays. It integrates seamlessly into automation systems and offers excellent safety features.

Key Features

Reliable Output Control: The 51307149-175 can latch the output state, ensuring it holds the last value until a new command is received. It also supports pulsed output for short-duration signals and pulse-width modulation (PWM) for controlling power delivery to loads, such as motor speed or lighting dimming.
Extensive Diagnostics: The module provides comprehensive diagnostics to maintain data integrity, which guarantees its reliable operation in various applications.
Optional Redundancy: With optional redundancy features, the 51307149-175 allows for backup functionality in case of module failure, ensuring uninterrupted operation of critical systems.
Safe-State Behavior (FAILOPT): This feature allows the module to be configured to either hold the last output value or switch to a predefined safe value in the event of a failure, increasing safety and system resilience.
Galvanic Isolation: Optional galvanic isolation protects the module’s field outputs from system power, reducing the risk of damage due to electrical noise and enhancing system safety. This feature requires an external power supply.

Technical Specifications

Specification	Details
Model	51307149-175
Type	24V Digital Output Module
Output Voltage	24 VDC
Output Types	Latched, Pulsed, PWM
Diagnostics	Yes
Redundancy	Optional
Safe-State Behavior	Configurable (Hold or Shed)
Galvanic Isolation	Optional (Requires external power)
Power Supply	System or External 24VDC
Operating Temperature	-40°C to +70°C
Dimensions	6.8 x 4.3 x 2.5 inches (172 x 110 x 64 mm)
Weight	0.5 kg

Applications

The Honeywell 51307149-175 is ideal for industrial applications, including:

Process Control Systems: Reliable digital output switching for various equipment and machines.
Solenoid Valves: Ensures efficient control of valves in fluid or gas control systems.
Interposing Relays: Acts as a signal intermediary for triggering other devices or systems.
Automation Systems: Perfect for integration into automation and control systems requiring flexible output options and high reliability.

This module meets the needs of industries where downtime must be minimized and safety standards must be high.
