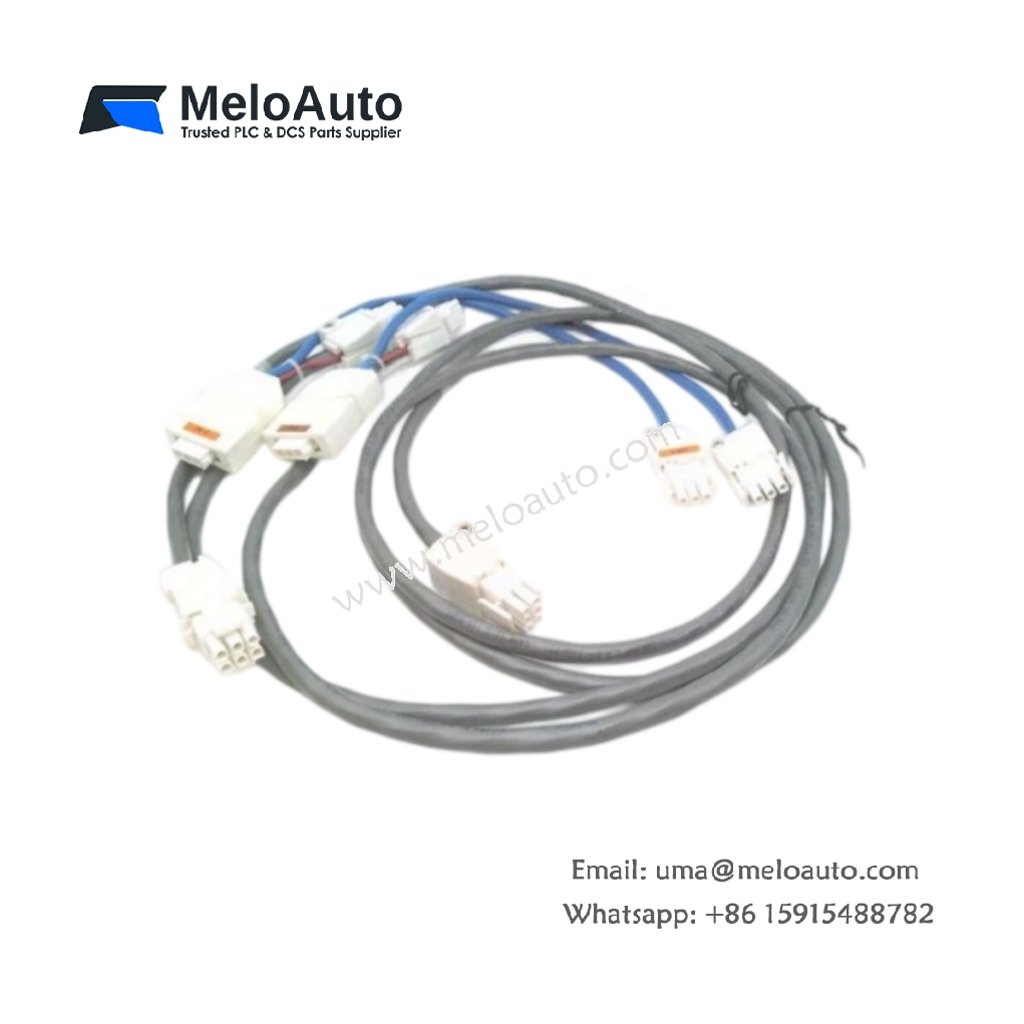

Honeywell 51204037-005 Shielded Power Distribution Cable Specs

The 51204037-005 shielded power distribution cable from Honeywell carries DC power between control system components. This cable routes supply voltage through cabinets while blocking electromagnetic interference. Engineers select this cable when they need dependable power delivery and clean signal separation.

Technical Specifications

Parameter	Specification
Product Model	51204037-005
Module Type	Shielded Power Distribution Cable
Cable Function	DC power distribution between system components
Interface	Terminated connectors at both ends
Mounting	Flexible routing inside cabinet or tray
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Weight	Approx. 0.45 kg
Length	Approx. 1.5 m
Cable Diameter	Approx. 9 mm
Shielding	Braided and foil shield for noise immunity
Component Count	Two terminated connector ends per cable

Interface and Connection Details

The 51204037-005 terminates with connectors at both ends and plugs directly into system components. Braided and foil shielding blocks interference from motors and drives. Therefore, technicians gain stable power transfer without extra conduit or filters. The flexible jacket bends easily around cabinet corners and cable trays.

Physical and Environmental Parameters

The cable spans roughly 1.5 m and weighs about 0.45 kg. Its 9 mm diameter fits standard cable trays and keeps routing tidy. Meanwhile, the 0°C to 60°C operating range covers typical control room conditions. The dual shield construction keeps electrical noise away from sensitive power lines during plant operation.

Why This Cable Matters

Plant teams value the 51204037-005 for its dependable power transfer and easy installation. The shielding protects supply lines from drive and motor interference. As a result, voltage ripple drops and communication errors decrease. Technicians also appreciate the sturdy connectors and clear length marking.
