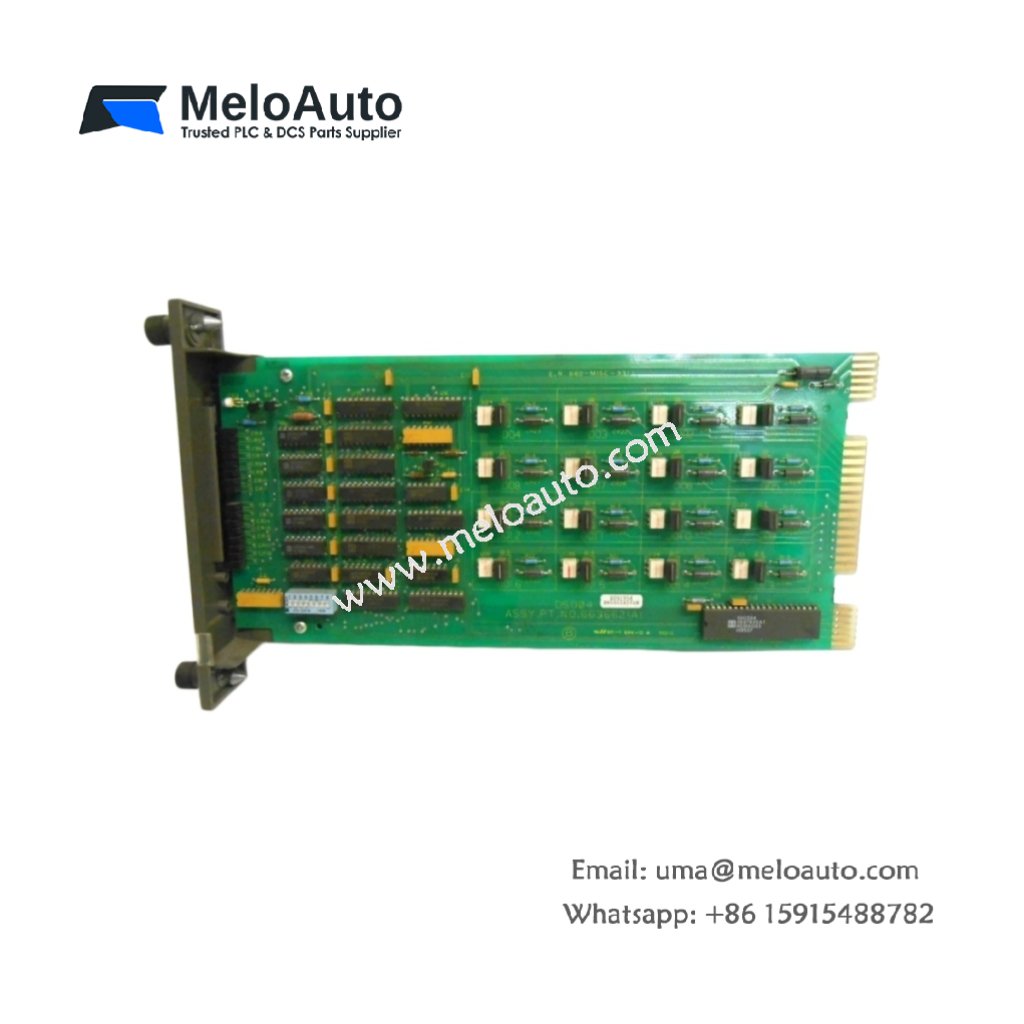

ABB Bailey NMFP01 Multi-Function Processor

This multi-function processor serves as the main controller for ABB Bailey INFI 90 automation systems. It executes complex control strategies for turbine and process applications. Therefore, it delivers high-performance real-time control for power generation plants.

Physical and Processor Specifications

The ABB Bailey NMFP01 measures 25.0 cm in length and 18.0 cm in width. Moreover, its processor weight equals approximately 0.98 kg for rack mounting. A single 48-pin male connector links this processor to the INFI 90 backplane. Additionally, the unit includes multiple communication ports and extensive memory.

Processing Performance and Memory Architecture

The ABB Bailey NMFP01 features a 66 MHz 32-bit RISC processor for high-speed control. Specifically, the 1 MB program memory stores complex ladder, FBD, and SFC applications. In addition, the 512 kB data memory holds process variables and retentive values. Moreover, the execution speed of 0.2 µs per Boolean instruction ensures extremely fast response. Furthermore, a lithium battery retains RAM contents for up to five years. Consequently, this multi-function processor delivers high-performance control for demanding INFI 90 applications.

Multiple Communication Ports and Expansion

You will find three communication ports on this multi-function processor. For instance, two RS-232 ports support Modbus RTU and Bailey PC90 for HMI and SCADA connectivity. In addition, the RS-485 port handles the multibus loop for high-speed peer-to-peer communication. Moreover, the PCMCIA slot accepts memory cards for program backup or protocol expansion. Furthermore, the processor supports up to 4096 digital I/O points with expansions. Thus, this processor integrates seamlessly into large INFI 90 automation architectures.

Built-In Real-Time Clock and Advanced Task Management

This multi-function processor includes a real-time clock for time-stamped events. Specifically, the clock retains date and time during power loss using battery backup. In addition, the CPU supports cyclic, periodic, event, and interrupt tasks flexibly. Moreover, a built-in watchdog timer monitors program execution for faults continuously. Furthermore, the processor can handle four independent programming languages in one application. Therefore, the ABB Bailey NMFP01 meets demanding response time requirements for complex turbine control.

Energy Storage and Data Integrity

This multi-function processor stores energy using six onboard capacitors for power filtering. Specifically, four electrolytic capacitors smooth the 5 VDC supply for stable processor operation. In addition, two tantalum capacitors provide high-frequency noise suppression for communication circuits. Moreover, a real-time clock with battery backup logs system events. Furthermore, the multibus loop controller provides redundancy for critical data exchange. Thus, the ABB Bailey NMFP01 preserves system settings and process data for up to five years without external power.

Installation and Diagnostic Indicators

Nine LED indicators provide operational status at a glance on this processor. First, a green Power LED lights when the 5 VDC backplane supply is present. Second, a green Run LED flashes during normal program execution. Third, a red Fault LED indicates hardware or software errors. Fourth, a yellow Battery Low LED warns when the backup battery needs replacement. Fifth, three yellow Port Activity LEDs illuminate during data transmission or reception on each port. Finally, a yellow Multibus Active LED shows expansion bus communication. Additionally, the module includes a locking ejector for secure backplane insertion. Thus, you can diagnose system health instantly without external tools.
