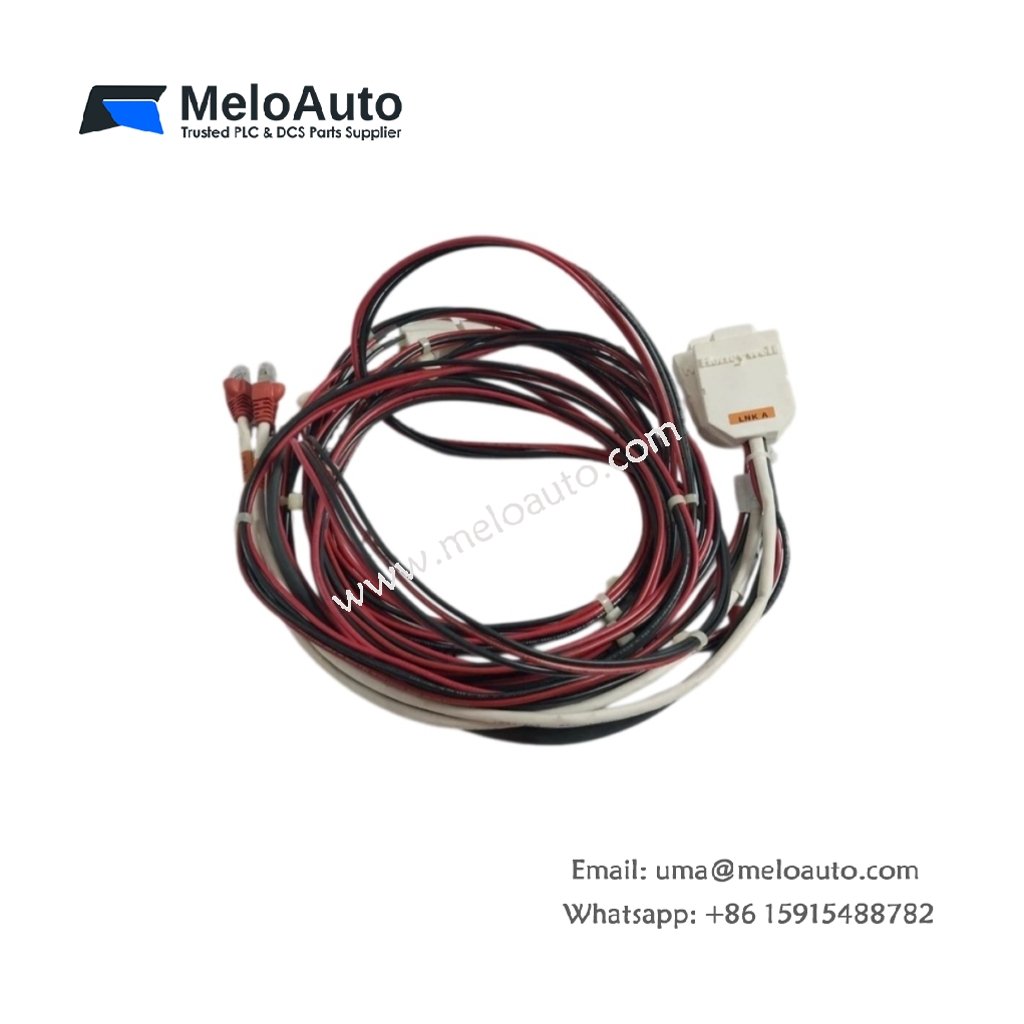

Honeywell 51202306-005 High-Speed I/O Link Cable Specs

The 51202306-005 high-speed I/O link cable from Honeywell carries fast control data between processors and remote I/O racks. This cable supports high throughput across cabinet and inter-cabinet runs. Engineers select this cable when they need dependable high-speed connectivity and quick plug-in installation.

Technical Specifications

Parameter	Specification
Product Model	51202306-005
Module Type	High-Speed I/O Link Cable
Cable Function	High-speed signal transfer between processor and I/O racks
Interface	Terminated connectors at both ends
Mounting	Flexible routing inside cabinet or tray
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Weight	Approx. 0.40 kg
Length	Approx. 1.5 m
Cable Diameter	Approx. 8 mm
Shielding	Braided shield with drain wire
Component Count	Two terminated connector ends per cable

Interface and Connection Details

The 51202306-005 terminates with connectors at both ends and plugs directly into processor and I/O ports. Braided shielding with a drain wire blocks interference from nearby drives and power lines. Therefore, technicians gain clean high-speed data transfer without extra filters. The flexible jacket bends easily around cabinet corners and cable trays.

Physical and Environmental Parameters

The cable spans roughly 1.5 m and weighs about 0.40 kg. Its 8 mm diameter fits standard cable trays and keeps routing tidy. Meanwhile, the 0°C to 60°C operating range covers typical control room conditions. The shield construction keeps electrical noise away from sensitive high-speed lines during plant operation.

Why This Cable Matters

Plant teams value the 51202306-005 for its dependable high-speed transfer and easy installation. The shielding protects data lines from drive and motor interference. As a result, link errors drop and communication stays stable under heavy traffic. Technicians also appreciate the sturdy connectors and clear length marking.
