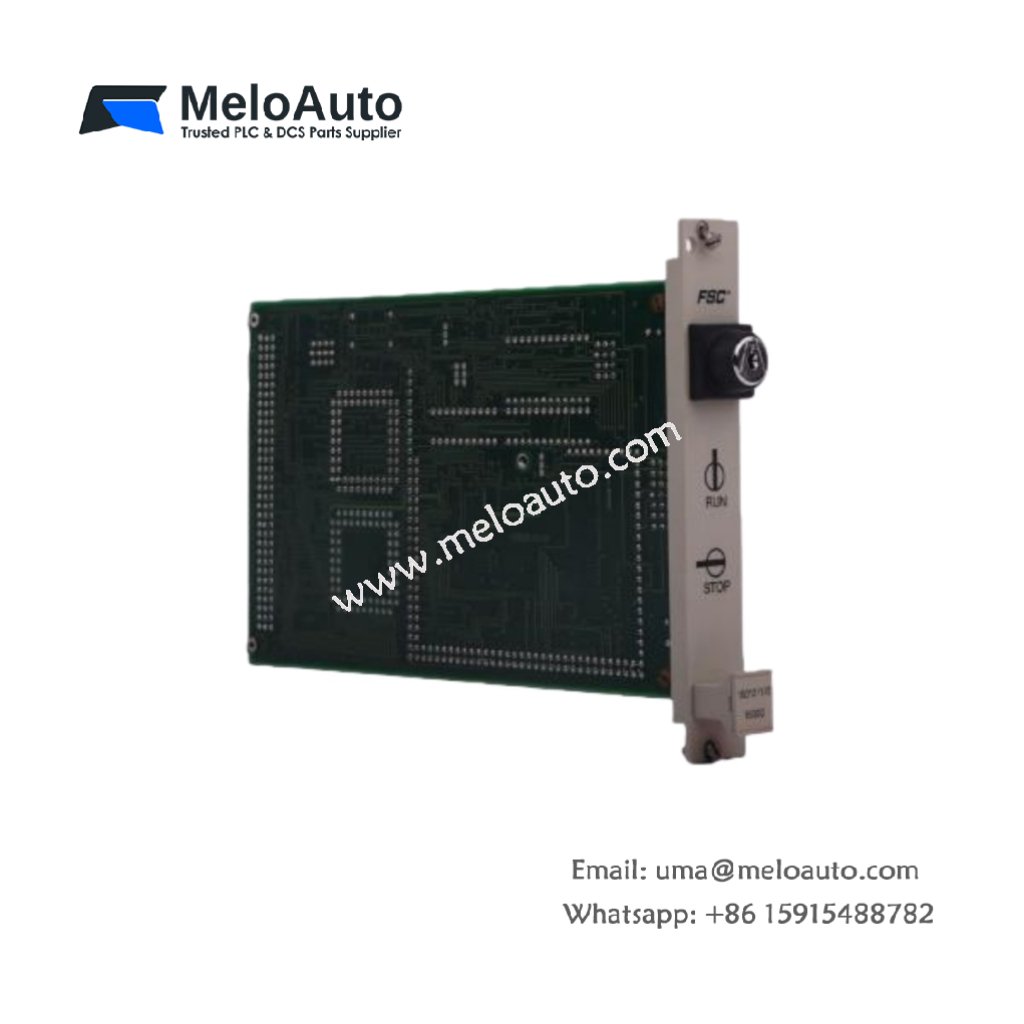

Honeywell 10102/2/1 FSC Fail-Safe Digital Input Module

Product Overview

The Honeywell 10102/2/1 FSC Fail-Safe Digital Input Module is an essential component for ensuring safety in industrial automation. Part of Honeywell’s Fail-Safe Controller (FSC) series, it monitors digital input signals to guarantee fail-safe operations in safety-critical applications. With a robust design, the module is ideal for process control systems where reliability and safety are paramount.

Key Features

Fail-Safe Design: Equipped with a redundant input stage and a microcontroller that monitors inputs for faults, the 10102/2/1 ensures continuous safe operation. If any fault is detected, the module outputs a safe value to the connected PLC.
High Input Impedance: Designed to handle high-impedance sensors such as thermocouples and RTDs, offering flexibility in various applications.
Parallel Connection: You can connect two 10102/2/1 modules in parallel, effectively doubling the number of input channels for expanded system needs.
Comprehensive Diagnostics: This module provides advanced diagnostic features, including input range checking, broken wire detection, and sensor short-circuit detection.

Technical Specifications

Specification	Details
Model	Honeywell 10102/2/1
Product Type	FSC Fail-Safe Digital Input Module
Input Channels	4
Input Voltage Range	0-2 Vdc
Input Resistance	> 100 kOhm
Loop Current Limit	> 21 mA (solid state)
Software Version	≥ 3.00
Conversion Time	1 ms
Resolution	12 bits
Accuracy	±0.1% FS
Operating Temperature Range	-40°C to +85°C
Supply Voltage	24 V DC
Space Requirements	4 TE, 3 HE (equivalent to 4 HP, 3U)
Shipping Weight	3 kg

Dimensions and Weight

Dimensions: 3.5 cm x 14 cm x 14.5 cm
Weight: Approximately 3 kg.

Applications

The Honeywell 10102/2/1 module is designed for use in safety-critical environments. Common applications include:

Process Control Systems: Ensures accurate and fail-safe digital input monitoring in systems like temperature control, pressure monitoring, and more.
Safety-Critical Applications: Perfect for industries such as chemicals, power generation, and oil & gas, where high reliability is crucial.

Product Benefits

Safety Assurance: The fail-safe design is crucial for applications where system integrity and safety are critical.
Flexibility: With high input impedance and parallel connection capability, it offers flexible integration with various sensors and system setups.
Ease of Integration: Easily integrates into Honeywell FSC systems, ensuring seamless operation and advanced diagnostics.
