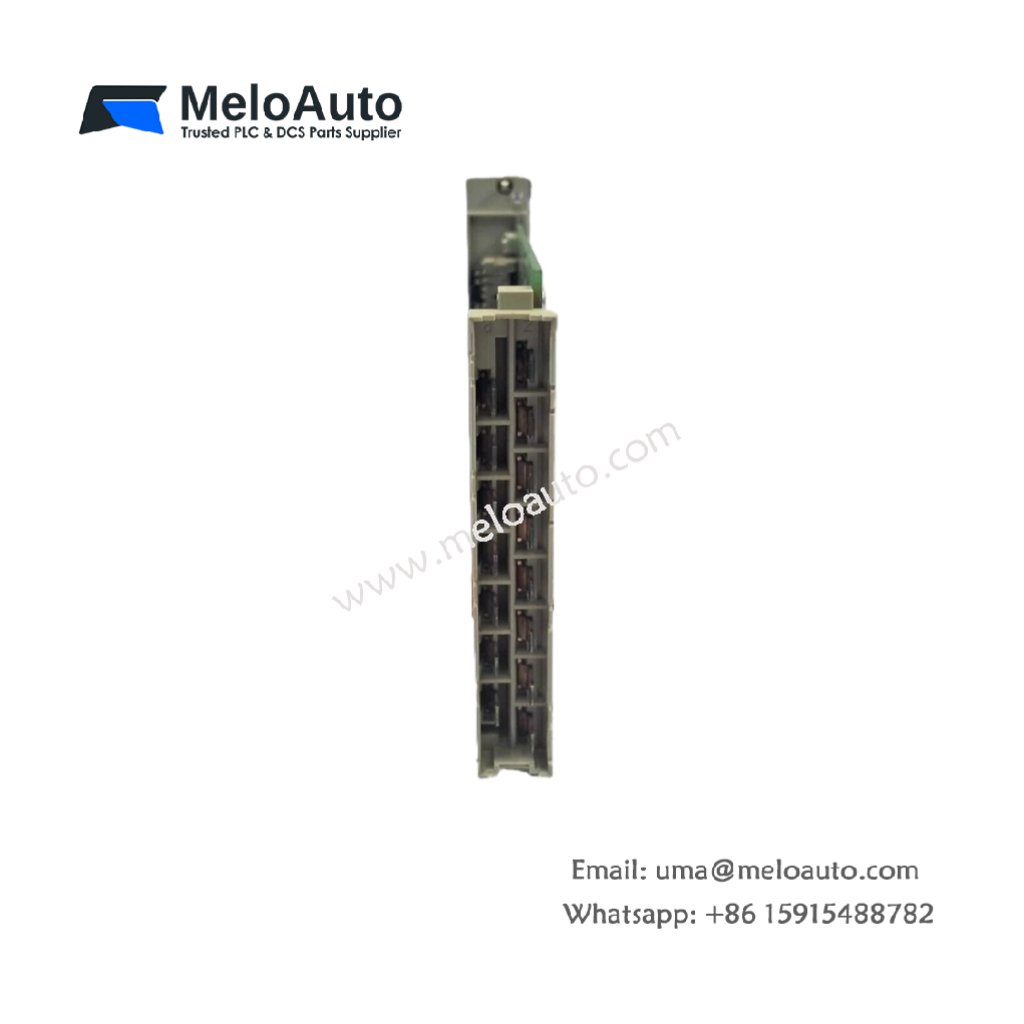

HIMA F7133 | Fuse Monitoring and Protection Module

Overview

The HIMA F7133 is an advanced fuse monitoring and protection module designed to ensure the operational reliability of safety-critical systems. Equipped with four miniature fuses, the module monitors the status of each fuse with clear LED indicators, providing real-time fault detection. In case of a fault, the relay quickly de-energizes, preventing damage to the system. This module plays a crucial role in ensuring continuous, safe operation, especially in high-stakes industrial environments.

Key Features

• Fuse Protection: It integrates four miniature fuses, each actively monitored and indicated via LED lights for quick status identification.
• Real-Time Monitoring: Active fuse monitoring ensures that faults are detected instantly, reducing system downtime.
• Fast Response Time: The relay switches in just 100 ms, ensuring rapid action in fault conditions.
• Relay Operation: The relay remains closed when all fuses are intact, but it de-energizes immediately if any fuse fails or is missing, enhancing safety.
• Clear Fault Indicators: With dedicated LED indicators, the module provides visual cues for supply voltage status and fuse health, ensuring users can act promptly.

Technical Specifications

Module Functionality and Connection Details

• Fuse Protection: The HIMA F7133 module utilizes four miniature fuses for robust line protection. Each fuse has a corresponding LED indicator, showing whether the fuse is operational or faulty.
• Fuse Monitoring: The module actively monitors each fuse’s status, signaling issues with flashing LEDs. When all fuses are intact, the LED remains off, ensuring straightforward operation.
• Relay Operation: If all fuses are functioning correctly, the relay contact is closed. If any fuse is faulty, the relay de-energizes immediately to protect the system.
• LED Fault Indicators:
  • LED on: Supply voltage is functioning correctly.
  • LED off: Fuse is operating normally.
  • LED flashing: Fault detected in the fuse.

Benefits

• Enhanced System Protection: By monitoring fuse status continuously, the module ensures that potential faults are identified early, minimizing system risk.
• Rapid Fault Response: The module’s fast switching time of just 100 ms guarantees that faults are managed promptly, protecting the overall system.
• Visual Fault Indicators: The LED indicators offer clear, real-time feedback, enabling operators to quickly assess system health and respond to faults.
• Reliable Load Management: The continuous load capacity of 30 V / 4 A ensures that the module delivers stable performance, even under demanding conditions.

Applications

The HIMA F7133 is widely used in process control systems, industrial automation, and safety-critical applications. It provides essential protection for industrial machines and systems, making it ideal for:

• Process Control: Safeguarding essential system lines and ensuring reliable operation.
• Industrial Automation: Protecting automation systems by monitoring fuse health and fault conditions.
• Safety Systems: Crucial for emergency shutdown systems, ensuring operational continuity.
