HIMA F7130 | Power Distribution Module

Overview

The HIMA F7130 is a high-performance power distribution module, designed for integration within the HIMA HIMatrix safety controller system. This compact module plays a crucial role in supplying power to system modules and distributing power to field devices. Engineered for high reliability, it offers excellent fault tolerance, making it ideal for safety-critical applications in industrial environments.

Key Features

Efficient Power Distribution: Converts and distributes 24 VDC from a main supply of 18 to 36 VDC to connected modules and field devices.
Electrical Isolation: Provides isolation between input and output voltages, ensuring safety and protection.
Overvoltage and Short-Circuit Protection: Equipped with overvoltage protection, current limitation, and short-circuit-proof outputs.

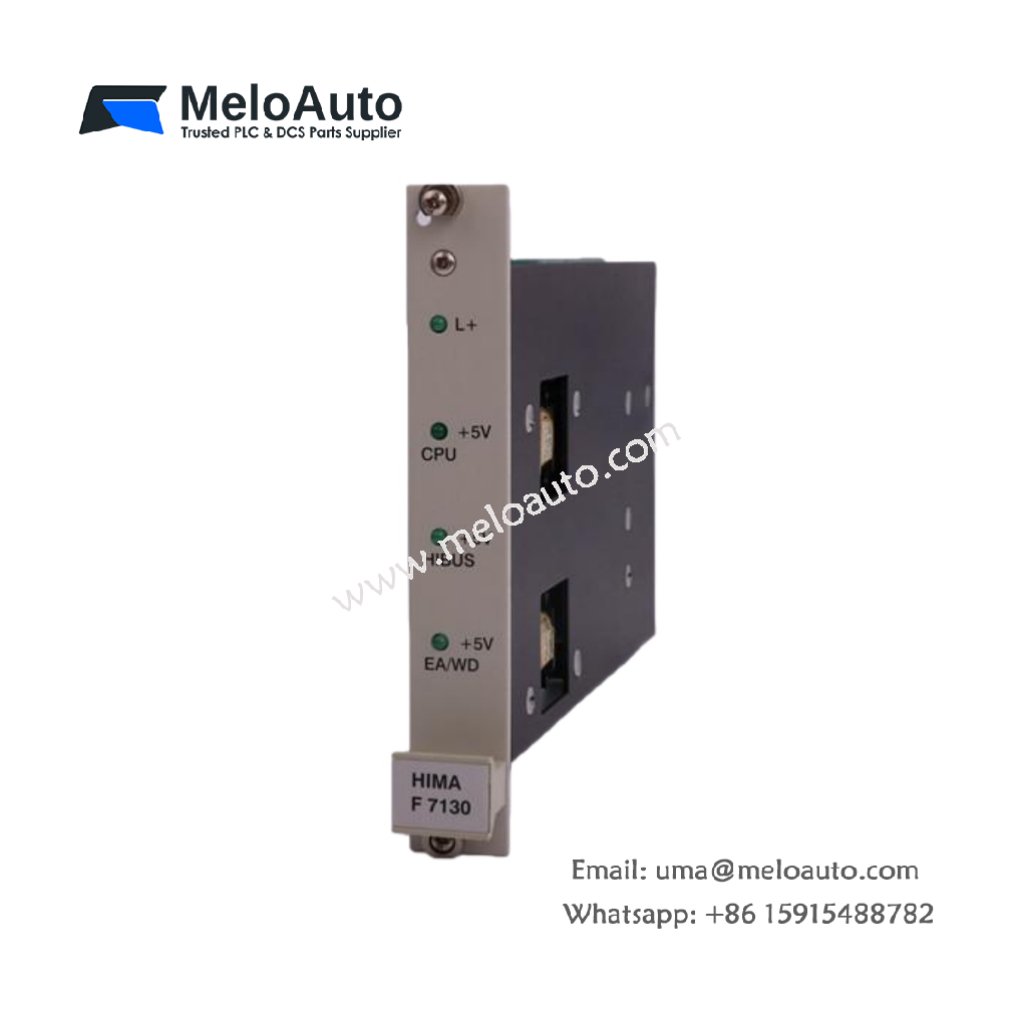

Visual Indicators: The LED indicators on the front plate show input voltage (L+) and output voltages for easy monitoring of the module’s status.
Modular Design: Its compact design allows for easy installation in control cabinets, optimizing space utilization.
High Reliability: Built for continuous, uninterrupted performance, making it highly suitable for safety-critical applications.

Technical Specifications

Parameter	Details
Model Number	HIMA F7130
Input Voltage	18 to 36 VDC
Output Voltage	24 VDC
Output Current	6.3 A
Number of Outputs	4
Isolation Voltage	2 kV
Efficiency	≥ 70%
Degree of Protection	IP20
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	0 to 95% RH (non-condensing)
Vibration	0.5 g peak-to-peak, 10 to 500 Hz
Shock Resistance	5 g, 11 ms half-sine
Space Requirement	4 SU
Primary Fuse	5 A gL

Benefits

High Efficiency: With an efficiency rate of ≥70%, the HIMA F7130 provides reliable power distribution while minimizing energy loss.
Compact and Flexible: Its modular design makes it easy to mount within a control cabinet, optimizing space usage in confined environments.
Safety-Critical Applications: Features such as overvoltage protection, current limitation, and short-circuit protection ensure the module operates safely in demanding industrial conditions.
User-Friendly Indicators: Clear LED indicators provide real-time monitoring of input and output voltages for effortless operation and troubleshooting.
Wide Temperature Range: Suitable for operation in a wide temperature range from -20°C to +70°C, ensuring reliability in various industrial environments.

Applications

The HIMA F7130 is ideal for various safety-critical applications, including:

Industrial Control Systems: Powering and distributing electricity to modules and devices in process control systems.
Safety Automation Systems: Integral to safety controllers in industries such as oil and gas, power generation, and manufacturing.
Field Device Power Supply: Distributes power to field devices in harsh industrial environments, ensuring uninterrupted performance.
