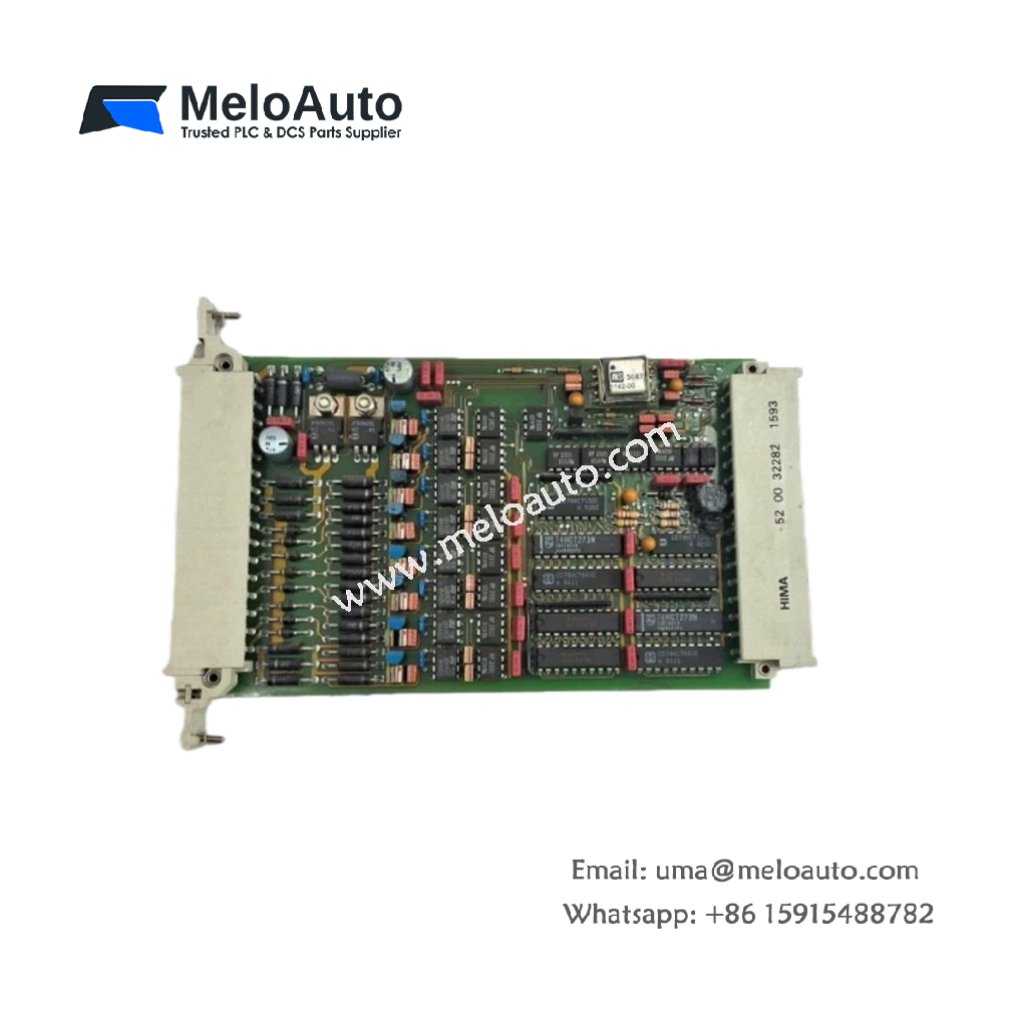

HIMA F3331 Output Component

The HIMA F3331 is a high-performance output component designed for use in safety-critical industrial applications. It delivers a 500 mA output current with short-circuit protection, ensuring reliable performance in complex systems. This component efficiently manages various output signals and offers seamless integration into HIMA control systems, making it ideal for demanding environments.

Key Features

Short-Circuit Protection: The HIMA F3331 supports 500 mA output current with short-circuit proof, ensuring system reliability.
Low Internal Voltage Drop: Maximum 2 V drop at 500 mA, improving energy efficiency.
Undervoltage Alarm: Triggers below 16 V, preventing system failures.
Leakage Current: Maintains leakage at a maximum of 350 μA.
Watchdog Monitoring: Provides a current input of 30 mA for continuous monitoring.
Compact Design: Requires only 4 TE of space, making it easy to integrate into existing systems.

Technical Specifications

Specification	Details
Output Current	500 mA, short-circuit proof
Internal Voltage Drop	Maximum 2 V at 500 mA load
Admissible Line Resistance	Maximum 11 Ohms (in + out)
Undervoltage Tripping	Triggers below 16 V
Short-Circuit Current	0.75 to 1.5 A
Line Break	0.5 to 9.5 mA
Output Leakage Current	Maximum 350 μA
Output Voltage (Reset)	Maximum 1.5 V
Current Input for Watchdog	Maximum 30 mA
Duration of Test Signal	Maximum 200 μs
Space Requirement	4 TE
Operating Current (5V DC)	130 mA
Operating Current (24V DC)	180 mA additional load

Applications

The HIMA F3331 excels in process control, automation, and safety monitoring applications. It integrates easily into HIMA control systems, ensuring smooth operation in safety-critical environments.

Design and Performance

Engineered for durability and precision, the HIMA F3331 operates efficiently at 5V DC and 24V DC. It ensures robust performance, even in extreme conditions, making it ideal for demanding industrial applications.
