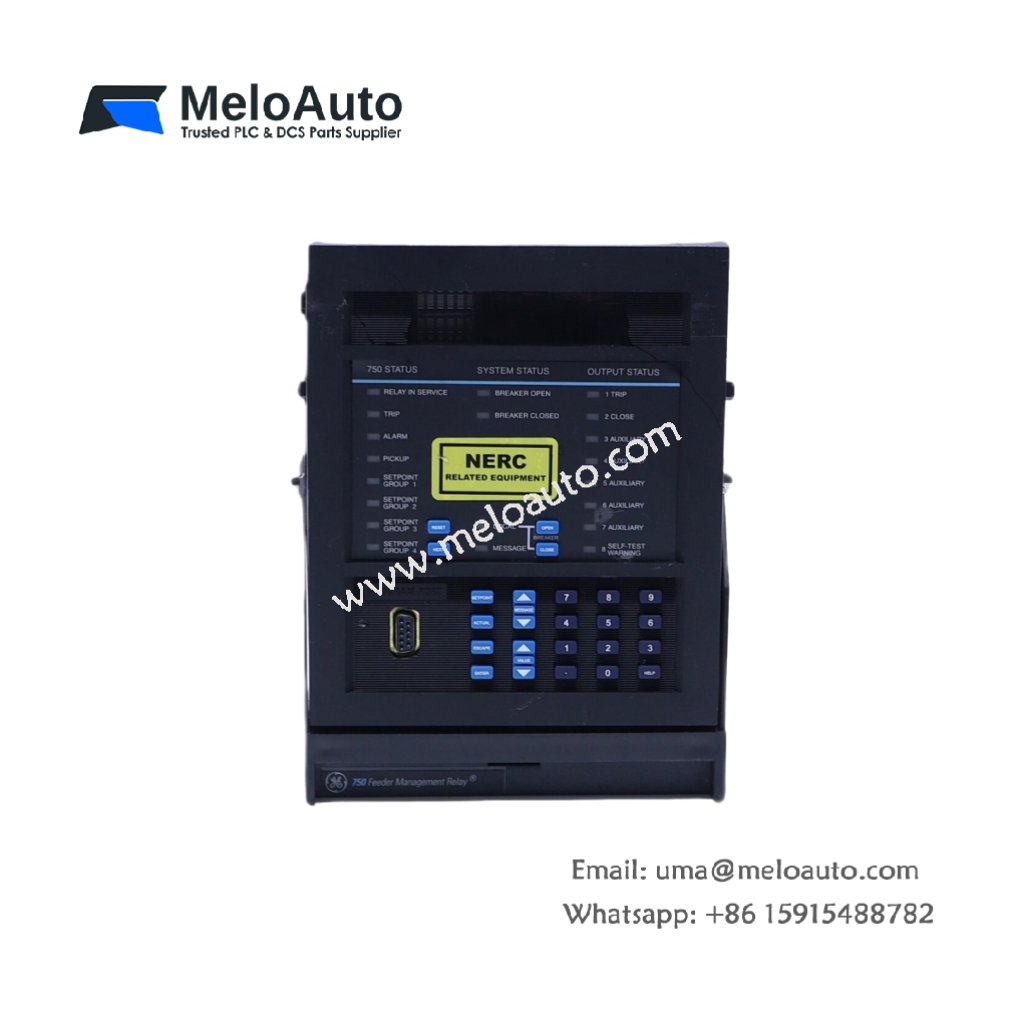

GE SR760 760-P1-G1-S1-HI-A20-R Feeder Management Relay

The GE SR760 760-P1-G1-S1-HI-A20-R is part of the GE Multilin 760 Series, offering advanced protection and control for electrical distribution systems. This digital protective relay ensures reliable overcurrent protection, fault detection, and breaker management for power feeders in industrial and utility applications.

Key Features of the GE SR760 760-P1-G1-S1-HI-A20-R:

Advanced Protection: Provides overcurrent protection, fault detection, and breaker management for efficient power distribution.
Current Inputs: Uses 1A current inputs for both phase and sensitive ground protection, ensuring accurate fault detection.
Control Power: Operates on low voltage control power, typically between 20-60V DC or 20-48V AC.
Breaker Management: Includes auto-reclose capabilities for quick recovery from faults, enhancing system reliability.
LED Indicators: The relay features a red LED indicator for easy status monitoring of the breaker.
Control Keys: Offers simple control keys for easy setting adjustments and monitoring.

Technical Specifications:

Parameter	Details
Product Type	Feeder Management Relay
Model	SR760 760-P1-G1-S1-HI-A20-R
Manufacturer	GE Multilin
Series	GE Multilin 760 Series
Functionality	Overcurrent protection, fault detection, breaker management
Current Inputs	1A (phase and sensitive ground protection)
Control Power	20-60V DC or 20-48V AC
LED Indicators	Red LED for breaker status
Control Keys	For setting adjustments
Application	Ideal for industrial and utility feeders, lines, and transformers
Dimensions	Compact design for easy integration
Mounting	Panel or rack-mounted

Description:

The is designed to provide comprehensive protection for electrical feeders, lines, and transformers. It excels in fault detection, overcurrent protection, and breaker management, making it ideal for use in both industrial and utility environments.

This relay operates with 1A current inputs, ensuring phase and sensitive ground protection for your electrical systems. The device also includes auto-reclose functionality, allowing the system to automatically reset after a fault, thus minimizing downtime. With 20-60V DC or 20-48V AC control power options, it is versatile and easily integrated into various setups.

The GE offers easy monitoring through a red LED indicator that shows the status of the breaker. Additionally, control keys on the unit allow for simple adjustments, ensuring the system meets your operational needs with ease.

Ideal Applications:

Electrical Distribution Systems: Provides protection for feeders, transformers, and lines.
Industrial Environments: Ensures safety and efficient power distribution.
Utility Applications: Supports critical infrastructure protection for electrical grids.
