GE QPI21100S2P | Operator Interface Display

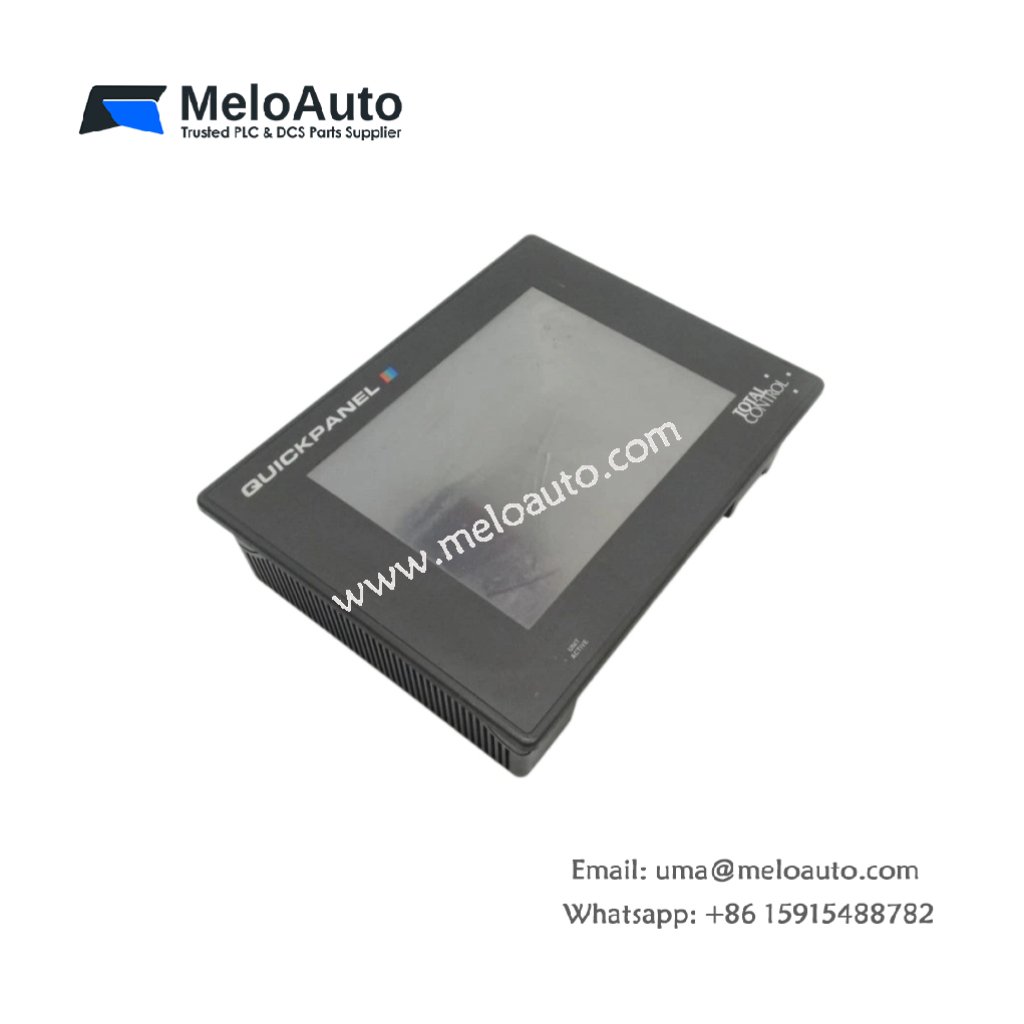

The GE QPI21100S2P provides a user-friendly operator interface for industrial automation systems. This HMI display features a 10.4-inch color touchscreen for intuitive machine control. It supports serial communication and Ethernet for flexible connectivity. Weighing only 1.8 kg, the GE QPI21100S2P mounts easily on a panel or swing arm. Its dimensions measure 290 mm x 230 mm x 55 mm.

Display Specifications and Touchscreen Features

The GE QPI21100S2P offers SVGA resolution (800 x 600 pixels) for clear graphics display. This touchscreen uses resistive technology for reliable operation even with gloves. It provides 65,536 colors for vivid screen visualization and alarm indication. Moreover, the GE QPI21100S2P includes LED backlighting with 50,000 hours of rated life. Consequently, you can operate this HMI for years without backlight replacement.

Communication Ports and Energy Storage

The GE QPI21100S2P features one RS-232 port and one RS-422/485 port for PLC connectivity. This display also includes a 10/100 Mbit/s Ethernet port for network integration. It provides USB host and USB device ports for data transfer and screen backup. Importantly, the GE QPI21100S2P contains no internal battery for maintenance-free operation. It uses flash memory to retain screen projects and recipes permanently. Therefore, you never need to replace batteries or reload applications after power loss.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	GE QPI21100S2P
Product Category	Operator Interface Display / HMI
Screen Size	10.4 inches diagonal
Display Resolution	800 x 600 pixels (SVGA)
Display Colors	65,536 (16-bit)
Display Type	TFT LCD with LED backlight
Backlight Lifetime	50,000 hours typical
Touchscreen Type	Resistive analog (4-wire)
Touchscreen Durability	1 million touches minimum
Communication Ports	1 x RS-232, 1 x RS-422/485, 1 x Ethernet
Ethernet Speed	10/100 Mbit/s
USB Ports	1 x USB host (Type A), 1 x USB device (Type B)
Protocol Support	GE SRTP, Modbus TCP, Modbus RTU
Screen Memory	32 MB flash (user project storage)
Recipe Memory	8 MB flash
Energy Storage	No battery (flash memory only)
Real-Time Clock	Yes (supercapacitor backup, 7 days)
Power Supply	24 V DC (18 V to 32 V DC)
Current Consumption	500 mA at 24 V DC
Power Dissipation	12 W maximum
Number of Components	1 display assembly + 1 touchscreen + 1 PCB + metal housing
Net Weight	1.8 kg (1,800 grams)
Gross Weight (packaged)	2.3 kg
Dimensions (W x H x D)	290 mm x 230 mm x 55 mm
Panel Cutout Size	270 mm x 210 mm
Operating Temperature	0°C to +50°C
Storage Temperature	-20°C to +70°C
Degree of Protection (Front)	IP65 (NEMA 4X)
Degree of Protection (Rear)	IP20
Certifications	CE, UL 508, CSA

Installation and Application Details

The GE QPI21100S2P mounts into a standard panel cutout using included mounting clips. First, cut a 270 mm x 210 mm opening in your enclosure door. Next, insert the display from the front and tighten the clips from behind. Connect 24 V DC power to the terminal block on the rear panel. The GE QPI21100S2P requires configuration software for screen development. You can upload projects via USB or Ethernet without opening the enclosure. This HMI suits machine control, process monitoring, and data logging applications. Thus, the GE QPI21100S2P provides reliable operator interface for demanding industrial environments.
