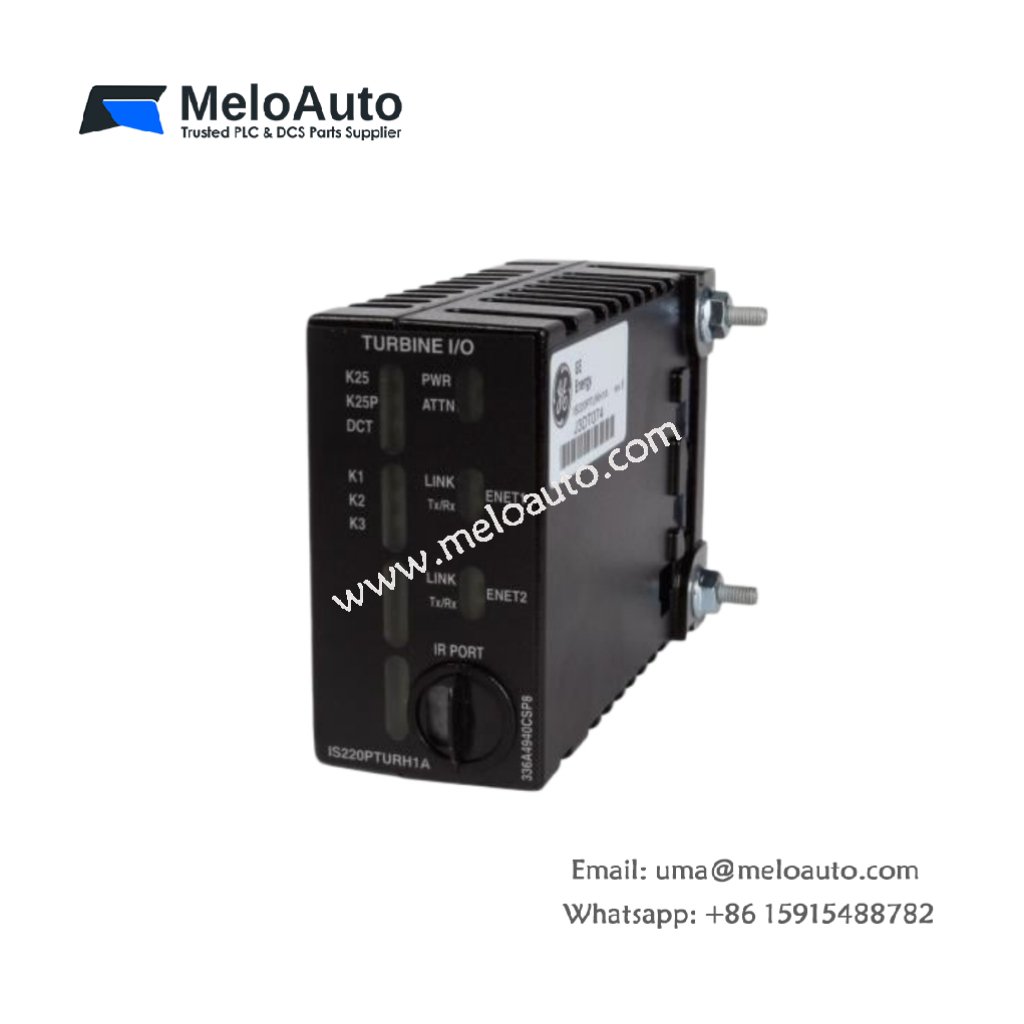

GE IS220PTURH1A Mark VI Turbine I/O Module

The GE IS220PTURH1A module provides mixed I/O functions for Mark VI turbine control. This turbine I/O module interfaces field devices with the controller. It handles discrete inputs and outputs for turbine auxiliaries. The module delivers reliable performance in harsh power generation environments.

Technical Specifications of GE IS220PTURH1A

Component Count and Board Construction

The GE IS220PTURH1A module contains over 180 discrete components. You will find opto-isolators for input channel isolation. Furthermore, the module includes protection diodes for each output channel. The assembly also features LED indicators for all I/O points.

Interfaces, Energy Storage, and Signal Processing

The GE IS220PTURH1A provides removable terminal blocks for field wiring. Moreover, the module uses capacitors for input debouncing and noise filtering. These capacitors store minimal energy for transient suppression. Each output channel includes a resettable fuse for short-circuit protection.

Functional Logic and Application Context

This Mark VI module reads status from limit switches and pressure switches. It then transmits these digital values to the main controller. The GE IS220PTURH1A also drives solenoids and indicator lights in the field. Additionally, it supports both sinking and sourcing wiring configurations. Consequently, you can adapt this I/O module to various turbine auxiliary devices easily.

Installation and Environmental Limits

You must power down the rack before inserting this I/O module. The operating temperature range spans -30°C to +65°C . Furthermore, the module withstands 5 g vibration without connection issues. Always verify the GE IS220PTURH1A wiring against the terminal diagram before power-up.
