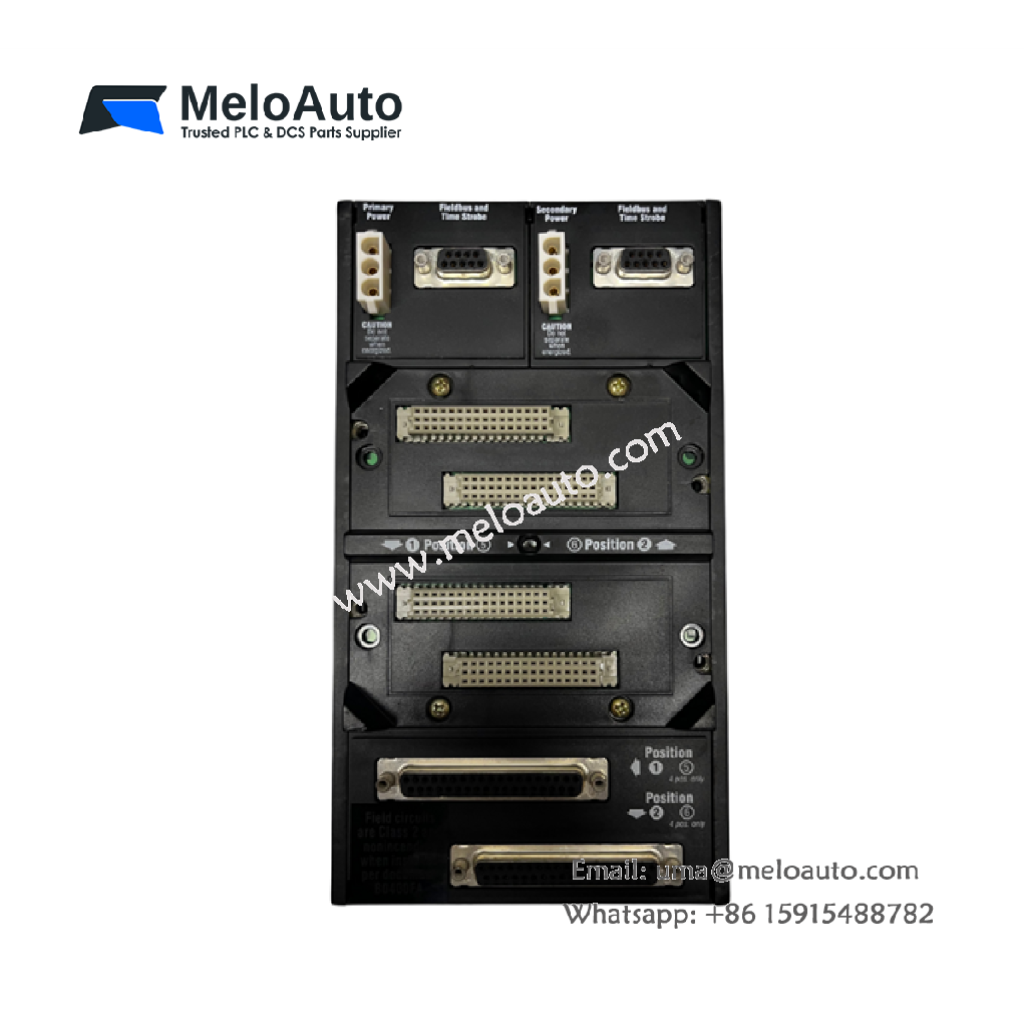

Foxboro P0926KH Mounted Modular Baseplate

Overview

The Foxboro P0926KH Modular Baseplate is a key component of the 200 Series I/O system, providing rugged and reliable mounting for field modules. Designed for industrial automation and control applications, it supports DIN rail and rack mounting, ensuring flexibility in various installation environments.

Environmental Specifications

Condition	Operating	Storage
Temperature	-20 to +60°C (-4 to +140°F)	-40 to +70°C (-40 to +158°F)
Humidity	5 to 95% RH (non-condensing)	5 to 95% RH (non-condensing)
Altitude	-300 to +3,000 m (-1,000 to +10,000 ft)	-300 to +12,000 m (-1,000 to +40,000 ft)
Contamination Rating	Class G3 (Harsh) per ISA S71.04	Class G3 (Harsh) per ISA S71.04, Pollution Degree 2 (IEC 664-1)

Physical Specifications

Mounting Options:
- Optional mounting kit (P0930AS) for 19-inch horizontal rack installation.
- Provides a 25.4 mm (1-inch) mounting depth.
- The baseplate is mounted on a non-isolated, mechanically supported horizontal or vertical DIN rail.
- Can be installed inside or outside an enclosure.
- DIN Rail:
- Rack Mounting:
Dimensions:
- Refer to Figure 13 & Figure 14 (not included in this text).
Weight:
- Max 0.91 kg (2.0 lbs) (without modules).
Material & Construction:
- Baseplate: PC and ABS, UL94 V0 flame-rated.
- Rack Mount Bracket: Cold-rolled steel (16-gauge, 0.0598 mm thick).
- Color: Black.

Module Fieldbus Cabling

Cable Lengths: 0.125 m (5 inches) to 60 m (198 feet).
Total Maximum Allowable Cable Length: 60 m (198 feet).

Key Features

✅ Supports 8-position modular baseplate for Foxboro 200 Series I/O modules.
✅ Flexible installation with DIN rail and rack mounting options.
✅ Industrial-grade materials for high durability and flame resistance.
✅ Designed for harsh environments (Class G3 rated per ISA S71.04).
✅ Optimized fieldbus cabling for seamless connectivity.

The Foxboro P0926KH is a reliable, industrial-grade modular baseplate, ensuring secure, scalable, and efficient mounting for automation and process control applications.
