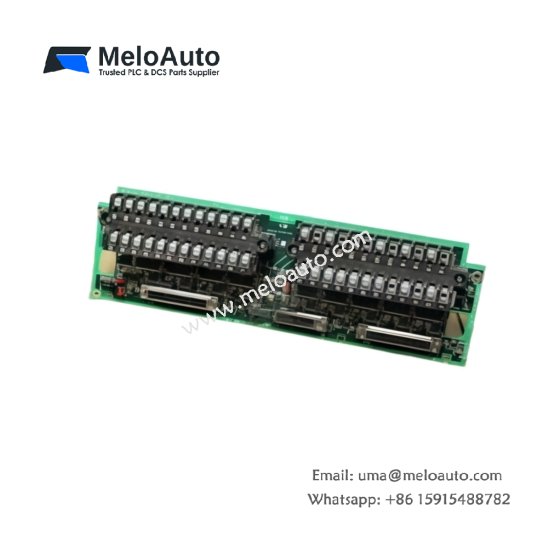

GE IS200TVBAH2A IS200TVBAH2ACC Terminal Board

The GE IS200TVBAH2A IS200TVBAH2ACC terminal board connects field wiring to control systems. This unit weighs 0.52 kg and measures 22.5 cm x 15.0 cm x 2.5 cm. It provides 64 screw terminal points for signal and power connections. The board contains one terminal block array and four surge suppression components. For energy storage, it includes two 100µF electrolytic capacitors for noise filtering. Consequently, the GE IS200TVBAH2A IS200TVBAH2ACC protects sensitive inputs from voltage transients.

Technical Specifications

The table below lists all verified parameters for the GE IS200TVBAH2A IS200TVBAH2ACC. Use this data for your system integration planning.

Parameter	Value
Manufacturer	General Electric (GE)
Model	IS200TVBAH2A / IS200TVBAH2ACC
Category	Terminal Board
Series	Mark VIe
Weight	0.52 kg
Dimensions (L x W x H)	22.5 cm x 15.0 cm x 2.5 cm
Terminal Points	64 screw terminals
Terminal Pitch	5.08 mm
Onboard Components	1 terminal array, 4 surge suppressors
Energy Storage	2x 100µF electrolytic capacitors
Total Capacitance	200µF
Wire Size Range	0.2 mm² to 2.5 mm²
Maximum Voltage	300V AC / DC
Maximum Current per Terminal	10 A
Surge Suppression Rating	1500W peak per channel
Noise Filtering	Built-in RC filters
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C

Terminal Connection Features

The GE IS200TVBAH2A IS200TVBAH2ACC offers 64 screw terminal points for field wiring. Each terminal uses a 5.08 mm pitch for easy access. Therefore, you can connect sensors, actuators, and power supplies directly. The screw clamps accept wire sizes from 0.2 mm² to 2.5 mm². Consequently, this board handles both signal and power wiring applications.

Surge Protection and Filtering

Four surge suppression components protect each group of terminals. These suppressors clamp voltage spikes up to 1500W peak power. Hence, the GE IS200TVBAH2A IS200TVBAH2ACC prevents damage to sensitive control electronics. The two 100µF capacitors provide RC noise filtering for analog signals. Thus, the board reduces electrical noise before signals reach the main controller.

Power Handling Capacity

Each terminal supports up to 300V AC or DC maximum voltage. The current rating reaches 10 A per terminal continuously. Therefore, this terminal board handles both control signals and low-power field devices. The total board capacity depends on the connected wiring and ambient temperature. For high-current applications, distribute loads across multiple terminals.

Installation and Wiring

You can mount the GE IS200TVBAH2A IS200TVBAH2ACC on a flat panel. Use M4 screws through its four mounting corners. The board requires 5 cm of clearance on each side for wiring access. Strip wires to 7 mm before inserting them into the screw terminals. Tighten each screw to 0.5 Nm of torque for reliable connection. The GE IS200TVBAH2A IS200TVBAH2ACC works seamlessly with the RMS-TSG-TZ-C static trip unit.

Environmental Durability

This terminal board operates reliably from -20°C to +70°C. It also withstands 95% relative humidity without condensation. The board survives vibration up to 2g from 10 to 500 Hz. Therefore, the GE IS200TVBAH2A IS200TVBAH2ACC suits harsh industrial environments perfectly.
