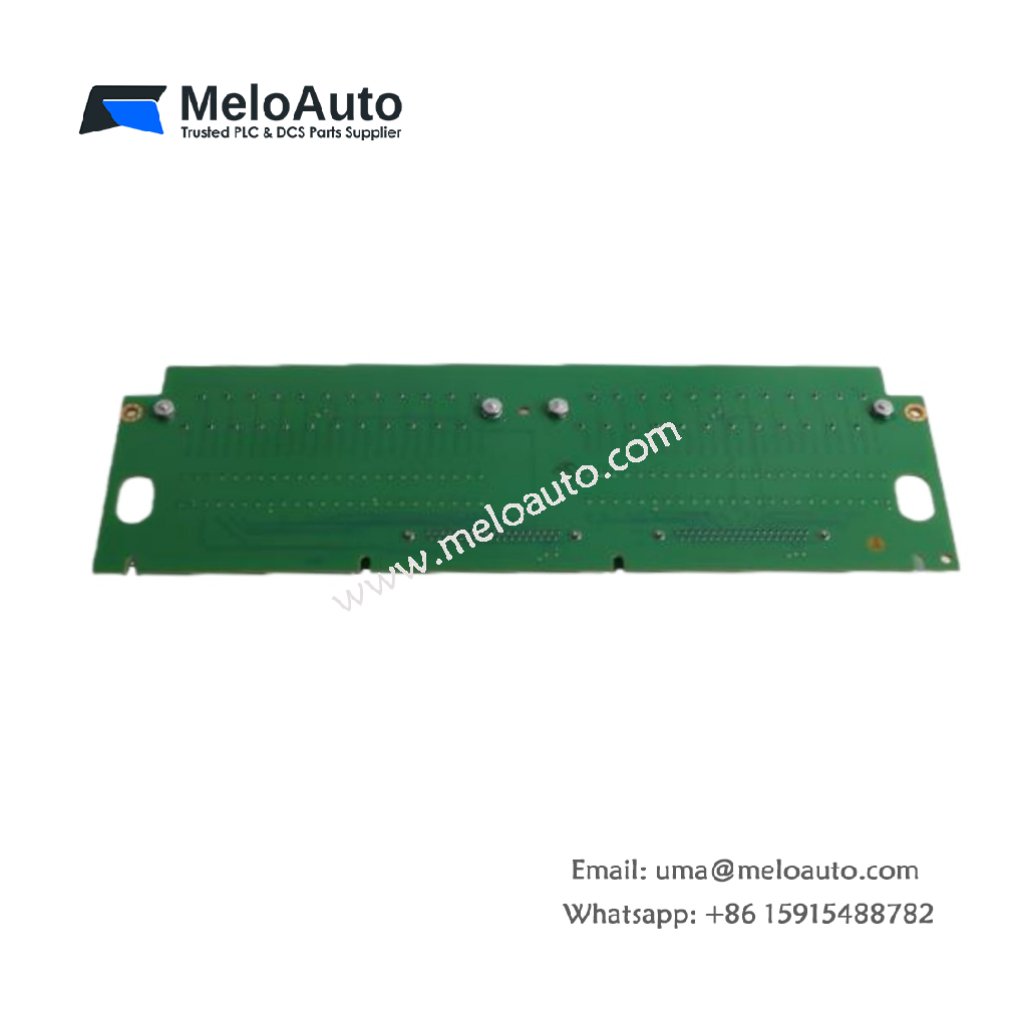

GE IS200TBTCH1CBB IS200TBTCH1C Input Terminal Board

The GE IS200TBTCH1CBB IS200TBTCH1C is a Thermocouple Input Terminal Board from GE Fanuc Emerson, designed for precise temperature measurement in industrial applications. It integrates seamlessly with GE’s IS200 series and offers a flexible, reliable interface for various thermocouple types. This module ensures accurate signal processing, making it ideal for monitoring and controlling temperature-sensitive systems.

Key Features and Specifications

Specification	Details
Manufacturer	GE Fanuc Emerson
Product Type	Thermocouple Input Terminal Board
Part Number	IS200TBTCH1CBB IS200TBTCH1C
Weight	0.40 lbs (0.18 kg)
Product Line	IS200 Series
Input Channels	1 thermocouple input
Temperature Range	-200°C to 1800°C (depending on thermocouple type)
Supported Thermocouple Types	J, K, T, E, N, R, S, B, C, and more
Input Signal	Voltage signal from thermocouple
Connector Type	Screw terminals for easy wiring
Mounting Type	Rack-mountable for convenient installation
Dimensions (H x W x D)	2.75″ x 3.00″ x 3.25″ (69.85 mm x 76.2 mm x 82.55 mm)
Power Consumption	< 1 W
Isolation	1500V between field and logic sides
Operating Temperature	-40°C to 85°C
Status Indicators	LED status indicator for operational state

Product Description

The GE IS200TBTCH1CBB IS200TBTCH1C is a high-performance thermocouple input terminal board offering precise temperature measurement capabilities. It supports multiple thermocouple types, including J, K, T, E, N, R, S, B, and others. These options provide flexibility for a variety of industrial temperature control and monitoring applications.

This module interfaces with voltage signals from thermocouples and provides reliable temperature readings. The input signal can handle various types of signals, such as 0 to 10 VDC or ±10 VDC, and 4–20 mA current signals. Additionally, it is equipped with screw terminals, ensuring secure connections and easy installation.

For users’ convenience, the GE IS200TBTCH1CBB is mounted directly into a rack, simplifying integration into automation systems. It includes LED indicators that show the operational state, ensuring quick diagnosis. The INT PWR LED indicates internal power, while the OK LED confirms that the module is receiving power from the backplane.

With a temperature range of -200°C to 1800°C, depending on the thermocouple type, this module is highly versatile. It performs reliably across many industrial applications, including metal production, chemical processes, and food processing.

Moreover, the GE IS200TBTCH1CBB IS200TBTCH1C offers 1500V isolation, ensuring protection from electrical noise and providing stability even in harsh environments. The response time is typically 0.4 ms, and the filter response is 5.0 ms, enabling fast and accurate signal processing.

Applications

Industrial automation systems for temperature measurement and control.
Temperature controllers in manufacturing processes requiring precise monitoring.
Monitoring systems for high-temperature applications in industries like metal, chemical, and food production.

Mounting and Installation

The GE IS200TBTCH1CBB IS200TBTCH1C features a rack-mountable design, ensuring easy and secure installation within automation control systems. Screw terminals allow straightforward wiring, contributing to a hassle-free setup process.
