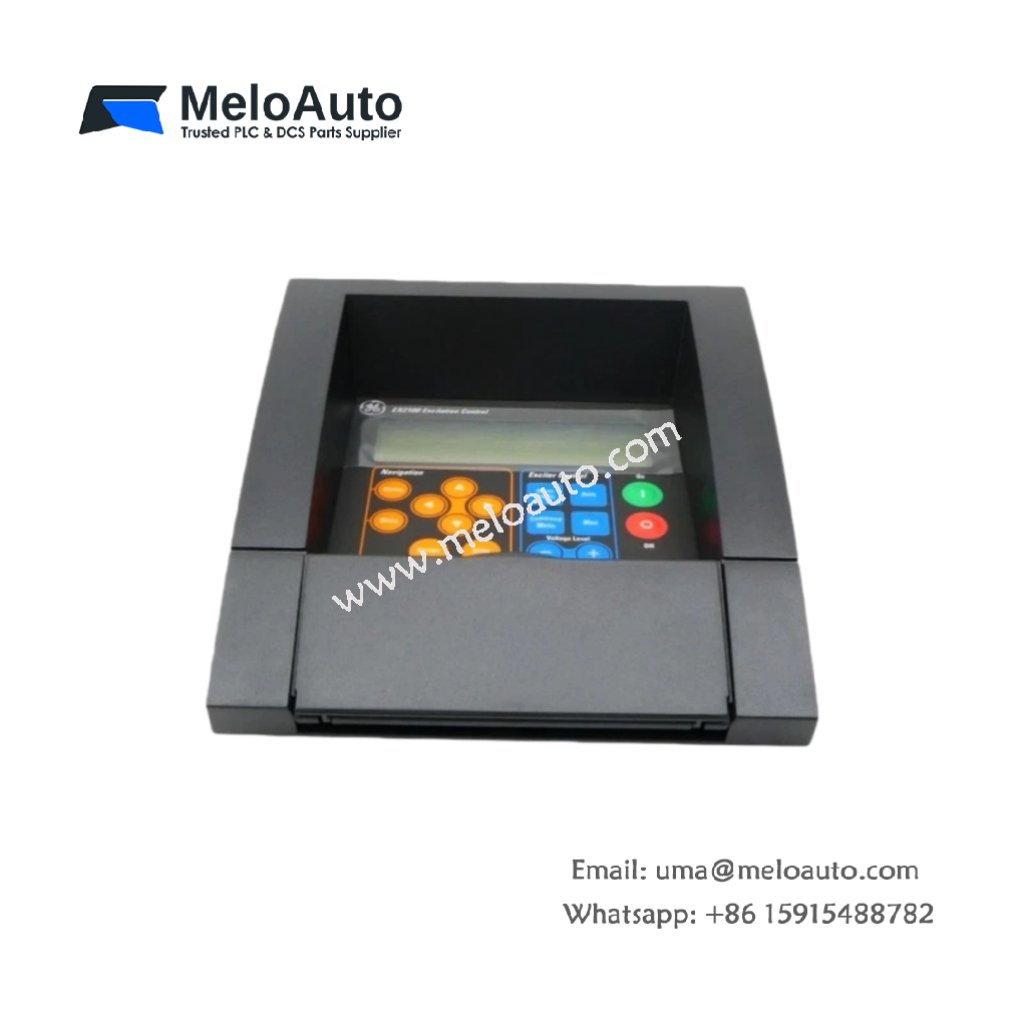

GE IC752SPL014 Operator Interface for EX2100 Excitation

The IC752SPL014 is a high-performance operator interface, specifically designed to control and monitor the EX2100 excitation control panel by General Electric. It offers a highly intuitive user experience, providing operators with precise control and real-time monitoring of power generation systems. As a result, it ensures the stable and efficient operation of critical equipment.

Key Features of IC752SPL014

The IC752SPL014 boasts several features that streamline the operation of the EX2100 excitation system. First, it provides excellent visibility with a 10.4″ TFT color touchscreen, offering clear and immediate feedback. Moreover, its flexible communication capabilities ensure seamless integration into existing control networks.

Display Type: 10.4″ color TFT LCD touchscreen for clear, high-quality visual feedback
Communication Protocol: Supports Modbus, Ethernet, and RS-232/RS-485 for versatile system integration
Dimensions: 250 mm x 175 mm x 60 mm, compact and ideal for limited spaces
Weight: 1.2 kg (2.65 lbs), lightweight and easy to install
Operating Temperature: -10°C to 60°C, suited for various industrial environments
Power Supply Input: 24V DC, compatible with most power systems
Number of Inputs: 4 analog inputs, 2 digital inputs for comprehensive system monitoring
Number of Outputs: 2 analog outputs, 4 digital outputs, ensuring flexible control options
Environmental Protection: IP65-rated, offering protection against dust and moisture
Mounting Type: Suitable for panel mount or 19-inch rack installations
Backlight: Adjustable backlight for enhanced visibility in different lighting conditions

Detailed Description of IC752SPL014

The IC752SPL014 operator interface simplifies controlling the EX2100 excitation system. Its 10.4″ TFT LCD touchscreen provides crystal-clear display and intuitive interaction, allowing operators to navigate functions effortlessly. The interface makes system configuration and parameter adjustments more straightforward, which reduces operational errors.

Additionally, this interface supports a wide range of communication protocols, including Modbus, Ethernet, and RS-232/RS-485. These protocols ensure the interface can easily integrate with other devices, enhancing system connectivity. This flexibility also facilitates real-time data exchange and monitoring, improving overall system efficiency.

The IC752SPL014 also features a variety of input and output options, making it highly adaptable. With four analog inputs and two digital inputs, operators can closely monitor key system parameters. Furthermore, two analog outputs and four digital outputs allow for more precise control over system functions.

The interface is designed with durability in mind. With its IP65 rating, the IC752SPL014 is protected against dust and water, making it ideal for harsh industrial environments. It also offers versatile mounting options, including panel mount and 19-inch rack installations, providing flexibility for a wide range of applications.

Technical Specifications

Parameter	Value
Manufacturer	General Electric
Product Type	Operator Interface
Product Line	EX2100 Excitation Control Panel
Part Number	IC752SPL014
Display Type	10.4″ Color TFT LCD Touchscreen
Communication Protocol	Modbus, Ethernet, RS-232/RS-485
Dimensions (mm)	250 x 175 x 60
Weight	1.2 kg (2.65 lbs)
Operating Temperature	-10°C to 60°C
Power Supply Input	24V DC
Number of Inputs	4 Analog Inputs, 2 Digital Inputs
Number of Outputs	2 Analog Outputs, 4 Digital Outputs
Environmental Protection	IP65 (Dust and Water Resistant)
Mounting Type	Panel mount, 19-inch rack compatible
Backlight	Adjustable

Why Choose the IC752SPL014?

The IC752SPL014 provides significant advantages for operators managing the EX2100 excitation system. First, its large touchscreen offers clear, real-time feedback, which helps operators make informed decisions. Next, the interface integrates seamlessly into control networks through its wide array of communication protocols, including Modbus, Ethernet, and RS-232/RS-485.

Moreover, the IC752SPL014 is built for durability. The IP65 rating ensures that it performs reliably in tough industrial conditions, protecting it from dust and moisture. Additionally, its compact design and flexible mounting options simplify installation, whether you’re using a panel mount or 19-inch rack configuration. This versatility is a key benefit for industrial environments with limited space or unique installation needs.

In summary, the IC752SPL014 improves the user experience for managing the EX2100 excitation system. With its intuitive interface, robust protection, and excellent adaptability, it provides reliable and efficient control over critical power generation systems.
