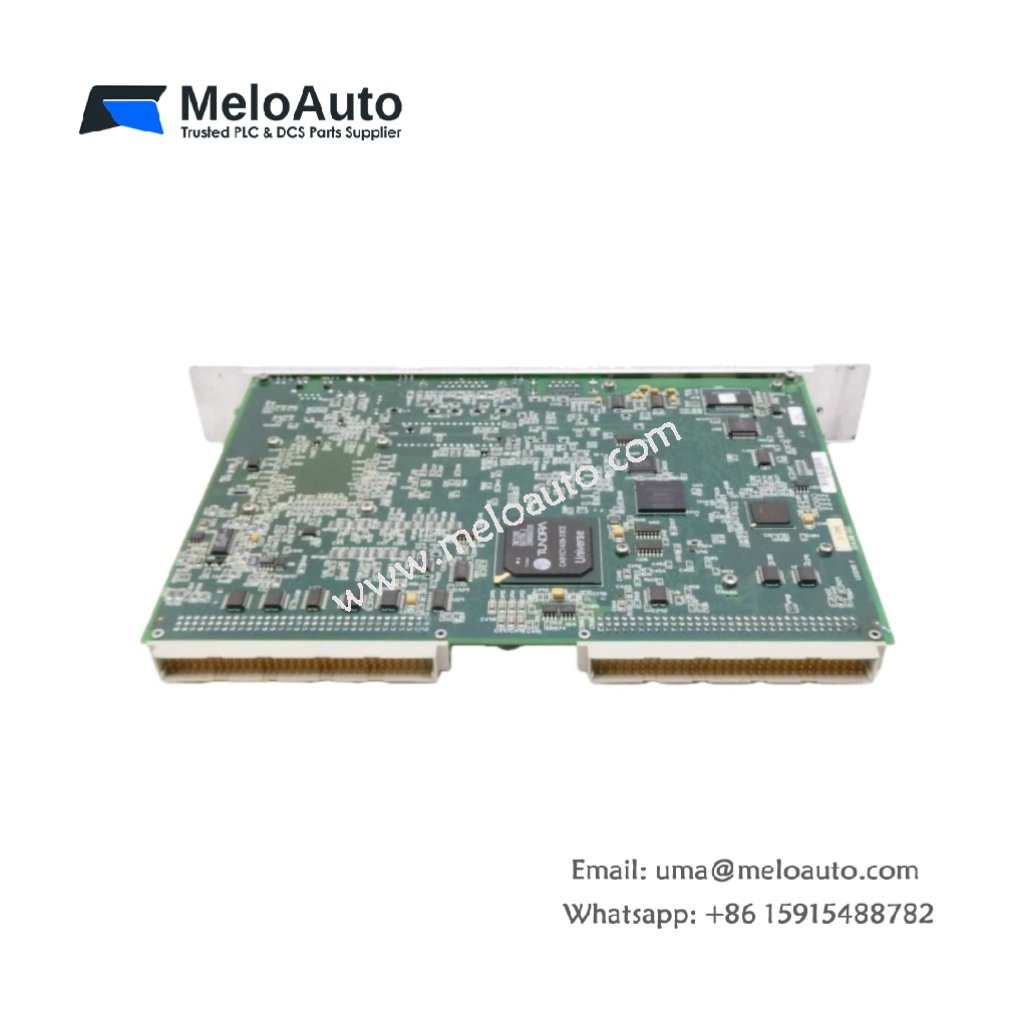

GE IC698CPE020 Rack Mount CPU for PACSystem RX7i

Product Overview

The GE IC698CPE020 is a high-performance Central Processing Unit (CPU) designed for use within the PACSystem RX7i platform, now under Emerson Automation. This CPU provides the processing power necessary for real-time control and data communication in advanced industrial applications. Featuring a 700 MHz Pentium III microprocessor, it ensures optimal processing speeds and system responsiveness.

The IC698CPE020 supports a wide range of communication options, including two Ethernet ports and two isolated serial ports, offering flexibility in system integration. This rack-mounted CPU is equipped with 10 MB of user memory (battery-backed) and 10 MB of non-volatile Flash memory, allowing for reliable data storage and retrieval even during power outages.

Key Features and Benefits

Powerful Processor: The 700 MHz Pentium III microprocessor allows the IC698CPE020 to handle demanding tasks with high efficiency.
Large Memory Capacity: It features 10 MB of battery-backed user memory and 10 MB of Flash memory, ensuring reliable data storage.
Flexible Communication Ports: This unit comes with two Ethernet ports (10/100 Mbps) and two isolated serial ports (RS232/RS485) for seamless integration into existing networks.
Compact Design: Its rack-mounted form makes it easy to install in standard industrial racks, saving space while providing robust performance.
Wide Compatibility: Supports Ladder Diagram, Structured Text, Function Block Diagram, and C programming languages, making it adaptable to various applications.

Technical Specifications

Parameter	Specification
Model	GE IC698CPE020
Manufacturer	Emerson Automation
Product Line	PACSystem RX7i
Part Number	IC698CPE020
Product Type	Rack Mount CPU
Weight	2.00 lbs (0.91 kg)
Processor	700 MHz Pentium III
User Memory	10 MB (battery-backed)
Flash Memory	10 MB
Discrete I/O Memory	32 Kbits for %I and %Q
Analog I/O Memory	32 K words for %AI and %AQ
Communication Ports	2 LAN Ports (Ethernet), 2 Serial Ports (RS232/RJ45)
Operating Voltage	5 to 12 Volts DC
Boolean Execution Speed	0.14 ms per 1000 Boolean contacts/coils
Current Rating	4.3 Amps
Supported Programming Languages	Ladder Diagram, Structured Text, Function Block Diagram, C

Applications

The GE IC698CPE020 is ideally suited for industrial automation applications, particularly those requiring real-time control and complex data processing. It integrates seamlessly with the PACSystem RX7i platform and supports diverse control strategies. The IC698CPE020 is used across various industries such as manufacturing, energy, oil and gas, and automotive for applications like process control, factory automation, and machine monitoring.

With two Ethernet ports and multiple serial communication options, this CPU provides flexible networking capabilities, making it adaptable to different industrial communication protocols.

Manufacturer

Manufactured by Emerson Automation (formerly GE Intelligent Platforms), the IC698CPE020 is a part of the PACSystem RX7i series. Emerson Automation has a long-standing reputation for delivering advanced automation solutions that help businesses improve efficiency, reduce downtime, and enhance overall system performance.
