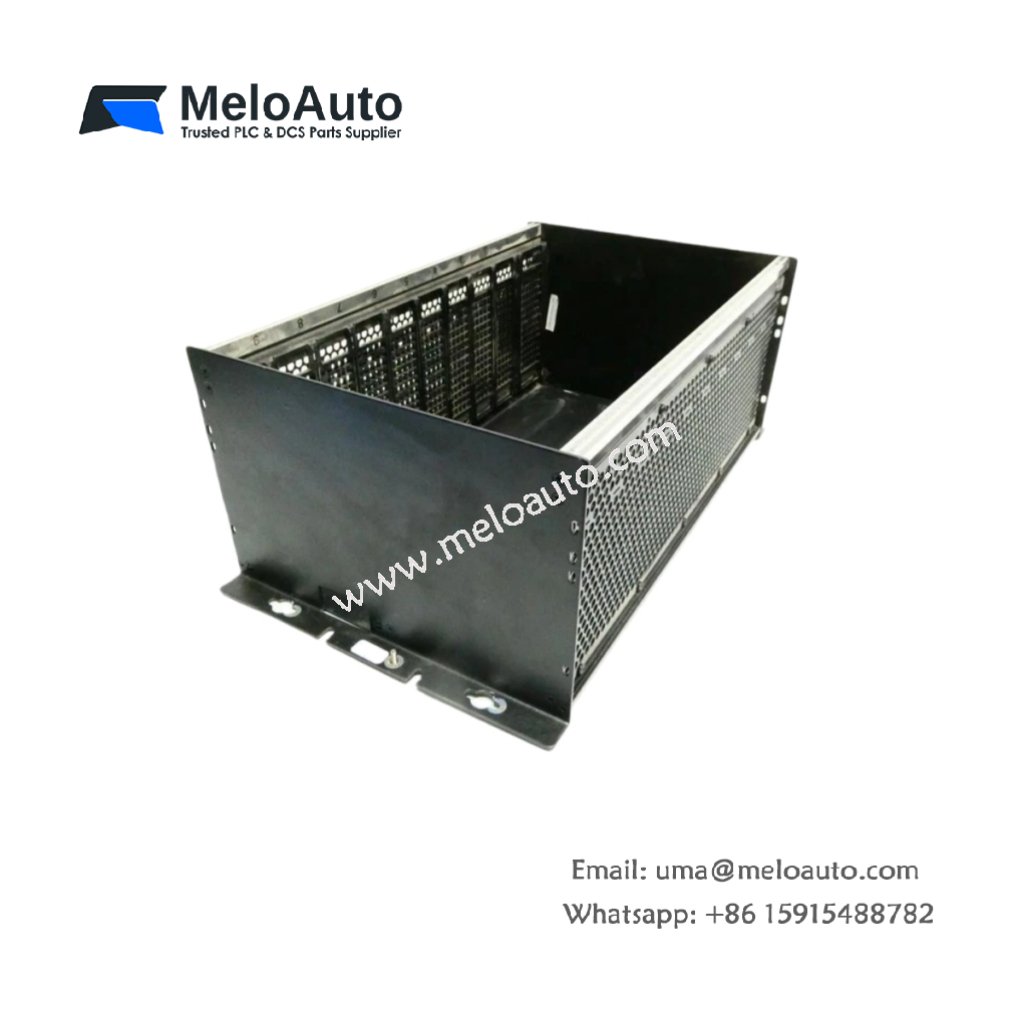

GE IC697CHS790 9-Slot Rear Mount PLC Rack for IC697 Modules

The GE IC697CHS790 is a 9-slot rear mount PLC rack from the Series 90-70 Programmable Logic Controller (PLC) platform. This model, formerly manufactured by GE Fanuc and now under Emerson Automation, offers a reliable and flexible solution for your automation needs. The rack is designed to house a wide range of IC697 PLC modules and supports easy expansion for increased I/O capacity.

Key Features

Robust Design: The IC697CHS790 rack features a durable 9-slot configuration with an additional power supply slot.
Flexible Expansion: Supports the extension of two racks that share a common power supply, ideal for larger systems.
Versatile Mounting Options: Supports both rear and front panel mounting, ensuring installation flexibility.
Powerful Support: This baseplate accommodates IC697 PLC modules, enabling reliable integration with your control systems.

Technical Specifications

The GE IC697CHS790 is equipped with the following technical specifications:

Parameter	Specification
Manufacturer	GE Fanuc (Emerson Automation)
Product Line	Series 90-70 PLC
Part Number	IC697CHS790
Weight	11.38 lbs (5.16 kg)
Dimensions	11.15″H x 19″W x 7.5″D (283mm x 483mm x 190mm)
Mounting Type	Rear Mount (Panel Mounting)
Number of Slots	9 slots + 1 Power Supply Slot
Voltage	5 Volts DC
Current	20 Amperes
VME Standard	VME System designed to support VME C.1
Enclosure Depth	10 inches (255 mm)
Rack Extension Support	Yes, supports two racks
Maximum 5V Current	20 Amps (100W 120/240 VAC or 125 VDC)
	11 Amps (55W 120/240 VAC or 125 VDC)
	18 Amps (90W 24 VDC)
	18 Amps (90W 48 VDC)
Power Supply Extension Cable	IC697CBL700
Current from I/O Bus	0.5 Amps
I/O References	User configurable without jumpers
Rack Identification	Four jumpers behind power supply
Compatible Modules	All IC697 PLC modules

Applications

The GE IC697CHS790 rack is ideal for use in industrial automation systems that require reliable, flexible I/O control. It is compatible with IC697 PLC modules, offering seamless integration within the Series 90-70 platform. The ability to extend the rack and share power supplies ensures that the system can grow as needed to accommodate more I/O points.

This rack is perfect for:

Automation Systems: Ideal for controlling and monitoring industrial processes.
System Expansion: Easily extends with additional racks to support large-scale systems.
Modular I/O Control: Facilitates the configuration of I/O points without the need for jumpers or DIP switches.

Conclusion

The GE IC697CHS790 9-slot rear mount PLC rack is a critical component for any Series 90-70 PLC system. Its robust design, flexible mounting options, and compatibility with IC697 modules make it a reliable choice for automation projects. The ability to extend racks and share power supplies ensures scalability for future expansion.
