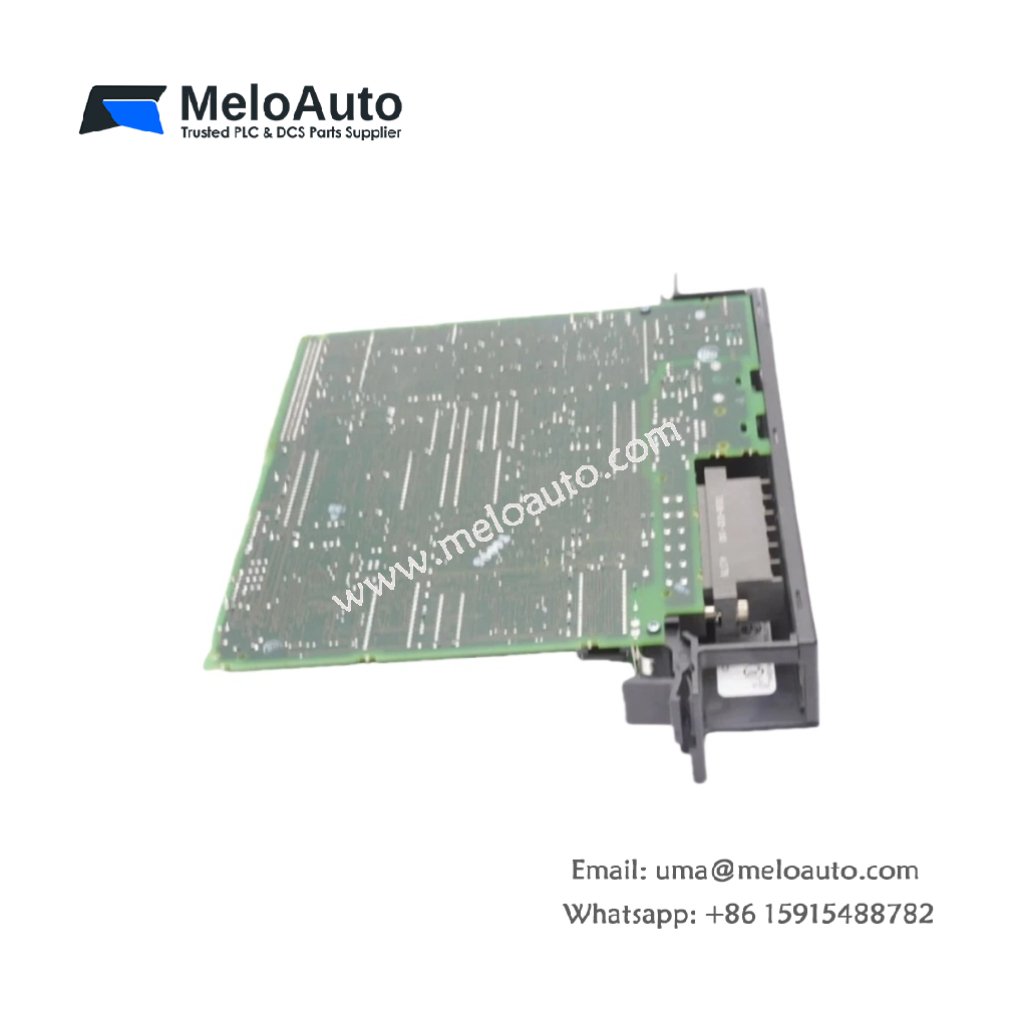

GE IC697BEM731P Bus Controller Module (BCM) – 90-70 Series

The GE IC697BEM731P serves as a high-performance Bus Controller Module (BCM), specifically designed for the 90-70 Series PLC platform. This module enables seamless communication with Genius I/O handheld monitors (IC660/IC661). It effectively manages data transfer and supports diagnostics and redundancy, ensuring reliable operation in industrial environments.

Key Features of the IC697BEM731P

• Manufacturer: GE Fanuc Emerson
• Product Line: 90-70 Series
• Part Number: IC697BEM731P
• Product Type: Bus Controller Module (BCM)
• Weight: 0.75 lbs (0.34 kg)
• Slot Requirement: One slot in the handheld monitor PLC
• Support: Compatible with IC660/IC661 Genius I/O handheld monitors
• Channels: Single-channel controller
• Configuration Software: MS-DOS or Windows programming software
• Diagnostics and Redundancy: Includes 1/0 diagnostics and redundancy support
• Alarm Function: Built-in alarm processor for enhanced monitoring

Detailed Description of the GE IC697BEM731P BCM

The GE IC697BEM731P integrates seamlessly with the 90-70 Series PLC to manage communication with Genius I/O handheld monitors. This single-channel Bus Controller Module scans IC660 I/O blocks asynchronously and transfers data to the CPU once per scan. As a result, it improves communication efficiency and ensures accurate data flow.

The module supports directed communication, enabling it to handle requests from the PLC CPU. You can easily configure it for global communication tasks. With support for up to 30 drops per channel, the IC697BEM731P allows extensive connectivity for large systems and complex operations.

For ease of use, configure the IC697BEM731P via either MS-DOS or Windows programming software, making it versatile and adaptable to existing setups. Additionally, the module’s diagnostic and redundancy features enhance system reliability, even in demanding applications. The alarm processor function continuously monitors the system, alerting operators to any issues and ensuring quick resolution.

Technical Specifications

Installation Notes for the IC697BEM731P

Before installation, ensure that power is OFF to avoid any electrical hazards. Follow the PLC installation manual for proper installation procedures. After successful installation, the module will power up, and the LED indicator will blink. The middle LED signals proper configuration by the CPU, while the bottom LED will stay off, providing a clear indication of the module’s operational status.
