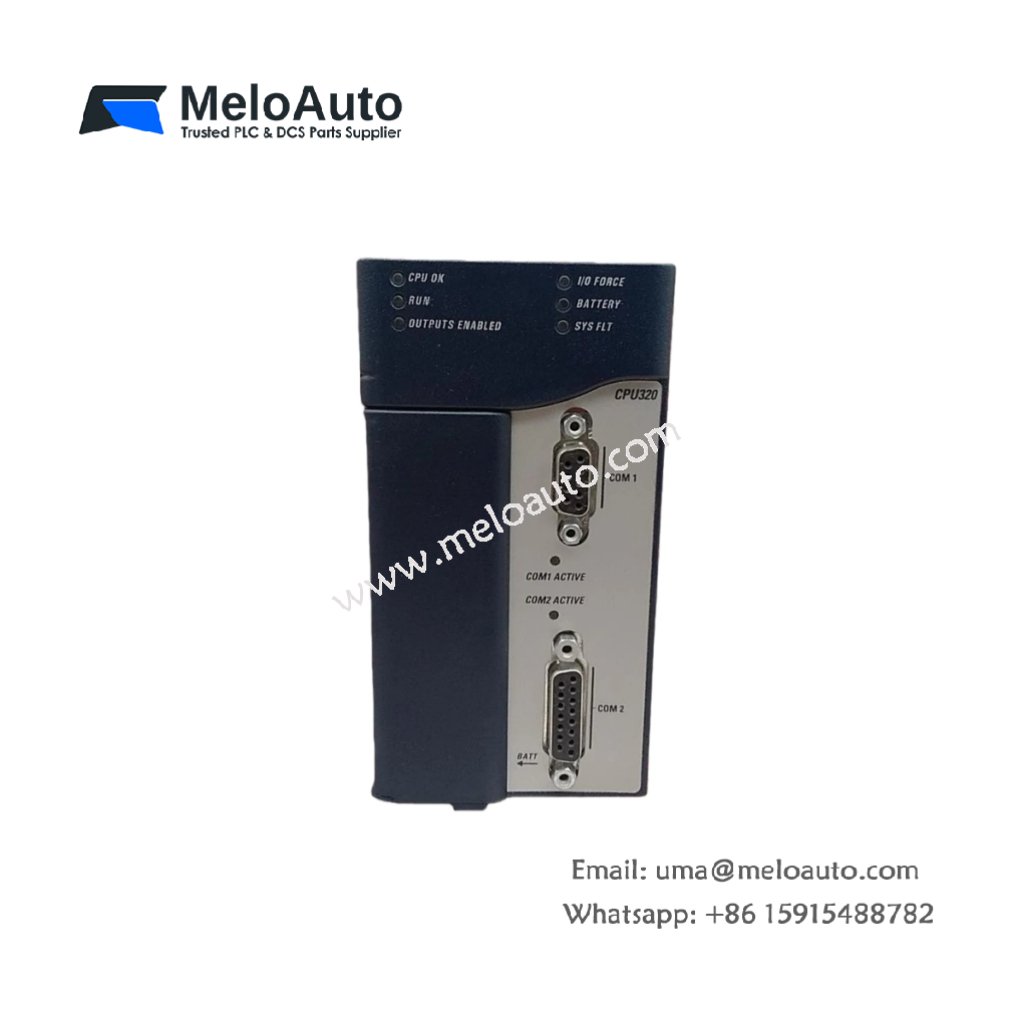

GE IC695CPU320 | PACSystem RX3i CPU Module

Powerful Computing for Demanding Automation Applications

The IC695CPU320 delivers robust processing power as the central CPU for the PACSystem RX3i platform. This module features a high-speed 1.0 GHz Intel Celeron M microprocessor for rapid execution. Furthermore, it provides a typical scan time of just 0.047 milliseconds per 1000 Boolean instructions for responsive control.

Dual Integrated Serial Ports for Flexible Connectivity

This RX3i processor module includes two built-in serial communication ports for direct device interfacing. Both ports support the standard RS-232 and RS-485 electrical interfaces for maximum versatility. Consequently, you can connect to HMIs, drives, or other serial devices without needing an additional communication module.

Substantial Memory for Complex Control Strategies

The IC695CPU320 is equipped with 64 Megabytes of RAM for running your application program. It also features an additional 64 Megabytes of non-volatile RAM (NVRAM) for project storage and data retention. Moreover, the processor supports up to 512 program blocks, each with a maximum size of 128 kilobytes.

Comprehensive Technical Specifications and Performance Data

Below are the detailed technical parameters for the GE (Emerson) IC695CPU320 CPU module.

Parameter	Specification
Manufacturer	GE Fanuc / Emerson Automation
Product Line	PACSystem RX3i
Model Number	IC695CPU320
Module Type	Central Processing Unit (CPU)
Module Weight	1.56 lbs (0.71 kg)
Physical Slot Requirement	2 Slots
Microprocessor	Intel Celeron M
Clock Speed	1.0 GHz
RAM (Volatile Memory)	64 Megabytes
NVRAM (Non-Volatile Memory)	64 Megabytes
Serial Communication Ports	2 (Each supports RS-232 & RS-485)
Maximum Number of Program Blocks	512
Maximum Block Size	128 Kilobytes
Typical Scan Rate	0.047 ms per 1000 Boolean Instructions

Enabling Large and Sophisticated Automation Projects

With support for 512 program blocks, the CPU can manage highly modular and organized code. This structure is ideal for large-scale applications in process control, material handling, or machine automation. Therefore, the IC695CPU320 scales efficiently to meet the demands of complex, multi-tasking control systems.

Designed for Reliable Operation in Industrial Settings

The dual-slot form factor provides a stable and secure connection within the RX3i backplane. Its industrial-grade components ensure reliable operation across the standard temperature and humidity ranges. This durability makes it a cornerstone for systems requiring high availability and long-term performance.

A Core Component of the Modern PACSystem Architecture

As a key part of the RX3i platform, this processor enables unified control across discrete, process, and motion applications. Its power and connectivity form the foundation for building integrated and future-proof automation solutions. System designers select the IC695CPU320 for its balance of performance, memory, and built-in features.
