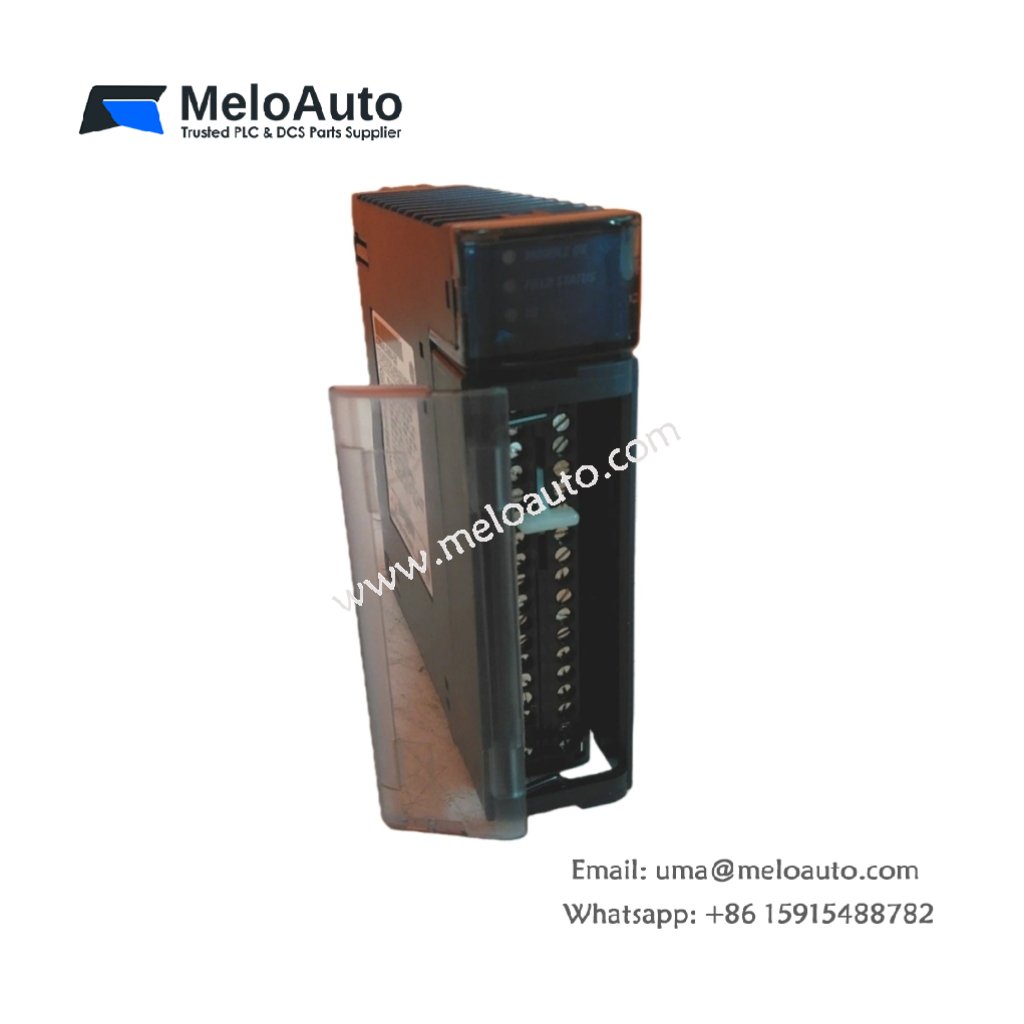

GE IC695ALG600 Universal Analog Input Module

The GE IC695ALG600 is a flexible and reliable universal analog input module designed for the PACSystem RX3i series by GE Fanuc Emerson. This module features eight general-purpose channels and two Cold Junction Compensation (CJC) channels, making it suitable for various industrial applications. It allows configuration for multiple input types such as current, voltage, thermocouple, RTD, and resistance signals.

Key Features of the GE IC695ALG600 Universal Analog Input Module

Eight General-Purpose Channels: The IC695ALG600 provides eight flexible input channels for various measurement and control tasks. You can easily adjust it for different input types depending on the application.
Cold Junction Compensation (CJC): Equipped with two CJC channels, the module ensures accurate thermocouple measurements, compensating for environmental temperature fluctuations.
Flexible Input Types: This module supports a wide variety of input signals, including:
- Current: 0–20 mA, 4–20 mA, +20 mA
- Voltage: +50 mV, +150 mV, 0–5 V, 1–5 V, 0–10 V, +10 V
- Resistance: 0 to 250 / 500 / 1000 / 2000 / 3000 / 4000 Ohms
- RTD Sensors: PT 385 / 3916, N 618 / 672, NiFe 518, CU 426
- Thermocouple: B, C, E, J, K, N, R, S, T
Two Input Groups: The IC695ALG600 organizes the channels into two groups, each with four input channels. This setup allows greater flexibility in managing different signal types simultaneously.
Versatile Configuration: You can configure the module for current, voltage, resistance, and temperature measurements, providing adaptability to a wide range of industrial needs.

Technical Specifications of the GE IC695ALG600

Specification	Details
Model	IC695ALG600
Manufacturer	GE Fanuc Emerson
Product Line	PACSystem RX3i
Product Type	Universal Analog Input Module
Part Number	IC695ALG600
Weight	0.75 lbs (0.34 kg)
Number of Channels	Eight (8) General Purpose
Cold Junction Compensation (CJC)	Two (2) Channels
Number of Input Groups	Two (2)
Input Configurations	Current, Voltage, Resistance, Thermocouple, RTD
Current Input Range	0–20 mA, 4–20 mA, +20 mA
Voltage Input Range	+50mV, +150mV, 0–5V, 1–5V, 0–10V, +10V
Resistance Input Range	0–250 / 500 / 1000 / 2000 / 3000 / 4000 Ohms
RTD Sensors Supported	PT 385 / 3916, N 618 / 672, NiFe 518, CU 426
Thermocouple Types Supported	B, C, E, J, K, N, R, S, T

Why Choose the GE IC695ALG600 Universal Analog Input Module?

Highly Flexible Input Options: The IC695ALG600 accommodates a variety of signal types, providing unmatched flexibility in industrial control and measurement.
Cold Junction Compensation: Two dedicated CJC channels enhance accuracy in thermocouple measurements, even in challenging conditions.
Reliable Performance: As part of the PACSystem RX3i series, the IC695ALG600 is built for high reliability, ensuring stable and precise input signals.
Ideal for Diverse Applications: Whether you need current, voltage, resistance, or temperature measurements, this module adapts to various industrial setups, making it versatile and cost-effective.
