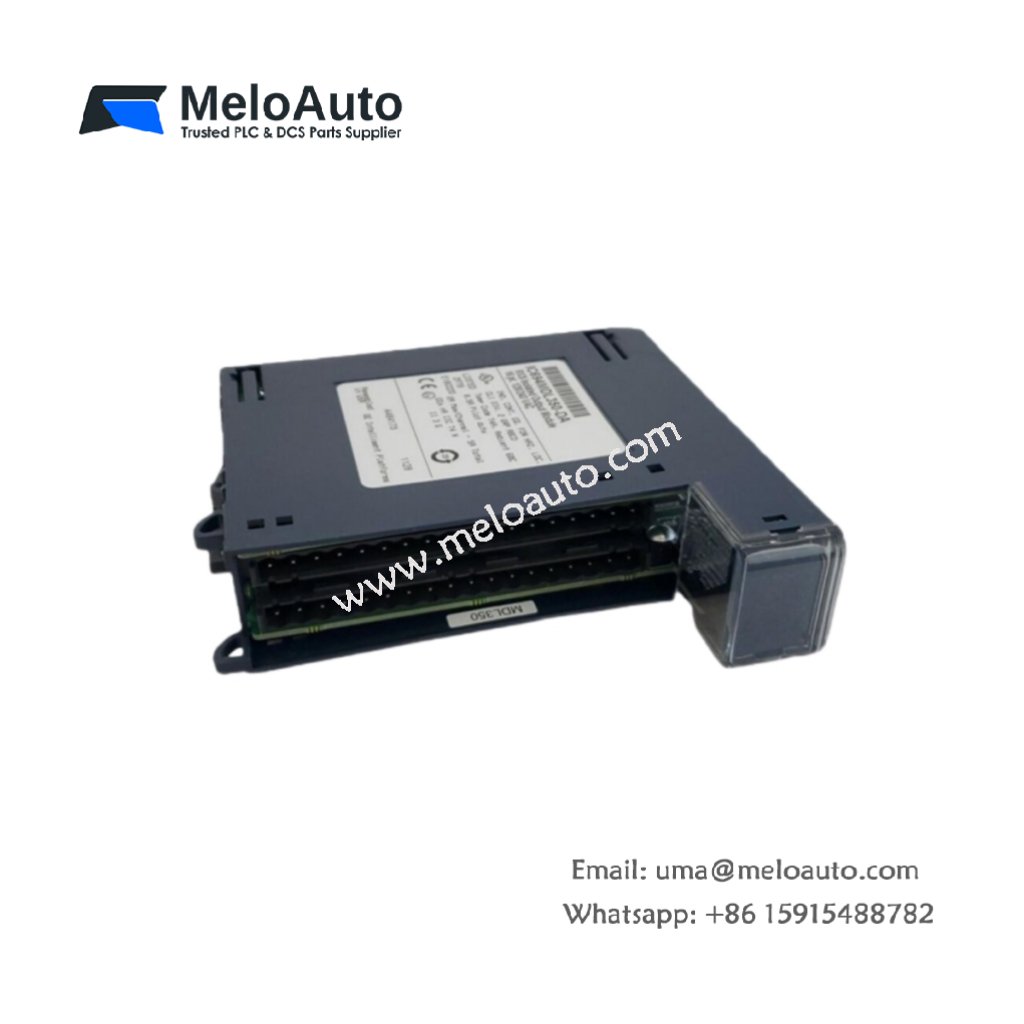

GE IC694MDL350 Input Module

Overview of the GE IC694MDL350 Input Module

The GE IC694MDL350 input module delivers a robust solution for industrial automation systems, providing 16 input points split into two groups of 8. This module operates with 240VAC, making it well-suited for environments where AC signals are essential. Whether you need reliable signal processing or seamless integration, this module ensures excellent performance and versatility.

Its compact design allows for easy DIN rail mounting, saving space while providing secure installation. With its operating temperature range of 0°C to 60°C and humidity tolerance between 5% and 95% (non-condensing), the GE IC694MDL350 operates effectively in demanding conditions.

Key Technical Specifications

Specification	Details
Manufacturer	General Electric (GE)
Product Type	Input Module
Part Number	IC694MDL350
Number of Points	16
Points Grouping	2 groups of 8 points
Input Voltage	240VAC
Input Type	AC Input
Mounting Type	DIN Rail
Weight	0.5 kg (1.1 lbs)
Power Consumption	90 mA from backplane
Operating Temperature	0°C to 60°C
Relative Humidity	5% to 95% (Non-condensing)
Input Impedance	10 kΩ
Isolation	1500VAC (channel-to-channel)
Wiring Type	Screw terminal connections

Why Choose the GE IC694MDL350 Input Module?

The GE IC694MDL350 provides a versatile solution for control systems requiring high input capacity and reliable performance. It divides the 16 input points into two groups of 8, simplifying wiring and increasing flexibility in complex industrial systems.

Operating with 240VAC input, this module handles AC signals with ease, making it perfect for industrial environments. The 1500VAC isolation between channels protects the system from electrical surges and interference, ensuring smooth and uninterrupted operation.

Additionally, the DIN rail mounting makes installation straightforward and quick. The module’s compact design minimizes the need for excessive space, making it an ideal choice for systems with limited room. With 90mA power consumption from the backplane, the GE IC694MDL350 module operates efficiently without overloading the power supply.

The GE IC694MDL350 supports a broad temperature range from 0°C to 60°C and can withstand humidity levels of 5% to 95% (non-condensing). These features make it adaptable to a variety of environmental conditions, from factory floors to other industrial settings.

Conclusion

The GE IC694MDL350 is an indispensable component for automation systems that require reliability, flexibility, and efficiency. With 16 input points, 240VAC input, DIN rail mounting, and 1500VAC isolation, this module provides the necessary capabilities to enhance your control systems’ performance.
