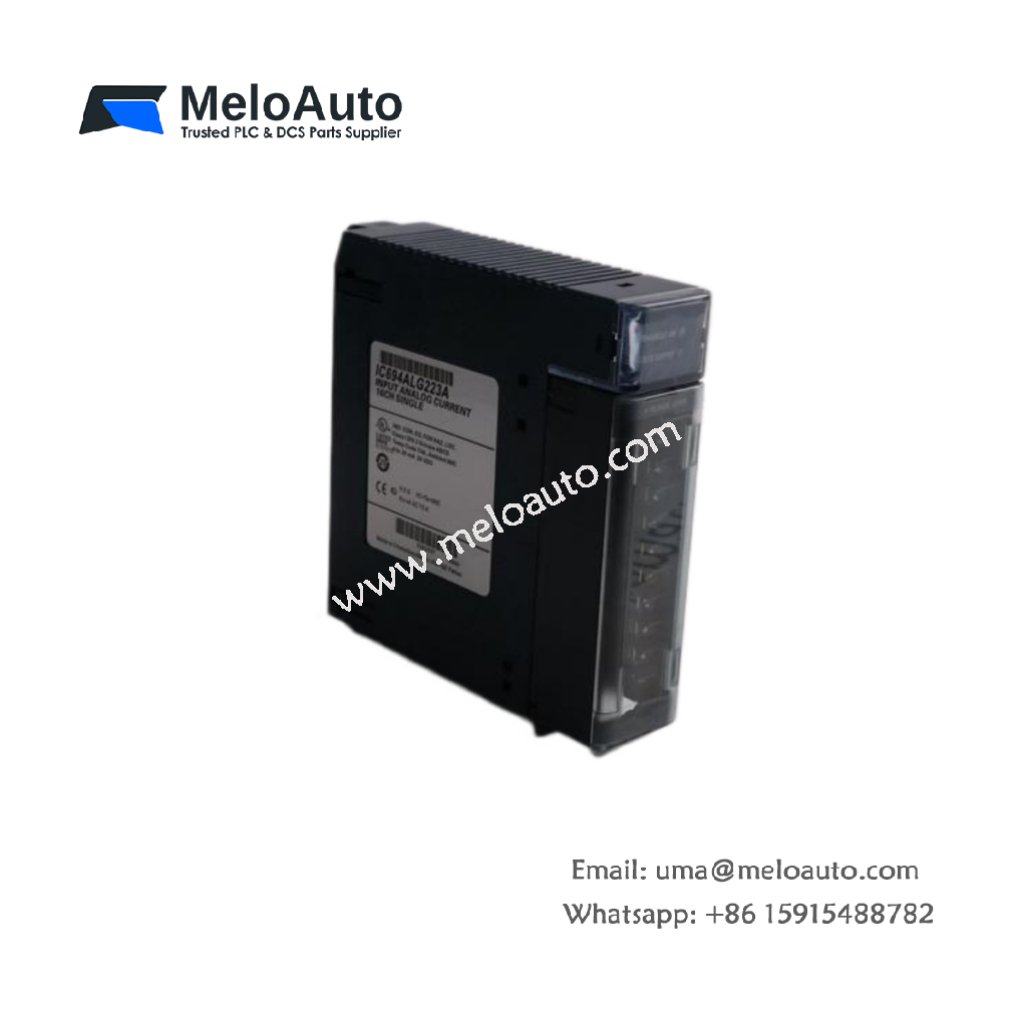

GE IC694ALG223 Analog Current Input Module

The GE IC694ALG223 Analog Current Input Module is a versatile and reliable component from General Electric (GE). It seamlessly integrates with the GE IC694 system, allowing you to collect and process accurate data from various field devices. Designed for precision, this module plays a crucial role in industrial control systems by providing high-quality signal acquisition.

Key Features of GE IC694ALG223

Manufacturer: General Electric (GE)
Model Number: IC694ALG223
Product Line: GE IC694
Product Type: Analog Current Input Module
Application: Collects analog current inputs from various field devices to transmit data to the central control system.

The GE IC694ALG223 Analog Current Input Module is specifically designed to ensure high accuracy and stability in dynamic industrial environments. It processes analog current signals efficiently, allowing your automation systems to function optimally.

Technical Specifications

Parameter	Specification
Model Number	IC694ALG223
Manufacturer	General Electric (GE)
Product Type	Analog Current Input Module
Input Type	4-20 mA Current Input
Channels	8 Channels
Power Supply	24 VDC
Input Range	4-20 mA
Accuracy	±0.1% of Full Scale
Isolation	1500 VDC for 1 minute
Current Consumption	100 mA max
Dimensions	5.75 x 4.0 x 1.5 in (146 x 102 x 38 mm)
Weight	0.48 lbs (0.22 kg)
Operating Temperature	-20°C to 60°C
Mounting	Rack Mounted

Features and Benefits

Multiple Input Channels: The GE IC694ALG223 features 8 input channels, allowing you to connect multiple field devices. This flexibility enhances the overall system performance, making it suitable for various industrial applications.
High Accuracy: With ±0.1% accuracy, this module ensures precise signal processing. Consequently, your automation systems can perform reliably, meeting the highest standards of performance.
Wide Input Range: The module supports a 4-20 mA input range, making it compatible with a wide array of field devices. This versatility ensures that you can easily integrate it into your existing system without compatibility issues.
Electrical Isolation: The 1500 VDC isolation feature helps protect the module and the system from voltage spikes. This significantly enhances system reliability and reduces the risk of damage to sensitive components.
Compact and Lightweight: At just 5.75 x 4.0 x 1.5 inches, the GE IC694ALG223 module is compact and easy to install in tight spaces. Its lightweight design also makes handling and installation much easier.

Applications

The GE IC694ALG223 Analog Current Input Module is ideal for industries requiring precise data acquisition and signal transmission. Common applications include process automation, control systems, and monitoring of various industrial systems. Its 8 input channels allow for easy connection to sensors and transmitters, making it highly efficient for real-time data processing.

Why Choose the GE IC694ALG223?

Reliable Data Acquisition: The GE IC694ALG223 ensures accurate and stable current input readings, which are essential for precise control and automation in industrial environments.
Robust Performance: Designed for durability, the module operates effectively in a wide temperature range of -20°C to 60°C, ensuring continuous performance even in challenging conditions.
Ease of Integration: With its rack-mounted design, the GE IC694ALG223 integrates smoothly into your existing GE IC694 automation system. It also utilizes the standard 24 VDC power supply, simplifying installation and configuration.
Manufactured by GE: As a trusted product from General Electric (GE), this module offers long-lasting reliability and exceptional support, backed by decades of expertise in industrial automation.

Conclusion

The GE IC694ALG223 Analog Current Input Module is an essential component for any industrial automation system requiring reliable and accurate current input measurements. Its advanced features, high precision, and ease of integration make it an excellent choice for enhancing your control system’s performance.
