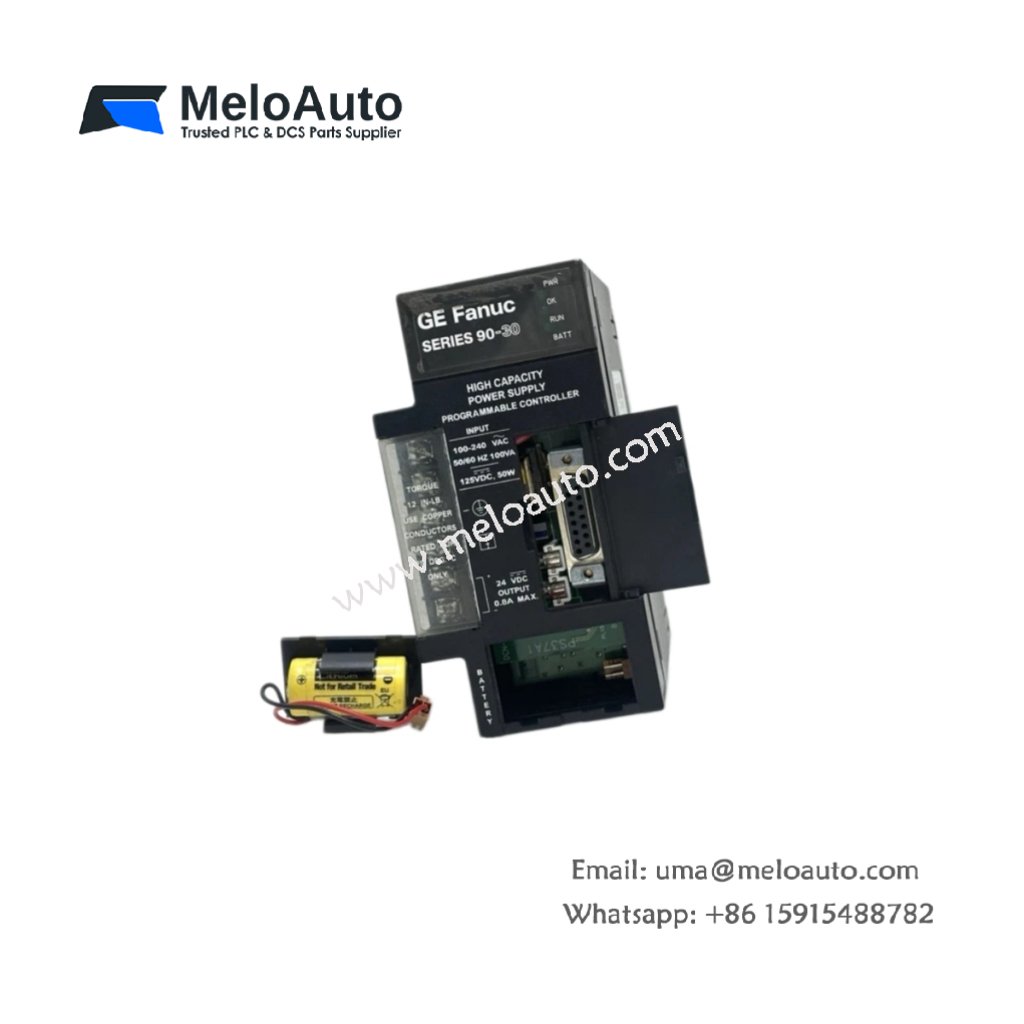

GE IC693PWR330H High-Capacity Power Supply

The IC693PWR330H is a robust high-capacity power supply module from the renowned GE Fanuc Series 90-30 platform. Engineered to provide reliable power to industrial automation systems, this module offers exceptional performance with a variety of input and output configurations. Designed for both AC and DC applications, the IC693PWR330H delivers power across multiple voltage levels, making it a versatile choice for different industrial setups.

Key Technical Specifications

The following table highlights the critical technical parameters of the IC693PWR330H:

Parameter	Value
Manufacturer	GE Fanuc (Emerson)
Product Type	High-capacity Power Supply
Product Line	Series 90-30
Part Number	IC693PWR330H
Weight	1.25 lbs (0.57 kg)
Series	Series 90-30 PLC
Protocol Support	RS485
Number of Outputs	3
Nominal Rated Voltage	120/240 VAC or 125 VDC
AC Input Voltage Range	85 to 264 VAC
DC Input Voltage Range	100 to 300 VDC
Input Power	90 VA (VAC Input), 50 W (VDC Input)
Inrush Current	4A peak, 250 milliseconds maximum
Output Voltage	5 VDC (5.0 to 5.2 VDC), 24 VDC
Output Power	30W (5 VDC), 15W (24 VDC Relay), 20W (24 VDC Isolated)
Holdup Time	20 milliseconds minimum

Detailed Features and Benefits

The IC693PWR330H provides an ideal solution for industrial applications that require stable and consistent power. It features three separate outputs: a 5VDC output, a 24VDC relay output, and an isolated 24VDC output. Each output is tailored to meet the needs of specific industrial devices, ensuring compatibility and flexibility across various systems.

Versatile Input Range: It supports both 120/240 VAC and 125 VDC input voltage, making it suitable for a wide range of environments.
Efficient Power Distribution: The power supply delivers 30 watts at 5 VDC, 20 watts at isolated 24 VDC, and 15 watts at 24 VDC relay, ensuring optimal performance for your automation equipment.
High Reliability: With a minimum holdup time of 20 milliseconds, the IC693PWR330H ensures that your system remains powered during brief power interruptions.

The IC693PWR330H is a dependable power supply that ensures your automation processes remain uninterrupted and efficient, supporting various communication protocols, including RS485.

Usage and Applications

The IC693PWR330H is widely used in industrial automation systems, particularly within PLC environments. It is especially valuable in systems where different voltage requirements are essential for different components, such as sensors, controllers, and actuators.
